The Vacuum Modular Kit HML is a flexible, ready-to-use solution for end-of-arm tooling (EOAT) applications requiring vacuum pickup. Designed to eliminate the need for custom EOAT design, this modular kit allows direct mounting onto existing EOAT systems, enabling rapid deployment and reducing setup time without engineering overhead.
The kit is constructed from high-strength aluminum with a curved edge trim that enhances structural integrity while minimizing weight. The modular components include flange, main guide, and vacuum pad guide types, all available in two different lengths for both the main guide and vacuum pad guide, enabling free combination to suit specific application needs.

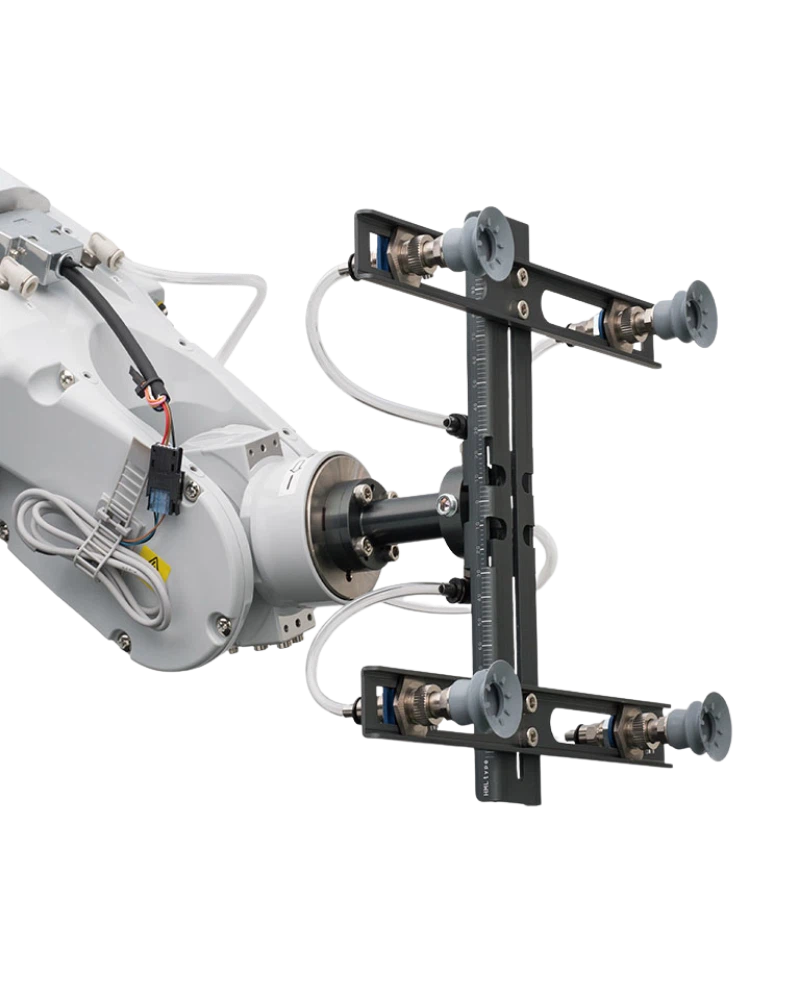

The kit features a standardized interface allowing direct mounting onto EOAT systems. A 'robot flange converting attachment' is available to connect the kit with robots from different manufacturers, ensuring compatibility across various robotic platforms. This setup is specifically designed for robots with a weight capacity of approximately 6 kgs or less.
The vacuum pad guide includes a scale for precise positioning during assembly, ensuring consistent alignment and reliable operation. The modular design supports up to a maximum of 16 vacuum pads, which can be mounted directly onto the kit without additional components or custom fabrication.
Available in two lengths for both main guide and vacuum pad guide, combined with two types each for flange, main guide, and vacuum pad guide, this results in eight distinct combinations. This flexibility allows users to tailor the configuration to match specific workpiece dimensions and handling requirements without redesigning the entire EOAT system.
The kit integrates directly with existing EOAT systems through its standardized mounting interface. The curved aluminum edge trim provides secure attachment while maintaining a lightweight profile, and the modular components are designed for easy installation and reconfiguration on robotic arms.
| Specification | Details |
|---|
