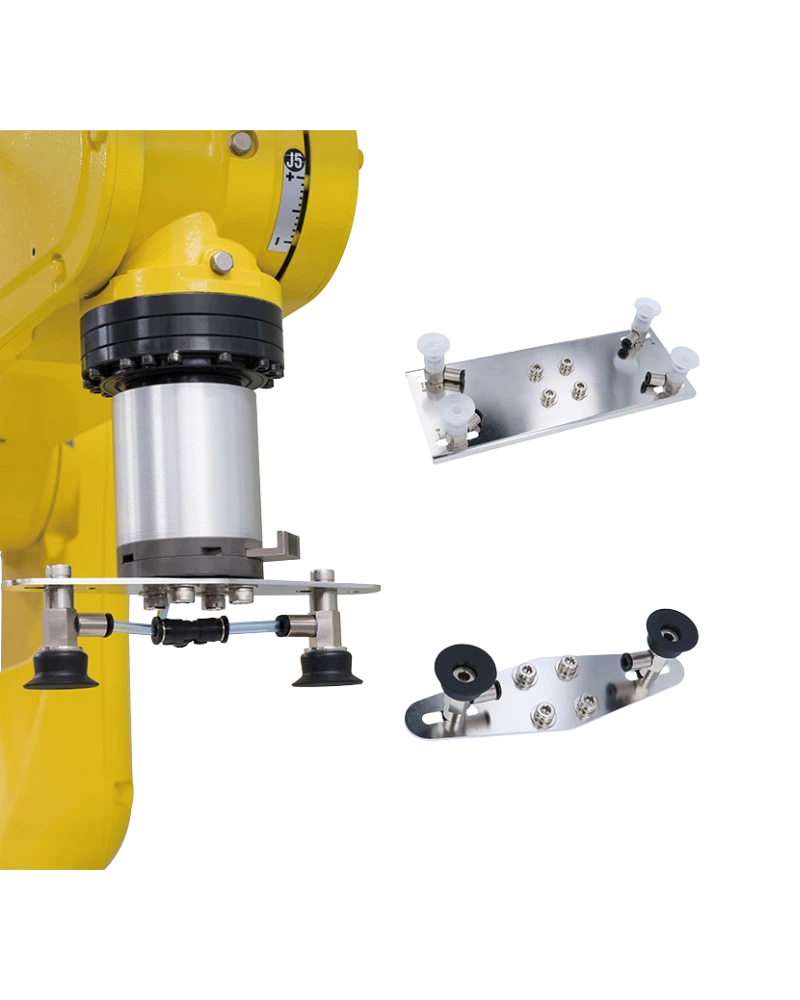

The PISCO Robotic Arm Plate is a robot flange mounting plate used as an interface between a robotic arm and PISCO end-of-arm tooling (EOAT) equipment. It provides a practical mounting connection for vacuum handling equipment used in robotic pick-and-place and material-transfer applications.
The mounting-plate system is designed for connection to robot flange patterns used with PISCO robot accessories. PISCO documentation identifies robot flange mounting arrangements including P.C.D. 31.5 and other robot-specific flange interfaces, with conversion flanges available where required for individual robot manufacturers.
The plate forms part of PISCO's EOAT system for connecting vacuum grippers, vacuum generators and related robot accessories to a robotic arm. PISCO's robot accessory documentation shows the flange mounting plate used together with vacuum grippers and other EOAT equipment for automated workpiece handling.
For the VLG general-purpose vacuum gripper system, PISCO specifies a robot arm flange mounting plate as a separate mounting component. The mounting-plate option is designated according to the VLG mounting configuration, with single and double mounting arrangements available.
The VLG robot arm flange mounting plate is identified by order number VLG-RFP-S for the single-type mounting configuration. PISCO documentation also identifies the corresponding double-type arrangement and provides dimensional codes for the mounting configuration. The robot arm flange mounting plate does not support the 500 mm and 600 mm VLG lengths, corresponding to dimension codes 50S, 50D, 60S and 60D.
The mounting plate is intended for robotic material-handling systems where a vacuum gripper or other EOAT equipment must be securely interfaced with the robot arm. It is suitable for automated pick-and-place, packing and palletizing applications using PISCO robot accessory equipment.
The plate is used with PISCO robot accessory solutions including vacuum grippers and EOAT components. PISCO's documentation also shows robot flange mounting plates used with vacuum gripper systems and robot-specific conversion arrangements.
| Specification | Details |
|---|---|
| Product type | Robot arm flange mounting plate |
| Application | Mounting interface for PISCO robot accessories / EOAT |
| Related system | VLG general-purpose vacuum gripper |
| Single-type order number | VLG-RFP-S |
| Single-type mounting width | 50 mm |
| Double-type mounting width | 100 mm |
| Supported VLG length | 200 mm, 300 mm, 400 mm |
| Unsupported VLG length | 500 mm and 600 mm |
| Unsupported dimension codes | 50S, 50D, 60S, 60D |
| Robot flange interface | PISCO robot flange mounting interface; robot-specific conversion flange may be required depending on robot |
| EOAT use | Connection of vacuum handling equipment to robotic arm |
| Mounting configuration | Single type / Double type |
