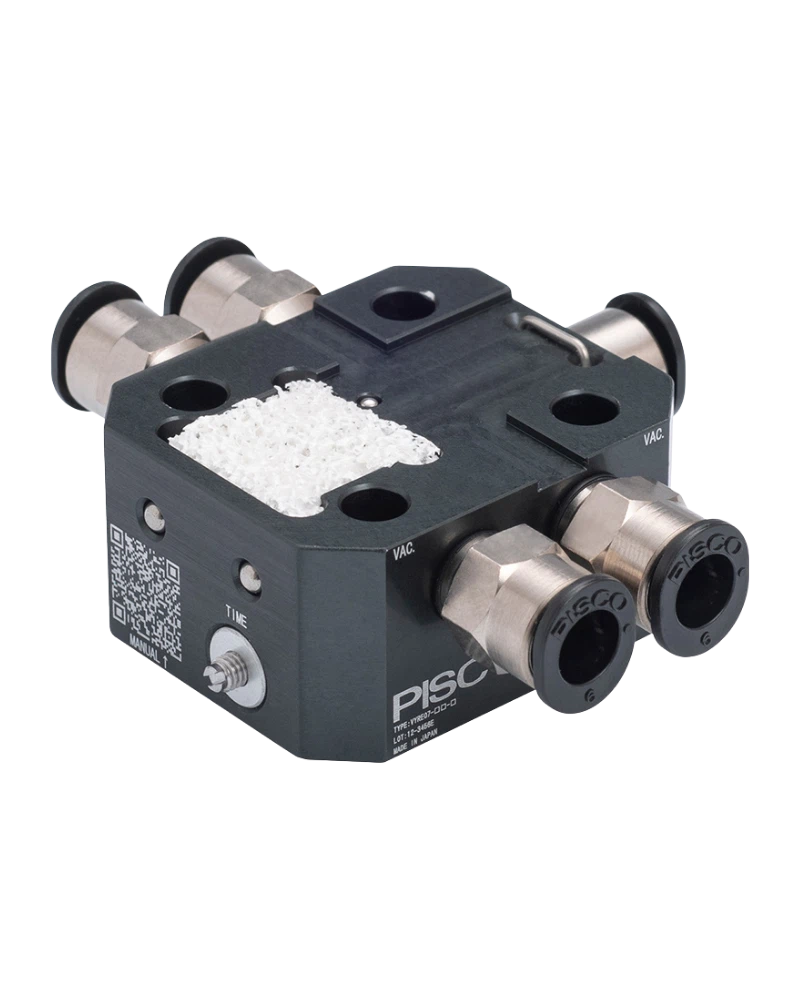

The VYR Vacuum Generator is a compact, high-performance vacuum device designed for direct mounting on end-of-arm tooling (EOAT) systems. It provides reliable suction and blow-off capabilities in robotic applications, enabling precise material handling, part positioning, and cleaning tasks without the need for external piping or complex setups.
The unit is constructed from durable industrial materials to ensure robust performance under continuous operation. The body features a P.C.D. 31.5 mounting interface, allowing direct attachment to EOAT components. All nozzle configurations are precision-machined to maintain consistent flow and sealing characteristics.
The VYR offers two distinct nozzle bore configurations: 0.5mm and 0.7mm (height 20mm) and 1.0mm and 1.2mm (height 28mm). Each configuration is designed for specific application needs, with the blow-off function integrated as standard. Connection is achieved via a direct P.C.D. 31.5 mounting interface on the base of the unit.
The vacuum generator delivers a high-speed suction and blow-off cycle, optimized for fast response times in automated processes. The maximum vacuum flow rate is not specified, but the device operates with noise levels below 65dB[A] for 0.5mm and 0.7mm nozzles and below 75dB[A] for 1.0mm and 1.2mm nozzles (as measured by our factory). Blow-off can be performed without dedicated blow-off piping, using an adjustable needle to control flow rate and duration.
Available in multiple body sizes: φ3mm, φ4mm, φ6mm for the 0.5mm/0.7mm nozzle types; φ4mm, φ6mm, φ8mm for the 1.0mm/1.2mm types; and φ4mm, φ6mm for smaller variants; φ6mm, φ8mm for larger configurations. The product is offered in a single standard color (typically black), with no variation in finish or design across models.
The VYR Vacuum Generator is specifically engineered for direct integration into robotic arm systems via its P.C.D. 31.5 mounting interface, enabling secure and stable attachment to EOAT. This eliminates the need for additional brackets or adapters, simplifying installation and ensuring precise alignment with robotic motion axes.
| Specification | Details |
|---|---|
| mm size (mm) | φ3mm, φ4mm, φ6mm | φ4mm, φ6mm, φ8mm | φ4mm, φ6mm | φ6mm, φ8mm |
| Technical detail | Can be mounted directly to EOAT with P.C.D. 31.5 |
| Nozzle configuration | Extra storage chamber of blow-off air can be added by connecting a tubing with a plug cap. (Only for nozzle bore of 1.0mm & 1.2mm type.) |
| Noise level | Nozzle bore 0.5mm & 0.7mm type: below 65dB[A], Nozzle bore 1.0mm & 1.2mm type: below 75dB[A]. (by our factory simple measurement) |
| Pressure sensor configuration | Pressure sensor can be installed. (Max. 3 ports after pressure sensor installed.) |
| Construction / connection | Built-in blow-off air storage chamber |
