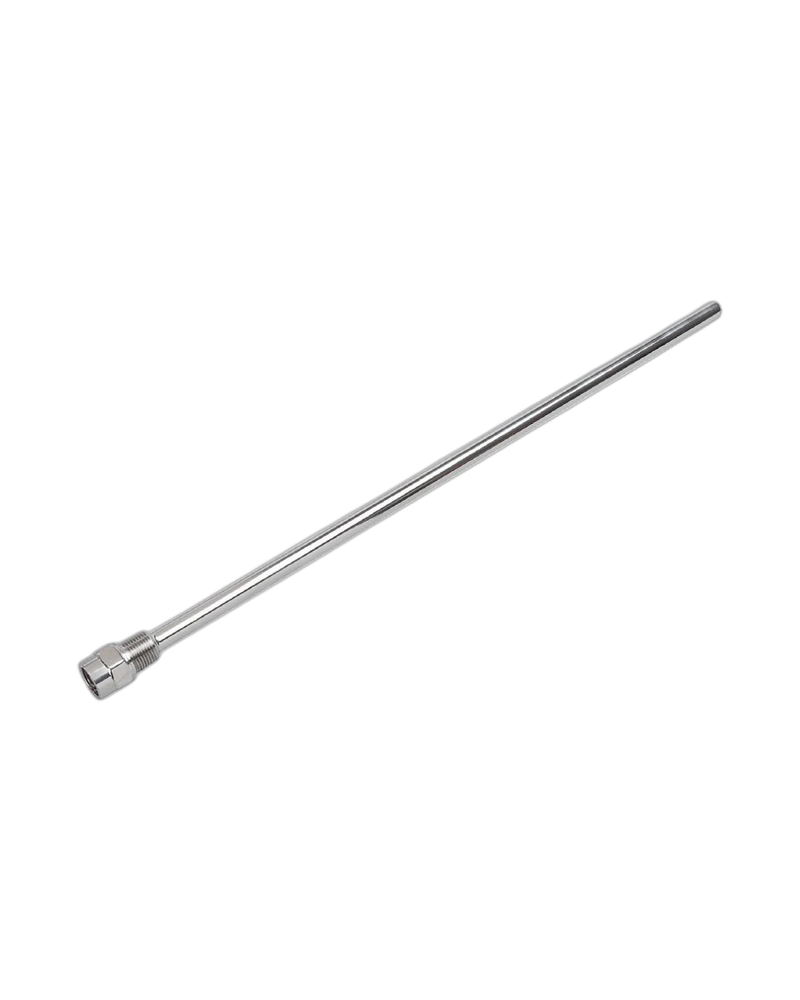

The IFM UT0012 is a long stainless-steel thermowell designed for temperature sensors with a 500 mm element length. It uses a 10 mm sensor connection and 1/2" NPT process connection. The thermowell has a 16 bar or 1.6 MPa pressure rating for suitable industrial process applications. Its 472 mm probe length provides deep insertion into tanks, vessels and process lines. The 250.5 g stainless-steel construction provides durable sensor protection and allows sensor replacement without removing the thermowell.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The UT0012 is designed for temperature sensors requiring a 500 mm element length. Its 472 mm probe length allows the sensor to reach deeper into process equipment. The stainless-steel construction protects the sensing element from direct process exposure. This can extend sensor serviceability in demanding process conditions. The thermowell remains installed while the compatible sensor can be serviced.
The UT0012 has a pressure rating of 16 bar or 1.6 MPa. Its process connection is 1/2" NPT, providing a threaded process interface. The sensor connection is also 1/2" NPT with a 10 mm diameter specification. This configuration provides a secure mechanical connection for compatible temperature measurement systems. The long probe geometry is suitable for deeper process measurement points.
The thermowell uses stainless steel 1.4401 / AISI 316. This material provides corrosion resistance for many industrial applications. The 250.5 g weight reflects the larger construction required for the 500 mm sensor arrangement. The component is supplied as one piece. It is suitable for process equipment where temperature sensors need mechanical and media protection.
500 mm sensor element design
10 mm sensor diameter
472 mm probe length
1/2" NPT sensor connection
1/2" NPT process connection
16 bar pressure rating
1.6 MPa pressure rating
Stainless steel 1.4401
AISI 316 construction
250.5 g weight
Long thermowell design
Process sensor protection
Deep insertion capability
Sensor replacement without thermowell removal
Industrial process construction
Deep-tank temperature measurement
Process vessels
Industrial pipelines
Chemical processing
Food processing
Heating systems
Process automation
Temperature monitoring
Pressurised process equipment
Industrial temperature sensing
The 472 mm probe length allows the temperature sensor to reach deep into process equipment. This is useful for tanks and vessels where the measurement point is far from the mounting connection. The long thermowell protects the sensor along its insertion path. The 10 mm sensor diameter accommodates the intended temperature sensor configuration. This provides a practical solution for deep process temperature monitoring.
The thermowell provides a permanent protective barrier between the sensor and process medium. A compatible temperature sensor can be replaced without removing the thermowell from the process connection. This reduces maintenance work and helps preserve process integrity. The stainless-steel construction supports long-term industrial service. The 16 bar rating supports suitable pressurised applications.
| Specification | UT0012 Details |
|---|---|
| Order number | UT0012 |
| Product | Thermowell |
| Product designation | THERMOWELL, 10MMx500MM, 1/2NPT |
| Product category | Thermowell |
| Sensor type | Temperature sensor |
| Sensor element length | 500 mm |
| Sensor diameter | 10 mm |
| Probe length | 472 mm |
| Sensor connection | 1/2" NPT |
| Process connection | 1/2" NPT |
| Pressure rating | 16 bar |
| Pressure rating MPa | 1.6 MPa |
| Material | Stainless steel |
| Material grade | 1.4401 |
| Material designation | AISI 316 |
| Weight | 250.5 g |
| Construction | Protective thermowell |
| Sensor protection | Yes |
| Process isolation | Yes |
| Sensor replacement | Without thermowell removal |
| Mounting type | Threaded |
| Process interface | NPT |
| Sensor interface | NPT |
| Probe construction | Stainless steel |
| Application | Industrial process |
| Measurement function | Temperature sensing |
| Installation | Process mounting |
| Pack quantity | 1 piece |
| Mechanical function | Sensor protection |
| Manufacturer | IFM electronic |
