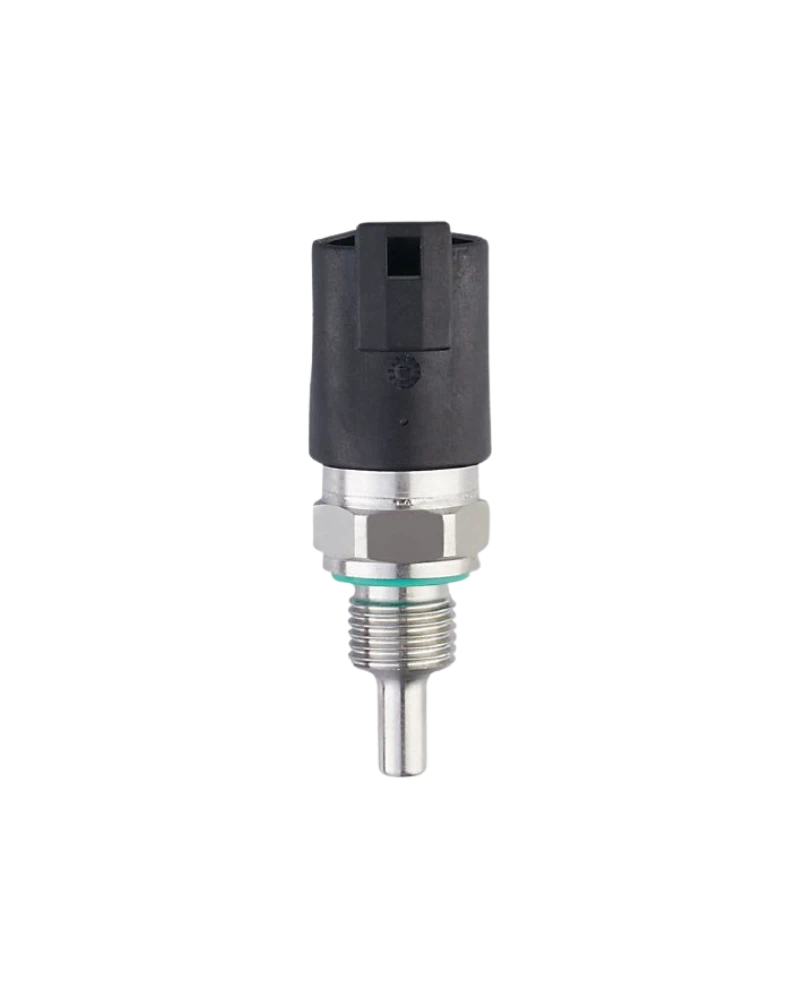

The TM6101 is a Pt1000 temperature sensor designed for compact industrial temperature measurement. It uses a G 1/4 external threaded process connection with a 25 mm installation length. The Class A Pt1000 element provides accurate measurement from -40 to 150 °C. Its stainless-steel construction and IP68/IP69K protection provide durability in demanding environments. The DEUTSCH DT04-3P connector is suited to robust industrial and mobile-machine electrical integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM6101 provides the same compact sensing concept as the industrial TM5101 family while using a DEUTSCH electrical connector. Its 25 mm installation length supports compact installation. The Pt1000 Class A element provides reliable temperature measurement. The G 1/4 process connection is suitable for compatible fittings. The sensor is designed for liquids and gases.
The sensor operates from -40 to 150 °C. The Pt1000 element follows DIN EN 60751 Class A. Its 12 mm probe length supports rapid thermal response. T05/T09 response is approximately 1/3 seconds. The sensor is suitable for continuous temperature monitoring.
The G 1/4 external thread provides compact process integration. The DEUTSCH DT04-3P connector is suitable for robust electrical installations. The 25 mm installation length minimizes mounting requirements. The sensor can be connected to suitable evaluation equipment. Its design is useful for industrial and mobile applications.
The sensor supports a 400 bar pressure rating. Stainless-steel 316L construction provides mechanical durability. FKM is used in the wetted sealing construction. IP68/IP69K protection supports demanding environmental conditions. Shock and vibration resistance support machinery applications.
The DEUTSCH connector supports secure field wiring and service replacement. The threaded process connection should be checked for sealing and mechanical integrity. The probe should be kept clean for consistent thermal response. Routine inspection supports long-term sensor performance. Correct installation helps maintain measurement accuracy.
Pt1000 Class A
-40...150 °C range
25 mm installation length
G 1/4 external thread
400 bar pressure rating
6 mm probe
316L stainless steel
FKM sealing material
IP68/IP69K
DEUTSCH DT04-3P connector
Fast response
Robust industrial construction
Mobile machinery
Industrial machinery
Factory automation
Hydraulic equipment
Process equipment
Engine monitoring
Temperature monitoring
Thermal systems
Machine control
Industrial instrumentation
Equipment diagnostics
Process automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM6101 |
| 2 | Product Family | Industrial RTD Sensors |
| 3 | Product Type | Screw-in temperature sensor |
| 4 | Model Designation | TM-025KCBR14- /DE/ |
| 5 | Measuring Element | 1 x Pt1000 |
| 6 | Sensor Class | Class A |
| 7 | Measuring Range | -40...150 °C |
| 8 | Fahrenheit Range | -40...302 °F |
| 9 | Process Connection | G 1/4 external thread |
| 10 | Installation Length | 25 mm |
| 11 | Probe Length | 12 mm |
| 12 | Probe Diameter | 6 mm |
| 13 | Media | Liquids and gases |
| 14 | Pressure Rating | 400 bar |
| 15 | Minimum Installation Depth | 15 mm |
| 16 | Accuracy | ±(0.15 K + 0.002 × |
| 17 | Dynamic Response | 1 / 3 s |
| 18 | Ambient Temperature | -25...80 °C |
| 19 | Storage Temperature | -40...100 °C |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Protection Class | III |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Wetted Material | Stainless steel 316L / FKM |
| 24 | Electrical Connection | DEUTSCH DT04-3P |
| 25 | Connector Configuration | Robust automotive-style connector |
