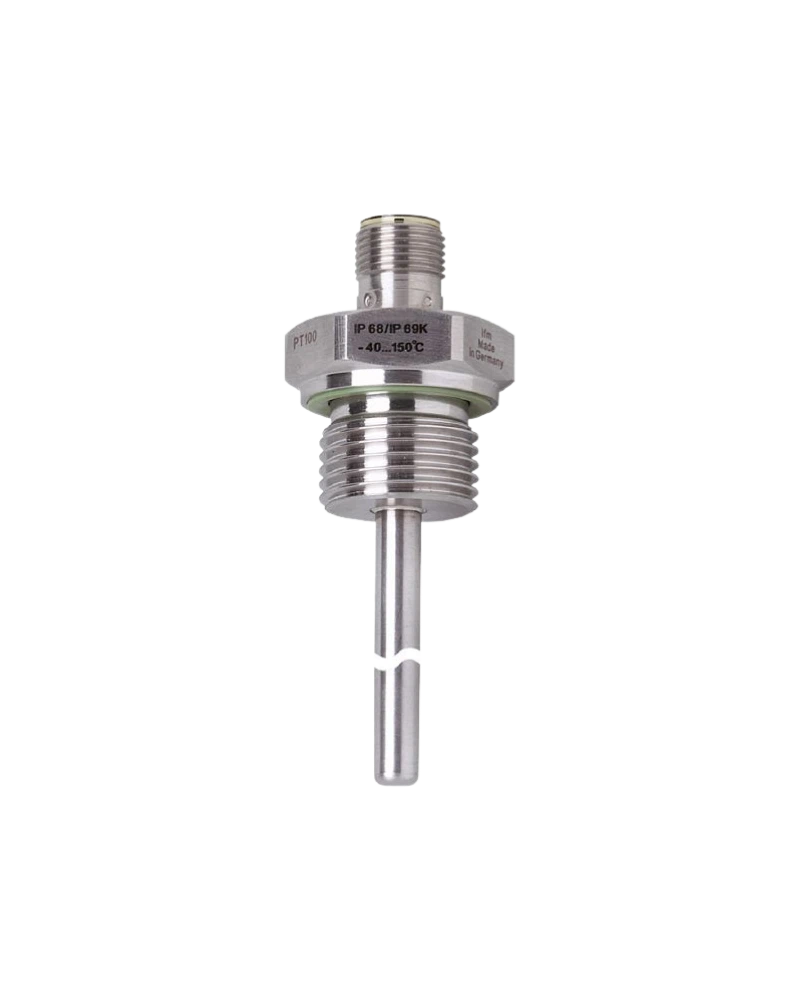

The TM5411 is a robust Pt1000 temperature sensor designed for industrial process temperature measurement. It uses a G 1/2 external threaded process connection and provides a 50 mm installation length. The Class A Pt1000 element delivers reliable temperature measurement from -40 to 150 °C. Stainless-steel 316L construction with FKM wetted sealing material supports demanding applications. IP68/IP69K protection and an M12 connection make the sensor suitable for industrial automation and process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM5411 is designed for medium-depth temperature measurement in process systems. Its 50 mm probe length provides suitable immersion for many industrial applications. The Pt1000 element provides stable and accurate resistance-based sensing. The G 1/2 process connection supports secure installation. The sensor is suitable for liquids and gases.
The sensor covers -40 to 150 °C. The Pt1000 Class A element follows DIN EN 60751. The probe is designed for rapid response to process temperature changes. T05/T09 dynamic response is approximately 1/3 seconds. The sensor supports continuous process monitoring.
The G 1/2 external thread provides a robust process interface. Its 50 mm installation length supports moderate process immersion. The M12 connector provides convenient electrical integration. Gold-plated contacts support connection reliability. Suitable evaluation equipment can process the RTD signal.
The sensor supports a 160 bar pressure rating. Stainless-steel 316L construction provides corrosion resistance. FKM is used in the wetted sealing arrangement. IP68/IP69K protection supports demanding wet environments. Shock and vibration resistance support industrial machinery applications.
The M12 connector supports quick service replacement. Process thread and sealing components should be inspected periodically. The probe should be kept clean to maintain thermal transfer. Mechanical mounting torque should be controlled according to installation requirements. Regular inspection helps maintain stable process measurement.
Pt1000 Class A
50 mm installation length
-40...150 °C range
G 1/2 external thread
160 bar pressure rating
6 mm probe diameter
316L stainless steel
FKM wetted seal
IP68/IP69K
M12 connector
Gold-plated contacts
Fast response
Industrial machinery
Process pipelines
Tanks and vessels
Hydraulic equipment
Pumps
Compressors
Liquid temperature monitoring
Gas temperature monitoring
Factory automation
Process control
Thermal monitoring
Industrial instrumentation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM5411 |
| 2 | Product Family | Industrial RTD Sensors |
| 3 | Product Type | Screw-in temperature sensor |
| 4 | Model Designation | TM-050KCBR12- /US/ |
| 5 | Measuring Element | 1 x Pt1000 |
| 6 | Sensor Class | Class A |
| 7 | Measuring Range | -40...150 °C |
| 8 | Fahrenheit Range | -40...302 °F |
| 9 | Process Connection | G 1/2 external thread |
| 10 | Installation Length | 50 mm |
| 11 | Probe Length | 36 mm |
| 12 | Probe Diameter | 6 mm |
| 13 | Media | Liquids and gases |
| 14 | Pressure Rating | 160 bar |
| 15 | Minimum Installation Depth | 15 mm |
| 16 | Accuracy | ±(0.15 K + 0.002 × |
| 17 | Dynamic Response | 1 / 3 s |
| 18 | Ambient Temperature | -25...80 °C |
| 19 | Storage Temperature | -40...100 °C |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Protection Class | III |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Wetted Material | Stainless steel 316L / FKM |
| 24 | Electrical Connection | M12, A-coded |
| 25 | Connector Contacts | Gold-plated |
