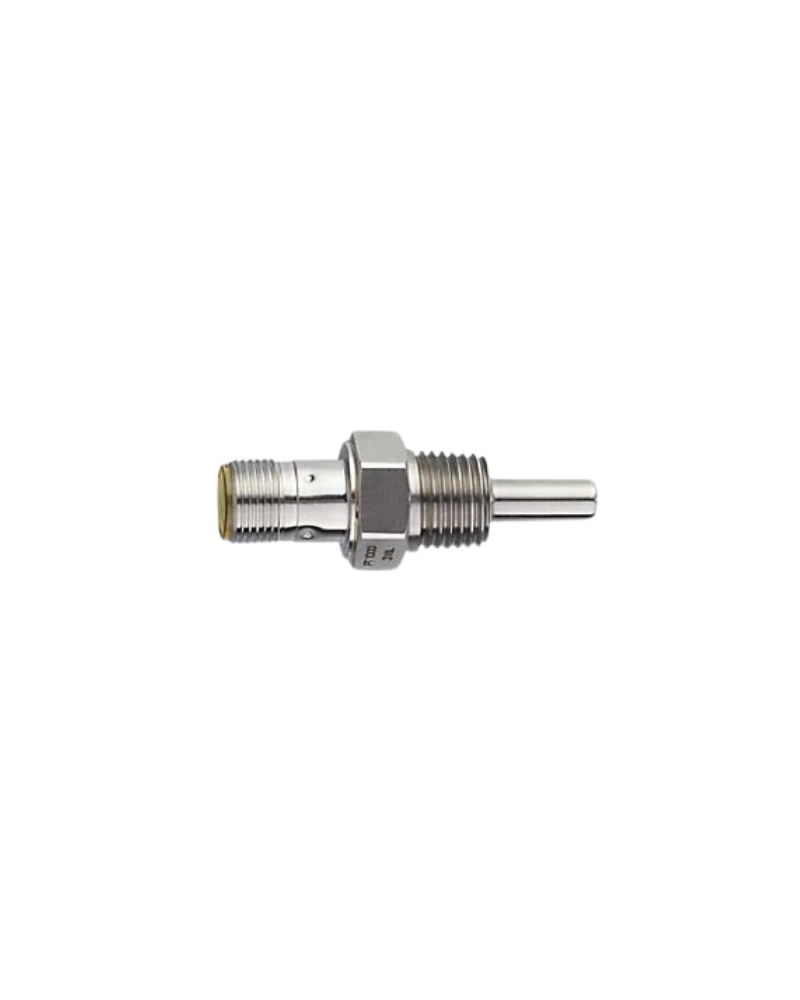

The TM5601 is a compact Pt1000 temperature sensor with a 1/4 inch NPT external threaded process connection. It provides a 25 mm installation length and is designed for accurate temperature measurement from -40 to 150 °C. The Class A Pt1000 element provides stable resistance-based measurement with fast dynamic response. Its stainless-steel housing and IP68/IP69K protection support demanding industrial environments. The M12 connection allows convenient integration with compatible evaluation and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM5601 is suited to compact industrial temperature measurement applications. Its short installation length minimizes required mounting space. The Pt1000 sensing element provides accurate and repeatable temperature measurement. The NPT thread supports common industrial process connections. The sensor is suitable for liquid and gaseous media.
The measuring range is -40 to 150 °C. The Pt1000 element is Class A according to DIN EN 60751. Its compact probe design supports rapid response. T05/T09 dynamic response is approximately 1/3 seconds. The sensor can continuously monitor process temperature.
The 1/4 inch NPT external thread enables installation into compatible industrial fittings. The 25 mm installation length is suitable for compact mounting points. M12 connectivity simplifies wiring. Gold-plated contacts support reliable electrical connection. Suitable evaluation equipment can be used for process temperature monitoring.
The sensor provides a 400 bar pressure rating. Stainless-steel 316L construction provides mechanical strength. IP68/IP69K protection supports wet and washdown environments. Shock and vibration resistance support industrial applications. The compact housing is suitable for machinery and process equipment.
The M12 connector makes sensor replacement convenient. The NPT process connection should be inspected for correct sealing. The probe should be kept clean to maintain thermal response. Regular inspection helps prevent mechanical and process connection issues. Correct mounting improves long-term measurement stability.
Pt1000 Class A
-40...150 °C range
25 mm installation length
1/4 inch NPT thread
400 bar pressure rating
6 mm probe
316L stainless steel
IP68/IP69K
M12 connector
Gold-plated contacts
Fast response
Compact construction
Industrial machinery
Factory automation
Hydraulic equipment
Pumps
Compressors
Process equipment
Liquid temperature monitoring
Gas temperature monitoring
Mobile machinery
Thermal monitoring
Process control
Equipment diagnostics
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM5601 |
| 2 | Product Family | Industrial RTD Sensors |
| 3 | Product Type | Compact screw-in sensor |
| 4 | Model Designation | TM-025KCBN14- /US/ |
| 5 | Measuring Element | 1 x Pt1000 |
| 6 | Sensor Class | Class A |
| 7 | Measuring Range | -40...150 °C |
| 8 | Fahrenheit Range | -40...302 °F |
| 9 | Process Connection | 1/4" NPT external thread |
| 10 | Installation Length | 25 mm |
| 11 | Probe Length | 15 mm |
| 12 | Probe Diameter | 6 mm |
| 13 | Media | Liquids and gases |
| 14 | Pressure Rating | 400 bar |
| 15 | Minimum Installation Depth | 15 mm |
| 16 | Accuracy | ±(0.15 K + 0.002 × |
| 17 | Dynamic Response | 1 / 3 s |
| 18 | Ambient Temperature | -25...80 °C |
| 19 | Storage Temperature | -40...100 °C |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Protection Class | III |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Wetted Material | Stainless steel 316L |
| 24 | Electrical Connection | M12, A-coded |
| 25 | Connector Contacts | Gold-plated |
