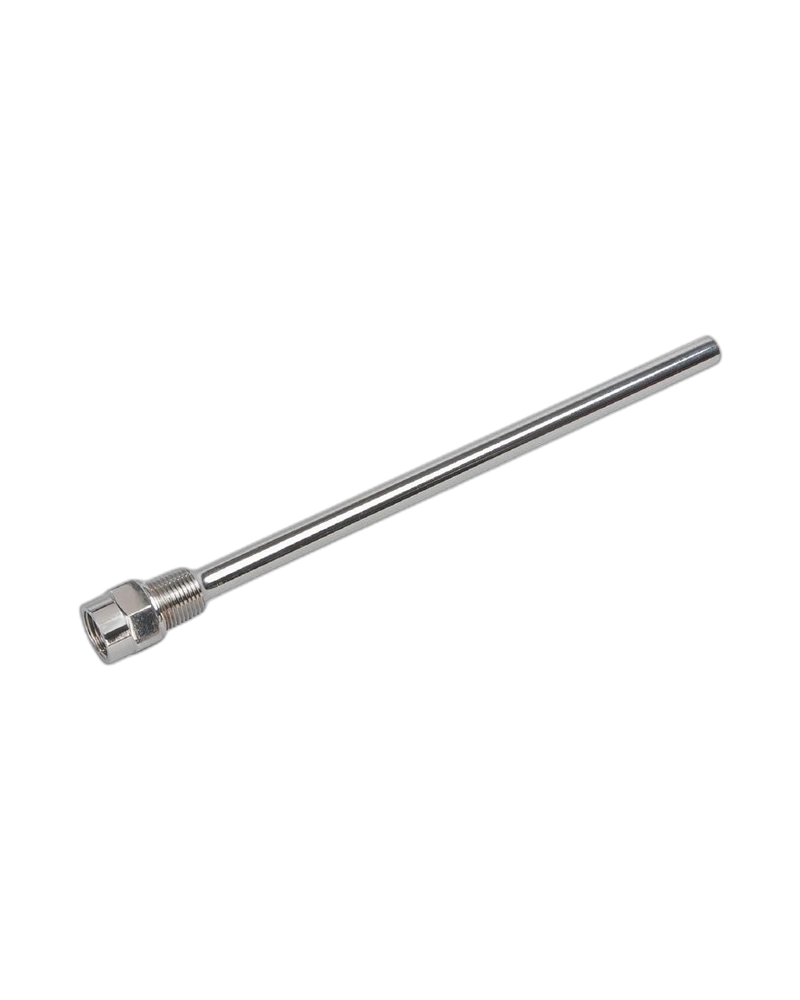

The IFM UT0011 is a stainless-steel thermowell designed to protect temperature sensors in industrial processes. It is designed for temperature sensors with a 300 mm element length and a 10 mm sensor diameter. The thermowell provides a 1/2" NPT sensor connection and a matching 1/2" NPT process connection. Its pressure rating is 16 bar or 1.6 MPa. The 181.44 g stainless-steel construction allows the temperature sensor to be replaced while the thermowell remains installed.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The UT0011 provides a protective barrier around the temperature sensor element. It helps shield the sensor from direct contact with aggressive process media. The thermowell also allows the temperature sensor to be removed without disturbing the process connection. Its 10 mm internal sensor connection is designed for compatible temperature probes. This improves maintainability in industrial temperature measurement systems.
The thermowell has a pressure rating of 16 bar or 1.6 MPa. Both the sensor connection and process connection use 1/2" NPT interfaces. The 272 mm probe length provides the specified insertion dimension for the 300 mm sensor element. This configuration allows the temperature sensor to reach the required measurement location within the process. The threaded process connection provides a secure mechanical installation.
The UT0011 is manufactured from stainless steel 1.4401 / AISI 316. This material provides corrosion resistance for many industrial process environments. The 181.44 g construction provides a robust protective sleeve around the temperature sensor. Its long probe geometry supports measurement in tanks, vessels and process piping. The component is supplied as one piece for installation with compatible temperature sensors.
Thermowell for temperature sensors
300 mm sensor element design
10 mm sensor diameter
1/2" NPT sensor connection
1/2" NPT process connection
16 bar pressure rating
1.6 MPa pressure rating
272 mm probe length
Stainless steel 1.4401
AISI 316 construction
181.44 g weight
Protective sensor sleeve
Process isolation
Sensor replacement without process removal
Industrial temperature protection
Process temperature measurement
Industrial tanks
Process vessels
Pipe temperature monitoring
Chemical equipment
Food processing equipment
Industrial heating systems
Process automation
Temperature sensor protection
Maintenance-friendly temperature measurement
The thermowell separates the temperature sensor from direct process exposure. This helps protect the sensor from aggressive media and mechanical process conditions. The 16 bar pressure rating supports suitable pressurised applications. The stainless-steel construction provides corrosion resistance. This makes the UT0011 useful for industrial process temperature measurement.
A thermowell allows the temperature sensor to be removed while leaving the process connection installed. This can simplify maintenance and sensor replacement. The 1/2" NPT interface provides a standard threaded connection for compatible equipment. The 272 mm probe length provides the required insertion depth. The result is a more serviceable temperature measurement arrangement.
| Specification | UT0011 Details |
|---|---|
| Order number | UT0011 |
| Product | Thermowell |
| Product designation | THERMOWELL, 10MMx300MM, 1/2NPT |
| Product category | Thermowell |
| Sensor application | Temperature sensor |
| Sensor element length | 300 mm |
| Sensor diameter | 10 mm |
| Probe length | 272 mm |
| Sensor connection | 1/2" NPT |
| Process connection | 1/2" NPT |
| Pressure rating | 16 bar |
| Pressure rating MPa | 1.6 MPa |
| Housing material | Stainless steel |
| Material grade | 1.4401 |
| Material designation | AISI 316 |
| Weight | 181.44 g |
| Construction | Protective thermowell |
| Process isolation | Yes |
| Sensor protection | Yes |
| Sensor replacement | Without removing thermowell |
| Mounting interface | Threaded |
| Process interface | NPT |
| Sensor interface | NPT |
| Probe construction | Stainless steel |
| Application type | Industrial process |
| Temperature measurement | Supported |
| Pack quantity | 1 piece |
| Installation type | Process mounting |
| Mechanical function | Sensor protection |
| Manufacturer | IFM electronic |
