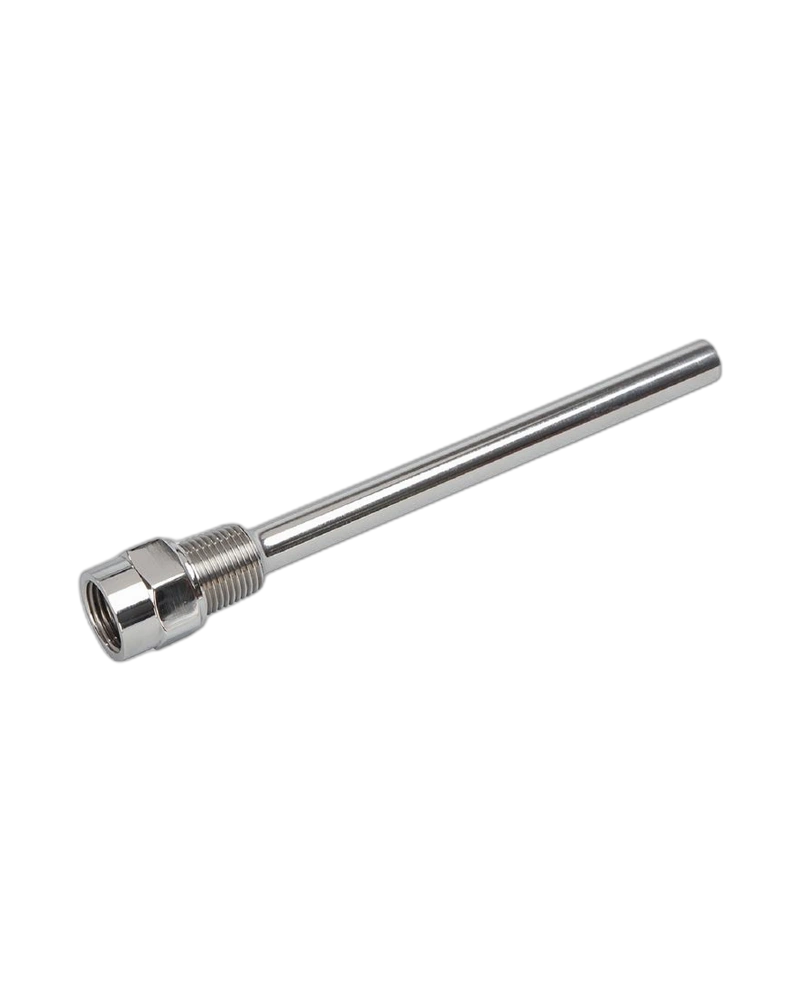

IFM UT0010 is a stainless-steel thermowell designed to protect temperature sensor probes in industrial process applications. The THERMOWELL, 10MMx200MM, 1/2NPT model is designed for a 200 mm sensor installation length and uses a 1/2-inch NPT process connection. Its 10 mm sensor connection and stainless steel 1.4401/316 construction provide a practical protective interface between the temperature sensor and process medium. It also supports convenient sensor replacement during operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UT0010 is designed to provide long-term protection for temperature sensors installed in industrial processes. The thermowell separates the temperature probe from direct contact with the process medium while allowing temperature measurement through the installed sensor. IFM specifies this model for temperature sensors with an EL of 200 mm. Its stainless-steel construction and threaded process connection make it suitable for demanding industrial temperature-monitoring applications.
The thermowell features a 1/2-inch NPT process connection and a 1/2-inch NPT sensor connection for a 10 mm diameter sensor. IFM specifies a probe length of 172 mm and an intended sensor EL of 200 mm. The 1.4401/316 stainless steel material provides the mechanical construction required for process installation. The protective design helps shield the temperature sensor from aggressive media and process pressure.
UT0010 is intended for industrial temperature sensing where the probe requires protection from the surrounding process. The model has a specified permissible pressure of 16 bar or 1.6 MPa. Its longer 200 mm sensor configuration makes it suitable for installations requiring greater insertion depth than the 100 mm UT0009. The thermowell also enables temperature sensors to be replaced more conveniently without removing the complete process protection assembly.
The 1/2-inch NPT process connection provides a threaded interface for compatible process installations. The thermowell is designed around a 10 mm temperature sensor connection and a 200 mm sensor installation length. Its stainless-steel construction supports industrial service, while the protective arrangement helps reduce direct exposure of the temperature sensor to process conditions. This can simplify maintenance and contribute to longer sensor service life.
Thermowell for temperature sensors
200 mm intended sensor EL
10 mm sensor diameter
1/2-inch NPT sensor connection
1/2-inch NPT process connection
Stainless steel 1.4401 / 316
172 mm probe length
16 bar permissible pressure
Protective sensor installation
Convenient sensor replacement
Industrial temperature monitoring
Process temperature measurement
Process control systems
Industrial heating equipment
Process vessels
Temperature sensor protection
Machine temperature monitoring
Industrial instrumentation
Automation systems
Process monitoring equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Product code | UT0010 |
| Product type | Thermowell |
| Model | THERMOWELL, 10MMx200MM, 1/2NPT |
| Product family | Thermowells for temperature sensors |
| Intended sensor EL | 200 mm |
| Probe length L | 172 mm |
| Sensor connection | 1/2" NPT Ø 10 mm |
| Process connection | 1/2" NPT |
| Material | Stainless steel 1.4401 / 316 |
| Maximum permissible pressure | 1.6 MPa / 16 bar |
| Sensor diameter | 10 mm |
| Connection type | Threaded |
| Process interface | NPT |
| Installation | Process-mounted |
| Function | Temperature sensor protection |
| Media protection | Yes |
| Sensor replacement | Supported |
| Application | Temperature measurement |
| Product category | Temperature sensor accessory |
| Industrial use | Process instrumentation |
| Construction | Stainless steel |
| Intended sensor | Temperature sensor |
| Package quantity | 1 piece |
| Manufacturer | IFM |
