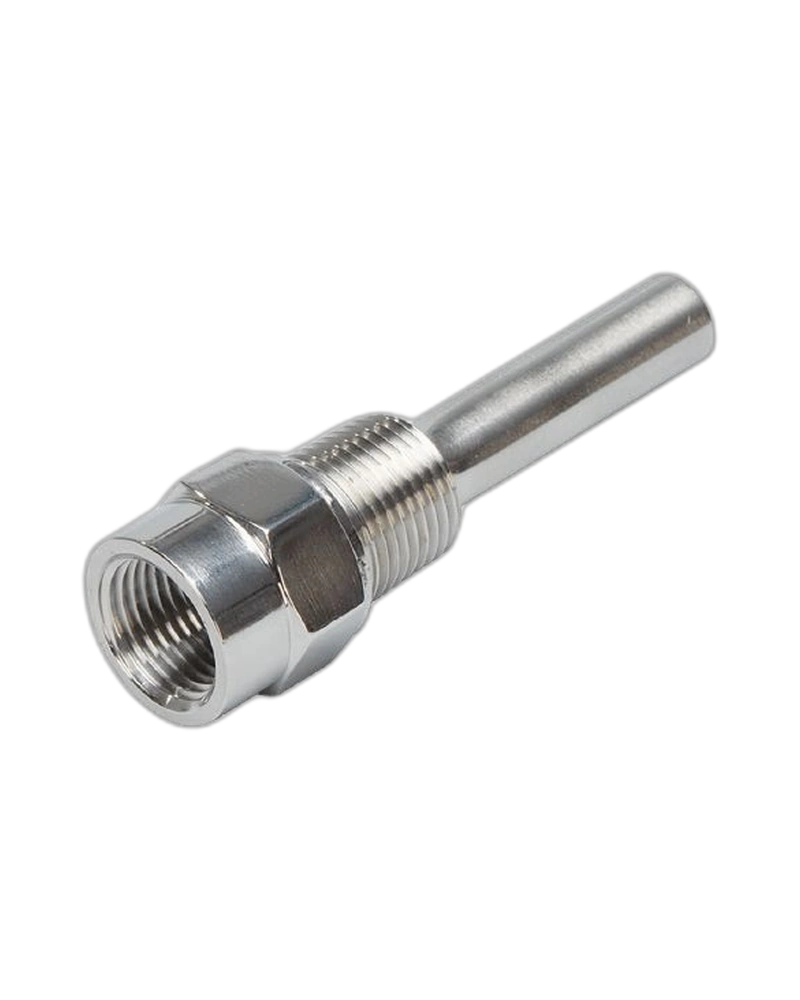

IFM UT0009 is a thermowell designed to protect temperature sensor probes during industrial measurement applications. The THERMOWELL, 10MMx100MM, 1/2NPT configuration provides a 1/2-inch NPT process connection and is designed for a 10 mm sensor connection with a 100 mm installation length. Constructed from stainless steel 1.4401/316, it helps protect the temperature sensor from aggressive media and process pressure while allowing the sensor to be replaced during operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UT0009 provides a protective interface between a temperature sensor and the process being measured. The thermowell allows the sensing element to be inserted into the process without exposing the complete sensor assembly directly to the process medium. IFM specifies this model for temperature sensors with an EL of 100 mm. The design is suitable for industrial applications where sensor protection, mechanical durability and convenient sensor replacement are important.
The thermowell uses stainless steel 1.4401/316 construction and incorporates a 1/2-inch NPT process connection. Its sensor connection is specified as 1/2-inch NPT with a 10 mm diameter, while the probe length is 72 mm and the intended temperature-sensor EL is 100 mm. The thermowell forms a protective barrier around the temperature probe, helping isolate it from aggressive media and process conditions.
UT0009 is intended for industrial temperature measurement applications where the sensing probe requires additional mechanical and process protection. IFM specifies a maximum permissible pressure of 1.6 MPa for this model. The thermowell can remain installed in the process while the associated temperature sensor can be changed more conveniently, helping reduce maintenance effort. It is appropriate for process monitoring and temperature-control installations.
The 1/2-inch NPT process connection provides a standardized threaded interface for compatible installations. The thermowell is designed around a 10 mm sensor connection and 100 mm sensor installation length. Its stainless-steel construction supports use in demanding industrial environments. By separating the temperature probe from direct process exposure, the thermowell can improve sensor protection and simplify replacement during maintenance activities.
Thermowell for temperature sensors
10 mm sensor diameter connection
100 mm intended sensor EL
1/2-inch NPT process connection
1/2-inch NPT sensor connection
Stainless steel 1.4401 / 316 construction
72 mm probe length
Maximum permissible pressure of 1.6 MPa
Protects sensor from process media
Supports easier sensor replacement
Industrial temperature measurement
Process temperature monitoring
Temperature control systems
Process instrumentation
Industrial heating systems
Process vessels
Temperature sensor protection
Machine temperature monitoring
Industrial process equipment
Automation measurement systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Product code | UT0009 |
| Product type | Thermowell |
| Model | THERMOWELL, 10MMx100MM, 1/2NPT |
| Product family | Thermowells for temperature sensors |
| Sensor application | Temperature sensors |
| Sensor connection | 1/2" NPT Ø 10 mm |
| Process connection | 1/2" NPT |
| Intended sensor EL | 100 mm |
| Probe length L | 72 mm |
| Material | Stainless steel 1.4401 / 316 |
| Maximum permissible pressure | 1.6 MPa |
| Weight | 118.7 g |
| Sensor diameter | 10 mm |
| Connection type | Threaded |
| Process interface | NPT |
| Installation type | Process-mounted |
| Function | Sensor protection |
| Media protection | Yes |
| Sensor replacement | Supported |
| Product category | Temperature sensor accessory |
| Application | Industrial temperature measurement |
| Package quantity | 1 piece |
| Manufacturer | IFM |
| Product status | Industrial accessory |
