Explore performance details, construction highlights, applications, and technical information in one clear overview.
The nominal sensing distance is 3500 mm.
The nominal sensing distance is 3500 mm. A switching frequency of 1 Hz.
The thermal drift Sr is ± 8%, with repeat accuracy of 1%.
The output type is 2 x NPN. The operating voltage is 12 - 30 VDC, with load current of 100 mA.
No-load supply current is ≤50 mA and leakage current is limited to 10 µA @ 30Vcc. Maximum ripple is 5%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP67.
The housing material is AISI 316L. Dimensions are M30 x 1,5 / L = 89 mm and the connection is 2 m PVC Cable.
Weight is 220 g.
Tightening torque is 100nM.
The operating temperature range is - 20 °C…+ 70 °C.
Storage temperature is - 35 °C…+ 70° C (Non-freezing).

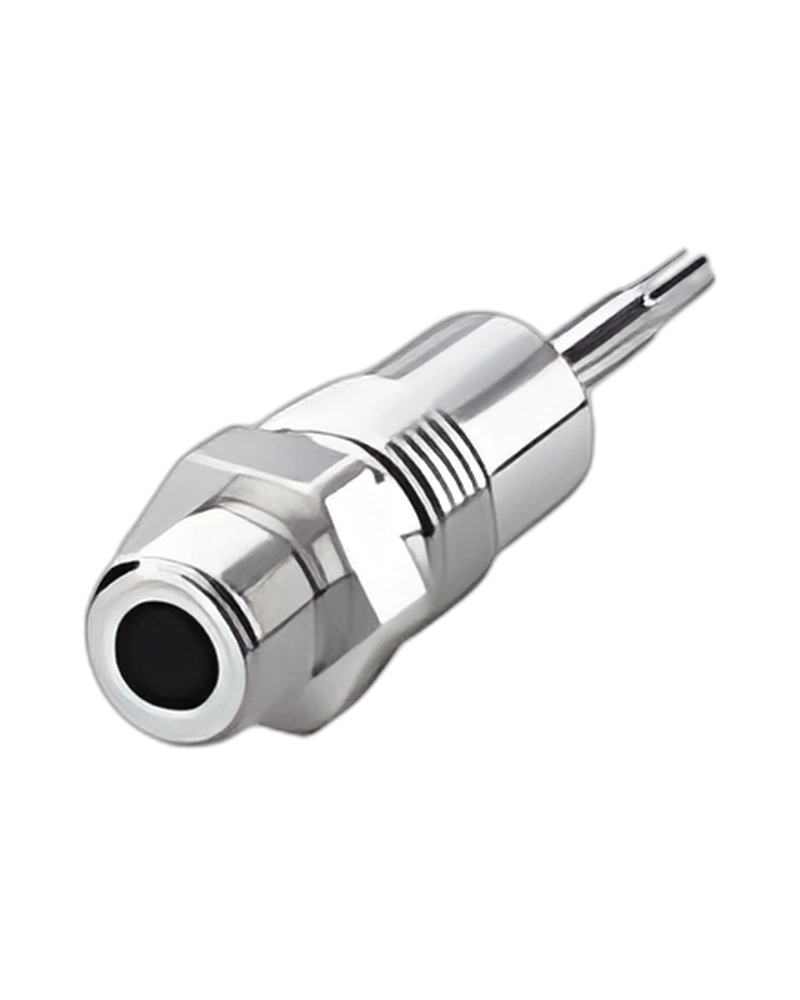

The manufacturer part number is UT1B/EM-1AUL. This model is manufactured by M.D. Micro Detectors. Response time is 250 ms.
For electrical integration, it provides output type 2 x NPN, operating voltage 12 - 30 VDC, switching frequency 1 Hz. The physical configuration includes AISI 316L housing, dimensions M30 x 1,5 / L = 89 mm, 2 m PVC Cable connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 70 °C.
| Specification | Details |
|---|---|
| Model | UT1B/EM-1AUL |
| Manufacturer part number | UT1B/EM-1AUL |
| Manufacturer | M.D. Micro Detectors |
| Response time | 250 ms |
| Output type | 2 x NPN |
| Switching frequency | 1 Hz |
| Weight | 220 g |
| Housing material | AISI 316L |
| Tightening torque | 100nM |
| Operating temperature | - 20 °C…+ 70 °C |
| Dimensions | M30 x 1,5 / L = 89 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | - 35 °C…+ 70° C (Non-freezing) |
| Hysteresis | 1% |
| Nominal sensing distance | 3500 mm |
| Thermal drift Sr | ± 8% |
| Repeat accuracy | 1% |
| Degree of protection | IP67 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 5% |
| Operating voltage | 12 - 30 VDC |
| Load current | 100 mA |
| No-load supply current | ≤50 mA |
| Leakage current | 10 µA @ 30Vcc |
