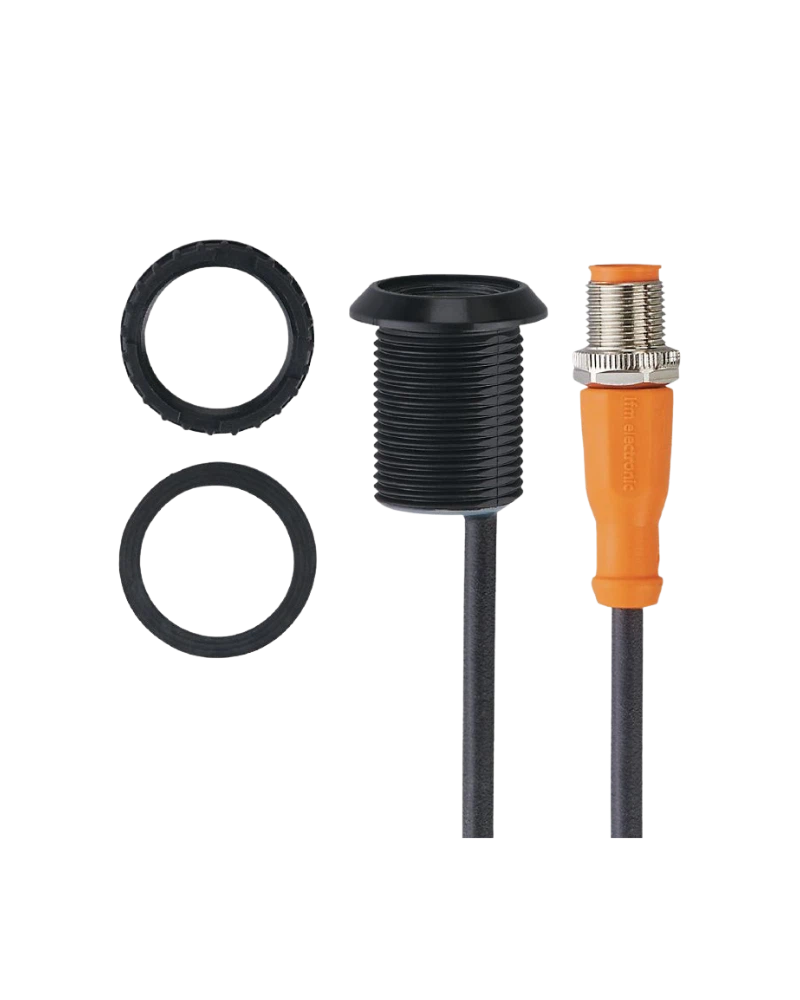

The IFM KT6101 is an IO-Link illuminated capacitive touch sensor designed for advanced machine interfaces and automation systems. It combines ergonomic soft-touch operation, configurable RGB illumination and digital parameterization. The PA housing and compact 0.3 m PUR cable with M12 connection support practical panel installation. Adjustable sensitivity and brightness make it suitable for applications involving gloves, moisture and changing operator conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT6101 provides advanced capacitive touch control with IO-Link communication and configurable multi-colour illumination. Its ergonomic soft-touch interface allows convenient operator interaction, while RGB LEDs provide visual feedback. IO-Link enables digital configuration and integration with compatible automation systems. The M22 design and compact M12 connection make it suitable for machine panels where flexible functionality and efficient installation are required.
Adjustable sensitivity allows the sensor to be adapted to different operating conditions, including applications involving gloves or moisture. Brightness and colour configuration support clear visual indication for different machine states. The 0.3 m PUR cable with M12 connection provides compact wiring, while industrial protection supports machine environments. The sensor can provide both operator interaction and digital configuration within IO-Link architectures.
The KT6101 combines capacitive touch operation, configurable RGB illumination and IO-Link connectivity in a compact industrial format. It allows machine builders to configure sensing and indication characteristics while providing operators with an ergonomic interface. The M12 connection supports practical installation, and the durable PA housing makes it suitable for modern automation equipment requiring flexible digital touch controls.
IO-Link communication
Illuminated capacitive touch sensing
RGB multi-colour indication
Ergonomic soft-touch surface
Adjustable touch sensitivity
Adjustable LED brightness
Configurable illumination colour
0.3 m PUR cable
M12 connection
Suitable for glove and wet-environment operation
IO-Link machine interfaces
Industrial operator panels
Production equipment
Packaging machinery
Assembly systems
Factory automation
Machine status indication
Process equipment controls
Smart automation systems
Digital machine interfaces
| Specification | Details |
|---|---|
| Product Code | KT6101 |
| Model | KTMEF-KMMFFKG/US/IO |
| Product Type | IO-Link illuminated capacitive touch sensor |
| Sensing Range | Capacitive touch sensing |
| Electrical Design | IO-Link |
| Output Function | Configurable; IO-Link |
| Operating Voltage | 10–30 V DC |
| Current Consumption | Approx. 30 mA |
| Housing Material | PA |
| Housing Design | M22 panel-mount soft-touch design |
| Connection | 0.3 m PUR cable |
| Connector | M12 plug |
| Protection Rating | IP65 / IP67 / front IP69K |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -40 to 85 °C |
| Installation | Panel installation |
| Mounting | M22 |
| LED Indicator | Configurable RGB LEDs |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | IO-Link; configurable RGB colour, brightness and sensitivity |
