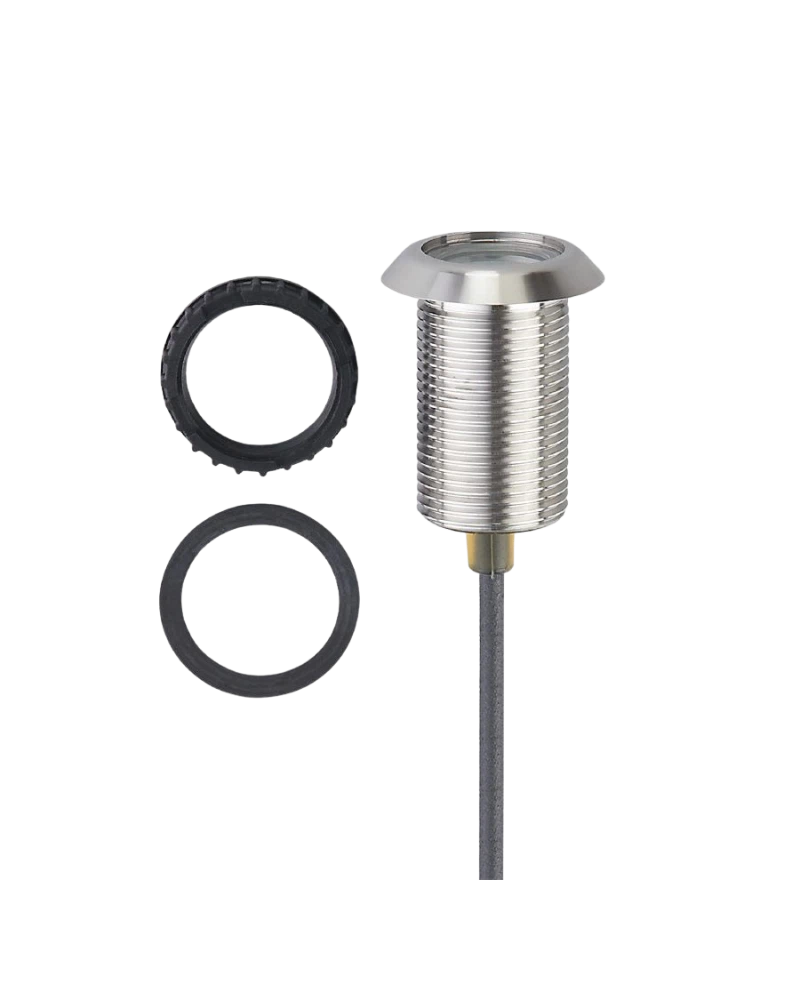

The IFM KT6300 is an IO-Link illuminated capacitive touch sensor with stainless-steel construction for demanding industrial applications. It provides ergonomic soft-touch operation, configurable RGB illumination and adjustable sensing characteristics. The 2 m PUR cable supports practical machine installation. With digital IO-Link communication and robust construction, the sensor is suitable for advanced operator interfaces, automation systems and industrial machine controls.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT6300 combines capacitive touch technology, IO-Link communication and multi-colour RGB illumination in a robust stainless-steel housing. Its ergonomic soft-touch interface provides convenient operator interaction, while configurable LEDs deliver clear machine feedback. IO-Link enables parameterization and integration into compatible automation systems. The sensor is designed for machine builders requiring durable and flexible touch-control functionality.
The sensor provides adjustable sensitivity for different operating conditions and can support applications involving gloves or moisture. Adjustable brightness and RGB colour selection allow visual indication to be configured for machine requirements. Its 2 m PUR cable provides installation flexibility, while the stainless-steel housing supports demanding industrial environments. IO-Link communication provides convenient digital configuration and system integration.
The KT6300 provides an advanced combination of touch sensing, RGB illumination and IO-Link connectivity with durable stainless-steel construction. It supports flexible machine interface design through configurable sensing and indication parameters. The 2 m PUR cable provides convenient installation, while industrial protection supports demanding applications. It is suitable for modern automation systems requiring robust and intelligent operator controls.
IO-Link capacitive touch sensor
Stainless-steel housing
RGB multi-colour illumination
Ergonomic soft-touch operation
Adjustable sensitivity
Adjustable brightness
Configurable illumination colour
2 m PUR cable
Digital parameterization
Suitable for demanding industrial environments
Advanced industrial operator panels
IO-Link automation systems
Production machinery
Packaging equipment
Assembly equipment
Machine status indication
Factory automation
Process equipment interfaces
Smart machine controls
Industrial HMI applications
| Specification | Details |
|---|---|
| Product Code | KT6300 |
| Model | KTMEF-EMMFFKG/2m/IO |
| Product Type | IO-Link illuminated capacitive touch sensor |
| Sensing Range | Capacitive touch sensing |
| Electrical Design | IO-Link |
| Output Function | Configurable; IO-Link |
| Operating Voltage | 10–30 V DC |
| Current Consumption | Approx. 30 mA |
| Housing Material | Stainless steel 1.4305 |
| Housing Design | M22 panel-mount soft-touch design |
| Connection | 2 m PUR cable |
| Connector | Cable connection |
| Protection Rating | IP65 / IP67 / front IP69K |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -40 to 85 °C |
| Installation | Panel installation |
| Mounting | M22 |
| LED Indicator | Configurable RGB LEDs |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | IO-Link; stainless-steel housing; configurable sensing and RGB indication |
