The nominal sensing distance is 3500 mm.
The nominal sensing distance is 3500 mm. The thermal drift Sr is ±5%, with repeat accuracy of 1%.
The operating voltage is 15 - 30 VDC, with load current of 100 mA. No-load supply current is ≤50 mA and leakage current is limited to 10 µA @ 30Vcc.
Maximum ripple is 5%. Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP67.
The housing material is PBT. Dimensions are M30 x 1,5 / L = 89 mm and the connection is 2 m PVC Cable.
Weight is 200 g.
Tightening torque is 1,5 nm.
The operating temperature range is - 20 °C…+ 70 °C.
Storage temperature is - 35 °C…+ 70° C (Non-freezing).

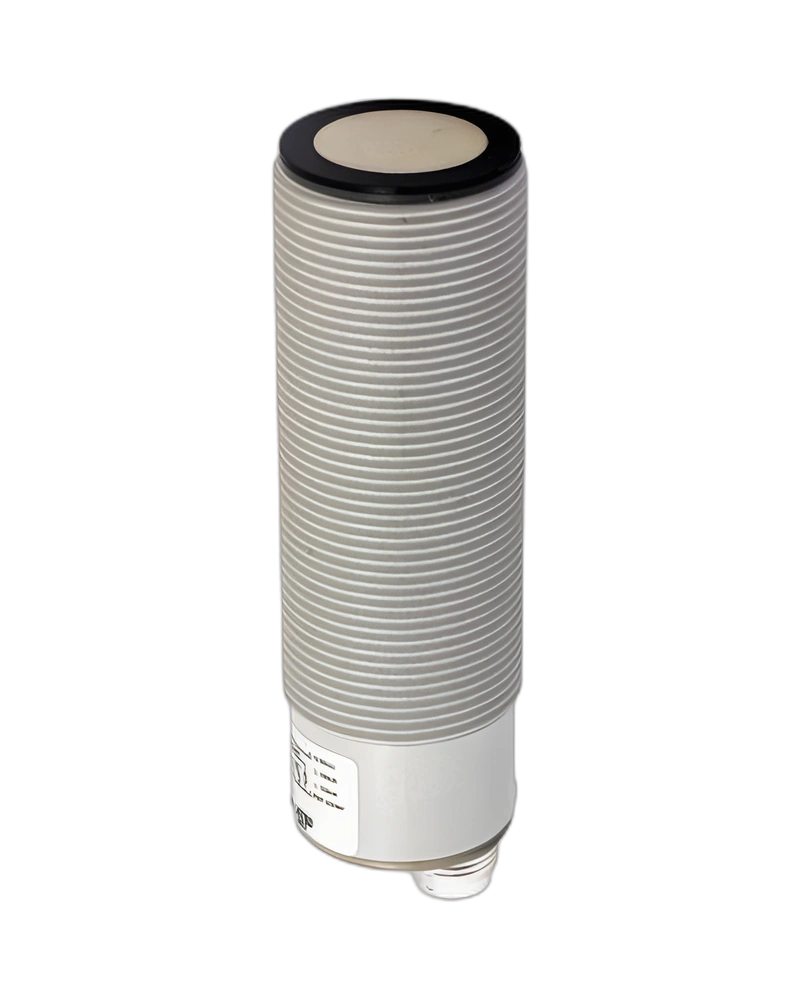

The manufacturer part number is UT1B/E1-0AUL. This model is manufactured by M.D. Micro Detectors. Response time is 600 ms.
Time to availability is ≤900 ms.
For electrical integration, it provides operating voltage 15 - 30 VDC. The physical configuration includes PBT housing, dimensions M30 x 1,5 / L = 89 mm, 2 m PVC Cable connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 70 °C.
| Specification | Details |
|---|---|
| Model | UT1B/E1-0AUL |
| Manufacturer part number | UT1B/E1-0AUL |
| Manufacturer | M.D. Micro Detectors |
| Response time | 600 ms |
| Weight | 200 g |
| Housing material | PBT |
| Tightening torque | 1,5 nm |
| Operating temperature | - 20 °C…+ 70 °C |
| Dimensions | M30 x 1,5 / L = 89 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | - 35 °C…+ 70° C (Non-freezing) |
| Hysteresis | 1% |
| Nominal sensing distance | 3500 mm |
| Thermal drift Sr | ±5% |
| Repeat accuracy | 1% |
| Degree of protection | IP67 |
| Time to availability | ≤900 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 5% |
| Operating voltage | 15 - 30 VDC |
| Load current | 100 mA |
| No-load supply current | ≤50 mA |
| Leakage current | 10 µA @ 30Vcc |
