The nominal sensing distance is 800 mm.
The nominal sensing distance is 800 mm. A switching frequency of 5 Hz.
The thermal drift Sr is ≤2%, with repeat accuracy of 0,50%.
For electrical integration, the output configuration is NPN NO. The operating voltage is 10 - 30 VDC, with load current of 100 mA.
No-load supply current is ≤35 mA @Val = 30V and leakage current is limited to 10 µA @ 30Vcc. Maximum ripple is 5%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP67.
The housing material is AISI 316L Stainless steel. Dimensions are M18 x 1 / L = 60,3 mm and the connection is M12 Connector.
Weight is 80 g.
Tightening torque is 50 nm.
The operating temperature range is - 20 °C…+ 70 °C.
Storage temperature is - 35 °C…+ 80° C Non-freezing.

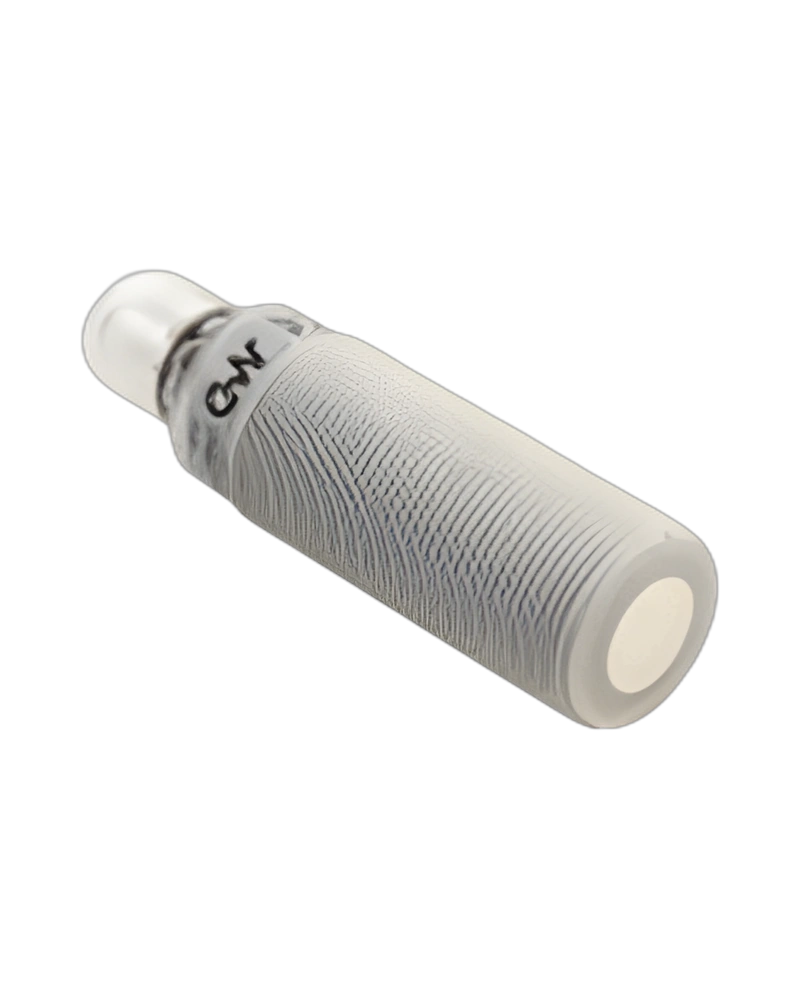

The manufacturer part number is UK6C/HN-1EUL. This model is manufactured by M.D. Micro Detectors. Response time is 400 ms.
Time to availability is ≤300 ms.
For electrical integration, it provides output configuration NPN NO, operating voltage 10 - 30 VDC, switching frequency 5 Hz. The physical configuration includes AISI 316L Stainless steel housing, dimensions M18 x 1 / L = 60,3 mm, M12 Connector connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 70 °C.
| Specification | Details |
|---|---|
| Model | UK6C/HN-1EUL |
| Output configuration | NPN NO |
| Manufacturer part number | UK6C/HN-1EUL |
| Manufacturer | M.D. Micro Detectors |
| Response time | 400 ms |
| Output type | 1xNPN |
| Switching frequency | 5 Hz |
| Weight | 80 g |
| Housing material | AISI 316L Stainless steel |
| Tightening torque | 50 nm |
| Operating temperature | - 20 °C…+ 70 °C |
| Dimensions | M18 x 1 / L = 60,3 mm |
| Connection | M12 Connector |
| Storage temperature | - 35 °C…+ 80° C Non-freezing |
| Hysteresis | 1% |
| Nominal sensing distance | 800 mm |
| Thermal drift Sr | ≤2% |
| Repeat accuracy | 0,50% |
| Degree of protection | IP67 |
| Time to availability | ≤300 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 5% |
| Operating voltage | 10 - 30 VDC |
| Load current | 100 mA |
| No-load supply current | ≤35 mA @Val = 30V |
| Leakage current | 10 µA @ 30Vcc |
