The nominal sensing distance is 1100 mm.
The nominal sensing distance is 1100 mm. A switching frequency of 500 Hz.
The output type is PNP. The output function is NC.
The operating voltage is 19 - 30 VDC, with load current of 40 mA. Maximum ripple is < 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP67 (EN60529).
The housing material is PBTP. Dimensions are 24 x 50 x 15 mm and the connection is 2 m PVC Cable.
Weight is 150 g.
The operating temperature range is - 15 °C…+ 60 °C.
Storage temperature is - 25 °C…+ 75° C (Non-freezing).
Sensitivity adjustment is No.

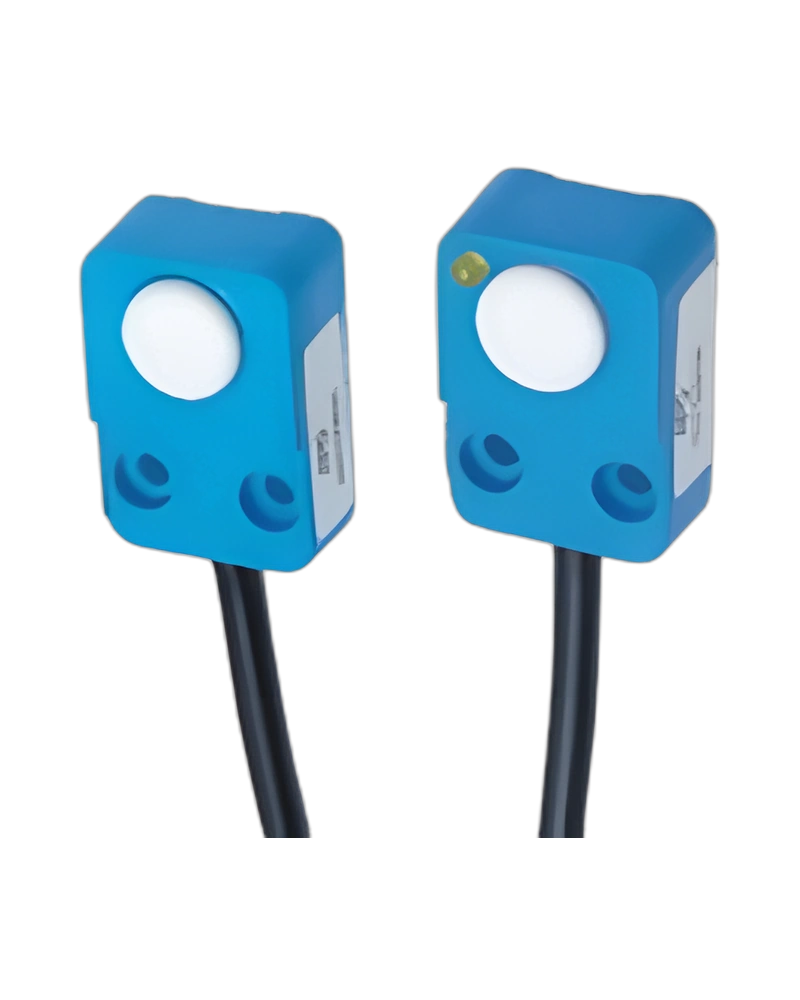

The manufacturer part number is UHS/CP-0A. This model is manufactured by M.D. Micro Detectors. Response time is 1 ms.
Time to availability is < 200 ms.
For electrical integration, it provides output type PNP, operating voltage 19 - 30 VDC, switching frequency 500 Hz. The physical configuration includes PBTP housing, dimensions 24 x 50 x 15 mm, 2 m PVC Cable connection. It is rated IP67 (EN60529) for an operating temperature range of - 15 °C…+ 60 °C.
| Specification | Details |
|---|---|
| Model | UHS/CP-0A |
| Manufacturer part number | UHS/CP-0A |
| Manufacturer | M.D. Micro Detectors |
| Response time | 1 ms |
| Output type | PNP |
| Output function | NC |
| Switching frequency | 500 Hz |
| Weight | 150 g |
| Housing material | PBTP |
| Operating temperature | - 15 °C…+ 60 °C |
| Dimensions | 24 x 50 x 15 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | - 25 °C…+ 75° C (Non-freezing) |
| Nominal sensing distance | 1100 mm |
| Sensitivity adjustment | No |
| Degree of protection | IP67 (EN60529) |
| Time to availability | < 200 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | < 10% |
| Operating voltage | 19 - 30 VDC |
| Load current | 40 mA |
| Leakage current | < 10 µA |
