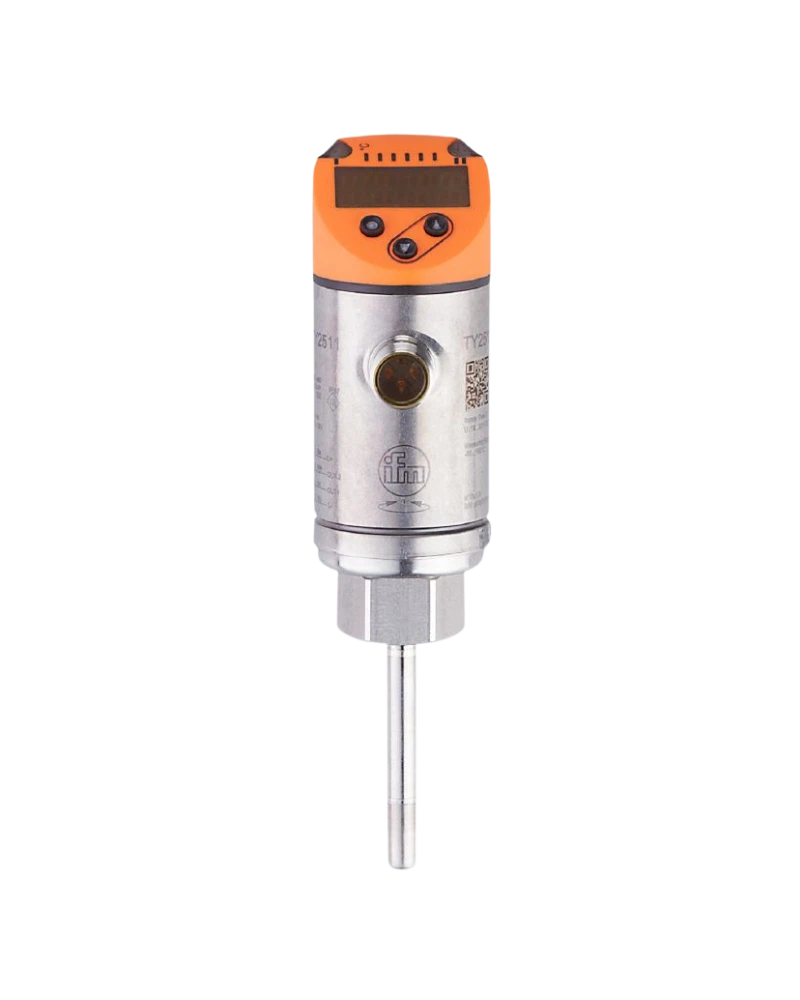

The IFM TY2511 temperature sensor combines temperature measurement, local display and configurable automation outputs in a compact industrial device. It uses a Pt1000 measuring element and supports a measuring range of -50 to 150 °C. The sensor provides IO-Link communication, one digital output and one analogue output, while its red/green display clearly indicates process values and acceptable ranges.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TY2511 is a temperature sensor with integrated display designed for industrial temperature measurement. It uses a Pt1000 measuring element and is suitable for measuring liquids and gases. The device provides local temperature indication and supports IO-Link communication for parameterisation and data exchange with automation systems.
The sensor features a four-digit red/green alphanumeric display that provides clear process information. Three programming buttons support intuitive parameter adjustment, while the upper section of the housing can rotate through 345 degrees for convenient display positioning. These features make the sensor practical for operator-accessible installations.
The TY2511 provides a measuring range of -50 to 150 °C and uses a Pt1000 measuring element according to DIN EN 60751 Class A. It supports a digital output and an analogue output, allowing the sensor to communicate temperature conditions to automation equipment. IO-Link provides additional parameterisation and diagnostic capabilities.
The integrated display reduces the need for a separate temperature indicator. IO-Link supports convenient sensor configuration and process-data communication. The red/green display can help operators distinguish acceptable and critical temperature conditions. With a robust process connection and suitability for liquids and gases, the sensor can support many industrial temperature-monitoring applications.
Pt1000 measuring element
Measuring range -50...150 °C
Four-digit red/green display
IO-Link communication
One digital output
One analogue output
Three programming buttons
345° rotatable upper housing
M18 x 1.5 female process connection
Gold-plated contacts
Liquid temperature measurement
Gas temperature measurement
Process temperature monitoring
Industrial machinery
Heating systems
Cooling systems
Food and process equipment
Machine temperature control
Industrial automation
Temperature alarm monitoring
| Specification | Details |
|---|---|
| Product code | TY2511 |
| Product type | Temperature sensor with display |
| Model | TN-045KCBD18-MFPKG/US/ |
| Brand | IFM |
| Measuring element | 1 x Pt1000 |
| Sensor standard | DIN EN 60751 Class A |
| Measuring range | -50...150 °C |
| Communication | IO-Link |
| Digital outputs | 1 |
| Analogue outputs | 1 |
| Application medium | Liquids and gases |
| Process connection | M18 x 1.5 female thread |
| Installation length | 45 mm |
| Minimum installation depth | 12 mm |
| Maximum pressure | 300 bar / 30 MPa |
| Supply voltage | 18...32 V DC |
| Current consumption | <50 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Display | 4-digit red/green |
| Operating elements | 3 programming buttons |
| Housing rotation | 345° |
| Special feature | Gold-plated contacts |
| Sensor connection | Pt1000 |
| Product application | Industrial temperature measurement |
