The IFM TW7011 infrared temperature sensor provides fast, non-contact measurement of high temperatures from 350 to 1350 °C. It is designed for industrial processes where direct contact with the measured object is unsuitable or impossible. With a 2 ms response time, programmable switching points, local LED display and robust M30 threaded housing, the sensor supports reliable temperature monitoring and automation control in high-temperature applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TW7011 is an infrared temperature sensor designed for high-temperature industrial measurement. Its non-contact infrared principle allows the temperature of hot, moving or inaccessible objects to be measured without direct contact. The device provides a measuring range of 350 to 1350 °C and a fast 2 ms response time. This makes it suitable for rapid temperature monitoring in automated production processes.
The sensor provides programmable set and reset points for process control. Its switching and display resolution is 10 K, allowing practical monitoring of high-temperature processes. The sensor is designed for quick response where rapid changes in temperature need to be detected. Its infrared measurement principle reduces the need for mechanical contact with hot surfaces or moving products.

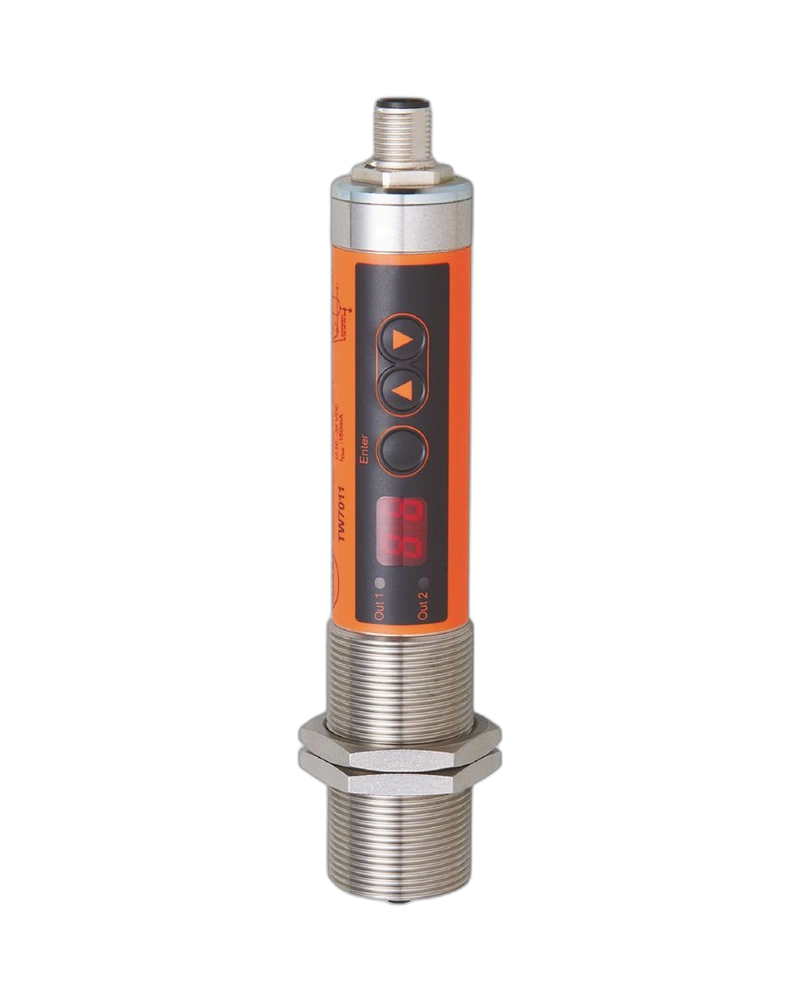

The TW7011 uses a threaded industrial housing suitable for mounting in automation systems. Programming buttons allow switching parameters to be adjusted directly at the sensor. The integrated display provides local temperature and status information. Its optical measurement arrangement enables high-temperature measurement without a physical sensing probe touching the target.
Non-contact operation helps reduce mechanical wear associated with contact probes. The high measuring range makes the TW7011 suitable for demanding thermal processes. Fast response supports rapid detection of temperature changes, while programmable switching points allow integration into control sequences. It can be used as part of automated monitoring and protection systems.
Non-contact infrared temperature measurement
Measuring range 350...1350 °C
2 ms response time
10 K display resolution
10 K switching resolution
Programmable set and reset points
Programming buttons
Integrated LED display
Industrial threaded housing
High-temperature measurement capability
Furnace monitoring
Heat treatment
Metal processing
Hot material inspection
Industrial heating systems
Temperature-based switching
Process temperature monitoring
Overtemperature detection
Production-line monitoring
Automated thermal control
| Specification | Details |
|---|---|
| Product code | TW7011 |
| Product type | Infrared temperature sensor |
| Model | TW-008CODM30-QFPKG/US |
| Brand | IFM |
| Measurement principle | Infrared / non-contact |
| Measuring range | 350...1350 °C |
| Set point | 350...1340 °C |
| Reset point | 350...1340 °C |
| Factory SP1 | 25 % |
| Factory rP1 | 23 % |
| Factory SP2 | 75 % |
| Factory rP2 | 73 % |
| Switching resolution | 10 K |
| Display resolution | 10 K |
| Accuracy | < ±1 % under specified reference conditions |
| Response time | 2 ms |
| Adjustment | Programming buttons |
| Housing type | Threaded |
| Display | LED display |
| Application | High-temperature industrial measurement |
| Operating principle | Non-contact infrared |
| Output | Switching output |
| Parameter setting | Programmable |
| Installation | Industrial mounting |
| Brand | IFM |
| Product family | Infrared temperature sensors |
