The IFM TW7001 infrared temperature sensor provides fast, non-contact temperature measurement for high-temperature industrial applications. It uses infrared sensing technology to measure temperatures from a distance without physical contact with the target. With a measuring range of 250 to 1250 °C, fast 2 ms response, display indication and programmable switching functions, it is suitable for reliable temperature monitoring in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TW7001 is an infrared temperature sensor designed for reliable non-contact temperature measurement in industrial processes. Its infrared measuring principle allows temperature monitoring of hot or moving objects without direct mechanical contact. The sensor supports a high measuring range from 250 to 1250 °C and provides a rapid response time of 2 ms. Its compact threaded housing supports practical industrial installation and continuous monitoring.
The sensor is designed for applications where conventional contact temperature sensors may not be practical. It measures high temperatures using infrared radiation and provides a resolution suitable for industrial monitoring. The programmable set and reset points allow users to configure switching behaviour according to process requirements. A two-digit LED display provides convenient local indication of measured values and switching status.

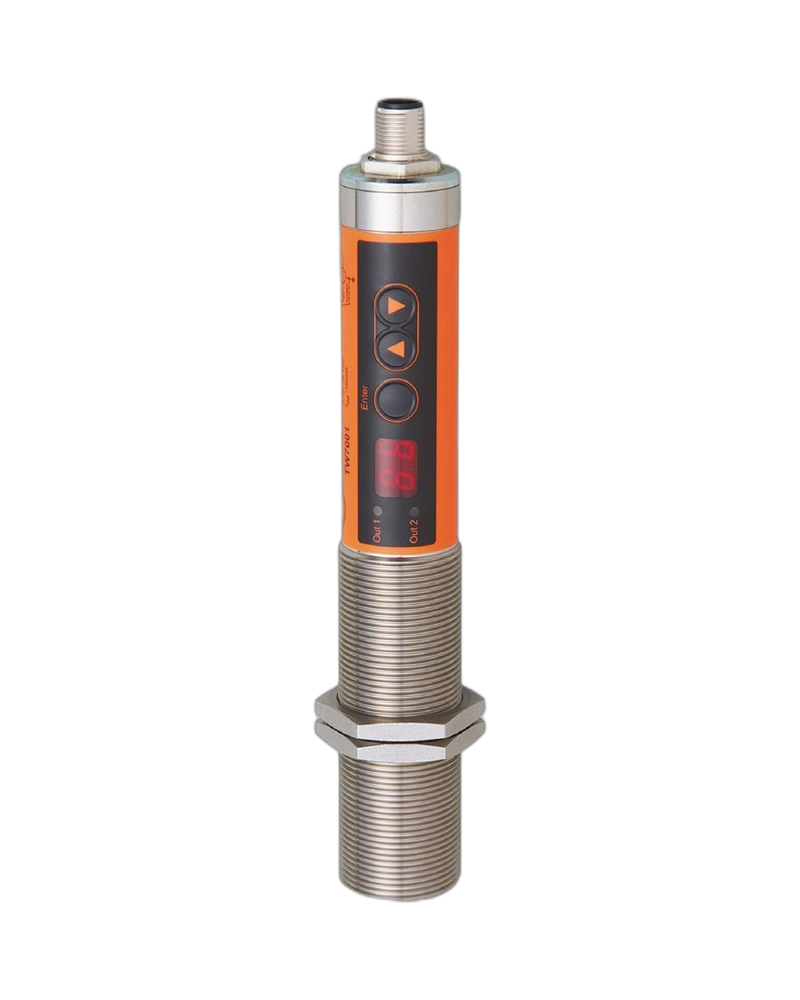

The TW7001 features a robust M30 x 1.5 threaded housing with a stainless-steel threaded sleeve. Programming buttons provide convenient adjustment of switching parameters directly on the device. Its optical glass lens supports infrared measurement while the display provides local process information. The sensor is designed for reliable operation in industrial environments where high-temperature objects must be monitored without physical contact.
Fast response, non-contact measurement and programmable switching make the TW7001 suitable for automated temperature control. The sensor can help detect overheating, monitor process temperatures and provide switching signals for automation systems. Its high-temperature measurement capability is particularly useful for hot materials and industrial processes. The IP65 protection rating supports use in appropriate industrial installations.
Non-contact infrared temperature measurement
Measuring range from 250 to 1250 °C
Fast response time of 2 ms
Two-digit 7-segment LED display
Programmable switching points
M30 x 1.5 threaded housing
Stainless-steel threaded sleeve
Two yellow LEDs for status indication
Pushbutton parameter adjustment
IP65 protection
High-temperature process monitoring
Furnace temperature monitoring
Metal processing applications
Hot material detection
Heat treatment processes
Industrial heating systems
Production-line temperature monitoring
Overtemperature detection
Automated process control
Non-contact temperature inspection
| Specification | Details |
|---|---|
| Product code | TW7001 |
| Product type | Infrared temperature sensor |
| Model | TW-006CNDM30-QFPKG/US |
| Brand | IFM |
| Measurement principle | Infrared / non-contact |
| Measuring range | 250...1250 °C |
| Set point range | 250...1240 °C |
| Reset point range | 250...1240 °C |
| Resolution of switching output | 10 K |
| Resolution of display | 10 K |
| Accuracy | < ±1 % of VMR under specified reference conditions |
| Response time | 2 ms |
| Adjustment | Programming buttons |
| Housing | Threaded type |
| Thread designation | M30 x 1.5 |
| Housing length | 189 mm |
| Housing material | Stainless steel 303 / 1.4305 |
| Lens material | Tempered optical glass |
| Display | 2-digit 7-segment LED |
| Status indication | 2 x yellow LED |
| Operating elements | Pushbuttons |
| Ambient temperature | 0...65 °C |
| Storage temperature | -20...80 °C |
| Protection | IP65 |
| Weight | 433.5 g |
