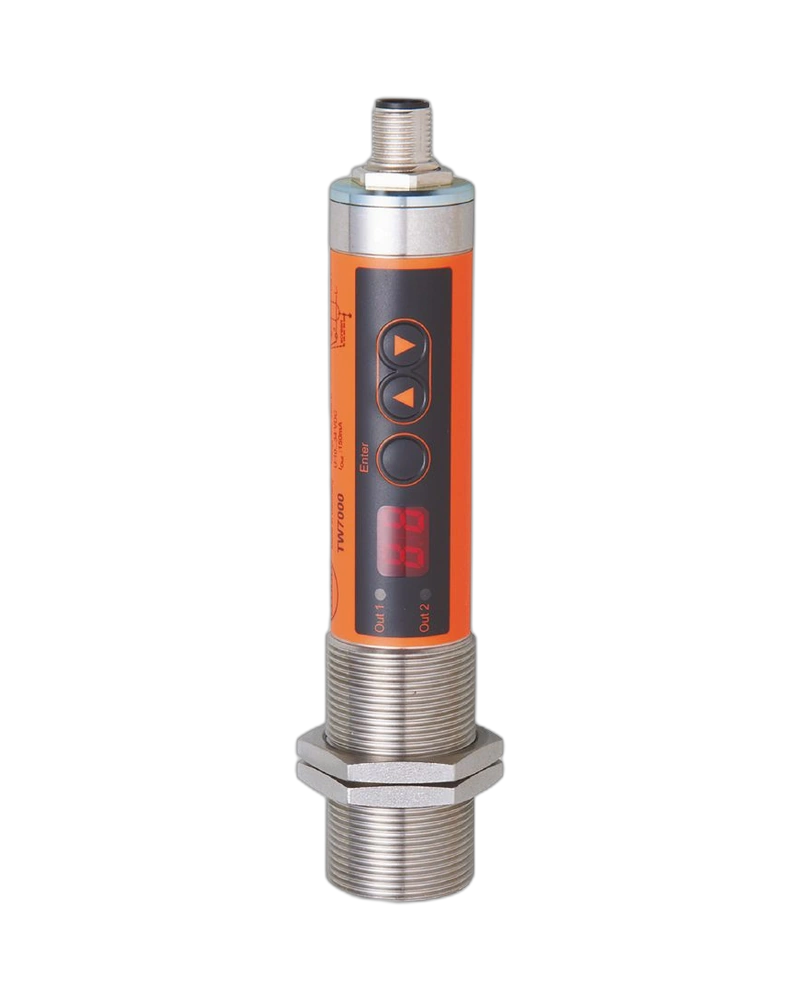

IFM TW7000 is an infrared temperature sensor designed for non-contact high-temperature monitoring. It provides a 50 to 500 °C measuring range and uses an 8 to 14 µm wavelength range. The sensor is designed with two binary switching outputs for temperature threshold monitoring. Its display provides convenient visualization of measured temperature information. TW7000 is suitable for industrial process monitoring, thermal control, hot-object detection and automated temperature-based switching applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TW7000 is part of IFM’s infrared temperature switch family with display. It is designed for non-contact measurement and temperature-based switching. The sensor covers a 50 to 500 °C measuring range with an 8 to 14 µm wavelength band. Two binary switching outputs allow temperature thresholds to be monitored. The display provides convenient access to measured temperature information.
The sensor measures infrared radiation emitted by the target surface without physical contact. It uses two binary switching outputs for temperature-related control functions. The display helps users view measurement information directly at the sensor. The non-contact design is suitable for moving and hot objects. Its M30-style industrial construction supports integration into automated machinery.
TW7000 provides a 50 to 500 °C measuring range and operates in the 8 to 14 µm wavelength range. The sensor is designed for temperature detection and switching rather than only continuous analogue measurement. Its two binary outputs can be used for independent temperature threshold functions. This makes it suitable for industrial process monitoring and equipment protection.
TW7000 provides direct temperature visualization through its display. Two switching outputs can support multiple temperature threshold functions. Non-contact measurement protects the sensor from direct exposure to hot or moving targets. The sensor can be used for automated alarms and temperature-based control. It provides a practical solution for industrial thermal detection.
Infrared non-contact measurement
50 to 500 °C measuring range
8 to 14 µm wavelength
Two binary switching outputs
Integrated display
Temperature visualization
M30-style industrial design
Hot-object detection
Temperature threshold monitoring
Industrial automation compatibility
Non-contact operation
Process monitoring
Industrial temperature monitoring
Hot-object detection
Heat treatment
Furnace monitoring
Production machinery
Thermal process control
Temperature alarms
Machine protection
Automated switching
Industrial automation
Surface temperature monitoring
Process equipment
| Specification | Details |
|---|---|
| Product code | TW7000 |
| Product type | Infrared temperature sensor |
| Model | TW-023CMDM30-QFPKG/US |
| Brand | IFM |
| Measurement principle | Infrared |
| Measuring range | 50 to 500 °C |
| Wavelength | 8 to 14 µm |
| Measurement | Non-contact |
| Outputs | 2 binary switching outputs |
| Display | Integrated |
| Temperature visualization | Yes |
| Switching function | Temperature threshold |
| Housing | M30-style industrial design |
| Application | Industrial temperature detection |
| Target | Hot surfaces/objects |
| Installation | Fixed non-contact |
| Signal | Binary switching |
| Control | Temperature-based switching |
| Sensor family | TW7 |
| Technology | Infrared |
| Monitoring | Continuous detection |
| Automation | Supported |
| Equipment protection | Supported |
| Manufacturer | IFM |
