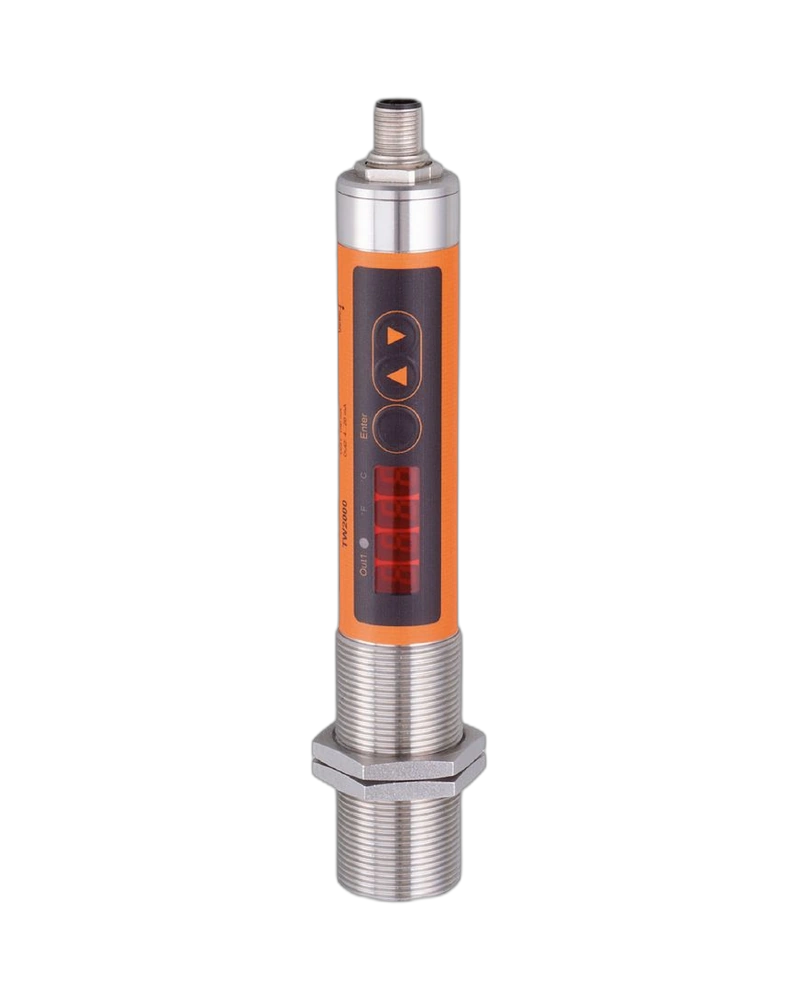

IFM TW2003 is a non-contact infrared temperature sensor designed for industrial surface temperature measurement. It provides a -30 to 300 °C measuring range and uses an 8 to 14 µm wavelength range. The sensor supports analogue, switching and IO-Link functions for integration into modern automation systems. Its non-contact operation is suitable for moving, inaccessible or sensitive surfaces. TW2003 provides convenient temperature monitoring for manufacturing, process control and automated equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TW2003 belongs to IFM’s infrared temperature sensor family for non-contact measurement. It is designed to measure surface temperatures without requiring physical contact with the target. The sensor covers -30 to 300 °C and operates in the 8 to 14 µm wavelength band. It supports digital IO-Link communication in addition to analogue and switching functionality. This makes it suitable for modern industrial automation.
TW2003 detects infrared radiation emitted from the target surface. Its non-contact operating principle allows temperature monitoring of moving or difficult-to-access objects. IO-Link provides convenient parameter setting and diagnostic capabilities. Analogue and switching functions support connection to conventional automation systems. The sensor can therefore be used in both traditional and digitally connected machine architectures.
TW2003 provides a -30 to 300 °C measuring range. The 8 to 14 µm wavelength band supports general infrared temperature measurement applications. IFM lists IO-Link resolution of 0.01 °C across the full range and analogue resolution characteristics of 0.2 °C plus 0.03% of the scaled range. The sensor provides numerical and status indication functions.
Non-contact measurement reduces the need for physical contact with the measured surface. IO-Link makes parameterisation and sensor setup convenient. The sensor can monitor moving objects and surfaces where contact sensors are unsuitable. Its multiple output options allow flexible integration into automation systems. TW2003 is useful for process monitoring, machine control and thermal inspection.
Non-contact infrared measurement
-30 to 300 °C range
8 to 14 µm wavelength
IO-Link communication
Analogue output
PNP switching output
0.01 °C IO-Link resolution
Numerical visualization
Status indication
Easy parameter setting
Suitable for moving objects
Industrial automation integration
Surface temperature monitoring
Machine automation
Manufacturing equipment
Moving-object temperature measurement
Process monitoring
Thermal inspection
Production quality control
Industrial machinery
Temperature-based control
Equipment monitoring
Automated production
IO-Link applications
| Specification | Details |
|---|---|
| Product code | TW2003 |
| Product type | Infrared temperature sensor |
| Model | TW-030KLBM30-KFDKG/US |
| Brand | IFM |
| Measurement principle | Infrared / non-contact |
| Measuring range | -30 to 300 °C |
| Wavelength | 8 to 14 µm |
| Output | PNP switching + analogue + IO-Link |
| IO-Link | Supported |
| IO-Link resolution | 0.01 °C |
| Analogue resolution | 0.2 °C + 0.03% scaled range |
| Visualization | Numerical display |
| Status | Status LED |
| Measurement | Surface temperature |
| Installation | Non-contact |
| Application | Industrial temperature monitoring |
| Communication | Digital IO-Link |
| Parameter setting | IO-Link |
| Diagnostics | IO-Link |
| Switching | PNP |
| Signal type | Analogue |
| Sensor family | TW |
| Technology | Infrared |
| Control integration | Automation systems |
| Manufacturer | IFM |
