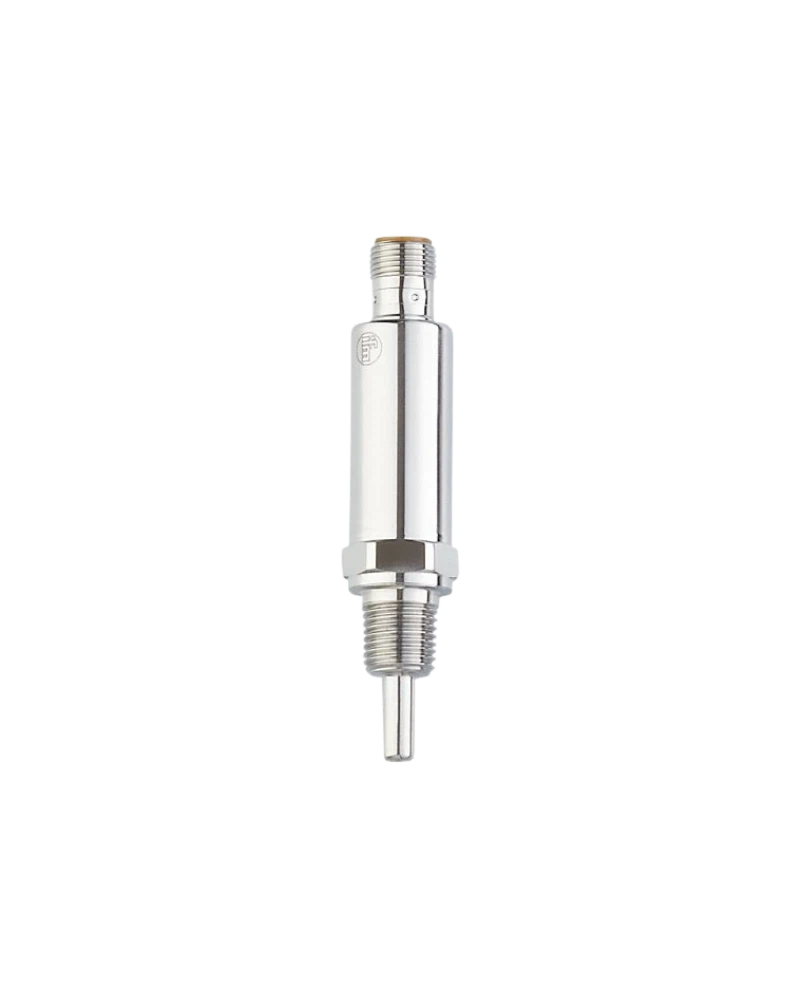

IFM TV7603 is a compact IO-Link temperature sensor designed for industrial process applications. It measures temperatures from -50 to 150 °C and uses a 1/4 inch NPT process connection with a 25 mm installation length. Two programmable switching outputs provide flexible temperature monitoring and control. IO-Link supports digital parameterisation and sensor analysis. Its IP69K protection and stainless-steel construction make it suitable for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TV7603 is an industrial temperature sensor designed for automated temperature measurement. It combines IO-Link communication with programmable switching functions. The sensor provides a -50 to 150 °C measuring range for process monitoring. A 1/4 inch NPT connection supports compatible industrial installation requirements. The compact design makes it suitable for machine and process equipment.
The sensor incorporates a 1/4 inch NPT process connection and 25 mm installation length. Two programmable switching outputs can be used for temperature-based control functions. IO-Link provides digital access to configuration and sensor information. The 316L stainless-steel wetted parts are suitable for industrial process environments. Its compact format supports straightforward integration into machinery.
TV7603 operates from 18 to 32 V DC. The TV7 series provides a -50 to 150 °C measuring range with ±0.3 K accuracy. Its dynamic response is specified at T05 1 second and T09 3 seconds. IP69K protection supports operation in demanding industrial conditions. Reverse-polarity and overload protection further support dependable operation.
TV7603 provides digital temperature information for automation systems. Its programmable outputs can support alarms and temperature control functions. IO-Link allows convenient configuration and diagnostics. The 1/4 inch NPT process connection provides flexible installation in suitable equipment. The sensor is suitable for continuous temperature monitoring in industrial processes.
IO-Link communication
-50 to 150 °C measuring range
±0.3 K accuracy
1/4 inch NPT process connection
25 mm installation length
Two programmable outputs
18 to 32 V DC operation
IP69K protection
316L stainless-steel wetted parts
T05 response 1 second
T09 response 3 seconds
Reverse-polarity protection
Overload protection
Compact process sensor
Industrial temperature measurement
Process monitoring
Automated machine control
Temperature alarms
Production machinery
Process equipment
Thermal monitoring
Industrial automation
Machine protection
Process control
IO-Link networks
Equipment diagnostics
| Specification | Details |
|---|---|
| Product code | TV7603 |
| Product type | Temperature sensor |
| Model | TV7-025FLEN14-QFRVG/US |
| Brand | IFM |
| Communication | IO-Link 1.1 |
| Measuring range | -50 to 150 °C |
| Accuracy | ±0.3 K |
| Process connection | 1/4 inch NPT |
| Installation length | 25 mm |
| Supply voltage | 18 to 32 V DC |
| Outputs | 2 programmable switching outputs |
| Output function | NO/NC programmable |
| T05 response | 1 s |
| T09 response | 3 s |
| Protection rating | IP69K |
| Protection class | III |
| Wetted material | 316L stainless steel |
| Reverse polarity | Protected |
| Overload | Protected |
| Application | Industrial process |
| Mounting | Process mounting |
| Communication | IO-Link |
| Parameterisation | IO-Link supported |
| Manufacturer | IFM |
