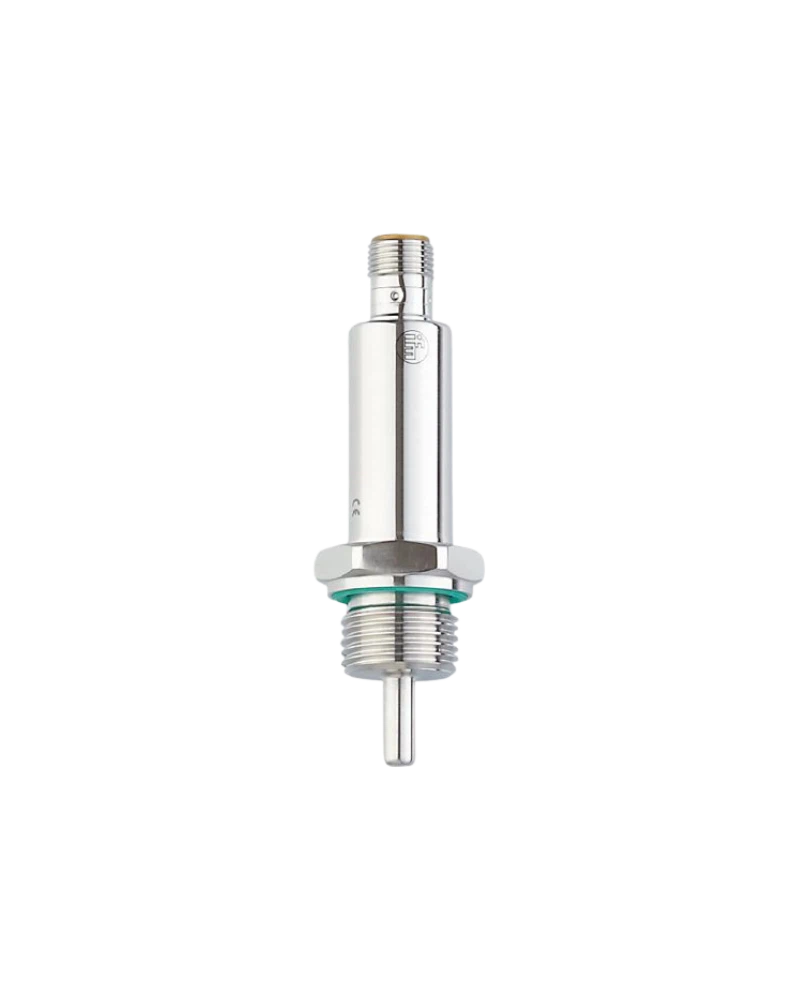

IFM TV7405 is a compact IO-Link temperature sensor designed for industrial process monitoring. It provides temperature measurement from -50 to 150 °C and uses a G 1/2 process connection with a 30 mm installation length. Two programmable switching outputs provide flexible temperature control functions. IO-Link supports parameter setting and sensor analysis. Its IP69K protection, 316L wetted parts and industrial construction make it suitable for demanding automated process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TV7405 is designed for reliable temperature monitoring in industrial process applications. It combines digital IO-Link communication with two programmable switching outputs. The sensor operates across a -50 to 150 °C measuring range. Its G 1/2 process connection supports installation in compatible process systems. The compact sensor construction allows convenient integration into automated equipment.
The sensor uses a G 1/2 process connection and a 30 mm installation length. Its two switching outputs can be configured according to system requirements. IO-Link enables parameterisation, monitoring and analysis through an automation network. High-grade 316L stainless steel is used for wetted parts. This combination provides a practical solution for process temperature measurement.
TV7405 operates with an 18 to 32 V DC supply. The TV7 family offers ±0.3 K accuracy and a -50 to 150 °C measuring range. Dynamic response is specified as 1 second T05 and 3 seconds T09. IP69K protection supports use in demanding industrial environments. The sensor also includes reverse-polarity and overload protection.
TV7405 provides temperature information for automated process control and monitoring. IO-Link simplifies sensor configuration and provides access to diagnostic information. Programmable outputs can support temperature switching and alarm functions. The G 1/2 connection provides a suitable installation method for compatible process equipment. Its robust construction supports dependable industrial operation.
IO-Link 1.1 communication
-50 to 150 °C measuring range
±0.3 K accuracy
G 1/2 process connection
30 mm installation length
Two programmable outputs
18 to 32 V DC supply
IP69K protection
316L stainless-steel wetted parts
Fast dynamic response
Reverse-polarity protection
Overload protection
Compact process design
Digital parameterisation
Process temperature monitoring
Industrial automation
Process control
Machine temperature monitoring
Production equipment
Food processing equipment
Thermal control systems
Industrial machinery
Automated production lines
Temperature alarms
Machine protection
IO-Link applications
| Specification | Details |
|---|---|
| Product code | TV7405 |
| Product type | Temperature sensor |
| Model | TV7-030CLER12-QFRVG/US |
| Brand | IFM |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Measuring range | -50 to 150 °C |
| Accuracy | ±0.3 K |
| Process connection | G 1/2 |
| Installation length | 30 mm |
| Operating voltage | 18 to 32 V DC |
| Outputs | 2 programmable switching outputs |
| Output mode | NO/NC programmable |
| Dynamic response T05 | 1 s |
| Dynamic response T09 | 3 s |
| Protection rating | IP69K |
| Protection class | III |
| Wetted parts | 316L stainless steel |
| Reverse polarity protection | Yes |
| Overload protection | Yes |
| Application | Industrial process |
| Installation | Process mounting |
| Communication | Digital IO-Link |
| Parameter setting | Supported |
| Manufacturer | IFM |
