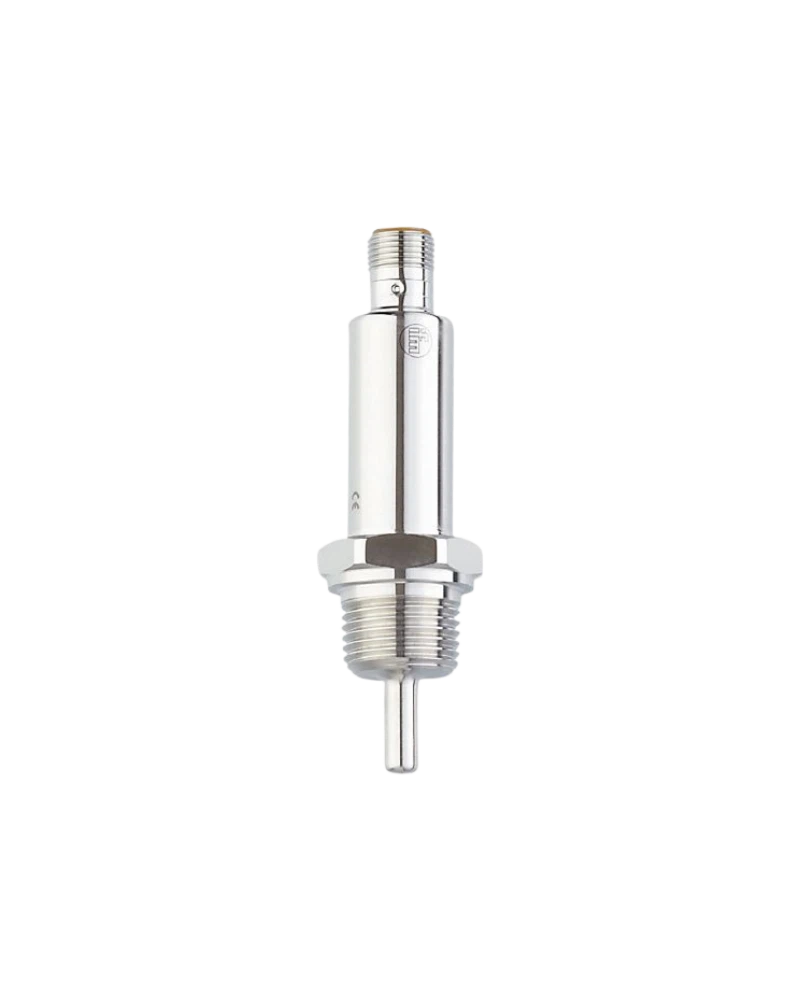

IFM TV7303 is a compact IO-Link temperature sensor designed for industrial process temperature monitoring. It provides a -50 to 150 °C measuring range with a 1/2 inch NPT process connection and 30 mm installation length. Two programmable switching outputs support flexible temperature-based control. IO-Link enables parameterisation, diagnostics and digital communication with automation systems. Its IP69K protection and 316L stainless-steel wetted parts support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TV7303 is designed for temperature monitoring in industrial processes and automated machinery. It combines compact construction with IO-Link communication and programmable switching outputs. The sensor provides temperature measurement across a -50 to 150 °C range. Its 1/2 inch NPT process connection supports suitable industrial installation requirements. The sensor is designed for reliable operation in demanding process environments.
The TV7303 uses a 1/2 inch NPT process connection and 30 mm installation length. Two switching outputs can be programmed according to the requirements of the application. IO-Link provides digital access for sensor parameterisation and analysis. The wetted components are made from high-grade 316L stainless steel. The compact design supports direct installation at process measurement points.
TV7303 operates from 18 to 32 V DC and supports a -50 to 150 °C measuring range. The TV7 family provides ±0.3 K accuracy and dynamic response of T05 1 second and T09 3 seconds. IP69K protection helps protect the sensor in demanding industrial environments. Reverse-polarity and overload protection improve operational reliability.
The sensor provides digital IO-Link communication for convenient setup and diagnostics. Its two programmable switching outputs can be used for temperature monitoring and control. The 1/2 inch NPT connection supports installation in compatible process systems. The robust stainless-steel construction suits industrial temperature measurement. TV7303 can support automated process control and thermal condition monitoring.
IO-Link 1.1
-50 to 150 °C measuring range
±0.3 K accuracy
1/2 inch NPT connection
30 mm installation length
Two programmable outputs
18 to 32 V DC supply
IP69K protection
316L stainless-steel wetted parts
1 second T05 response
3 second T09 response
Reverse-polarity protection
Overload protection
Compact industrial design
Industrial process monitoring
Temperature control
Machine automation
Process equipment
Thermal monitoring
Production machinery
Automated manufacturing
Industrial equipment protection
Machine diagnostics
Process automation
Temperature-based switching
IO-Link systems
| Specification | Details |
|---|---|
| Product code | TV7303 |
| Product type | Temperature sensor |
| Model | TV7-030FLEN12-QFRVG/US |
| Brand | IFM |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Measuring range | -50 to 150 °C |
| Accuracy | ±0.3 K |
| Process connection | 1/2 inch NPT |
| Installation length | 30 mm |
| Operating voltage | 18 to 32 V DC |
| Outputs | 2 programmable switching outputs |
| Output function | NO/NC programmable |
| Dynamic response T05 | 1 s |
| Dynamic response T09 | 3 s |
| Protection rating | IP69K |
| Protection class | III |
| Wetted material | 316L stainless steel |
| Reverse polarity | Protected |
| Overload | Protected |
| Application | Industrial processes |
| Installation | Process-mounted |
| Parameter setting | IO-Link |
| Diagnostics | IO-Link |
| Manufacturer | IFM |
