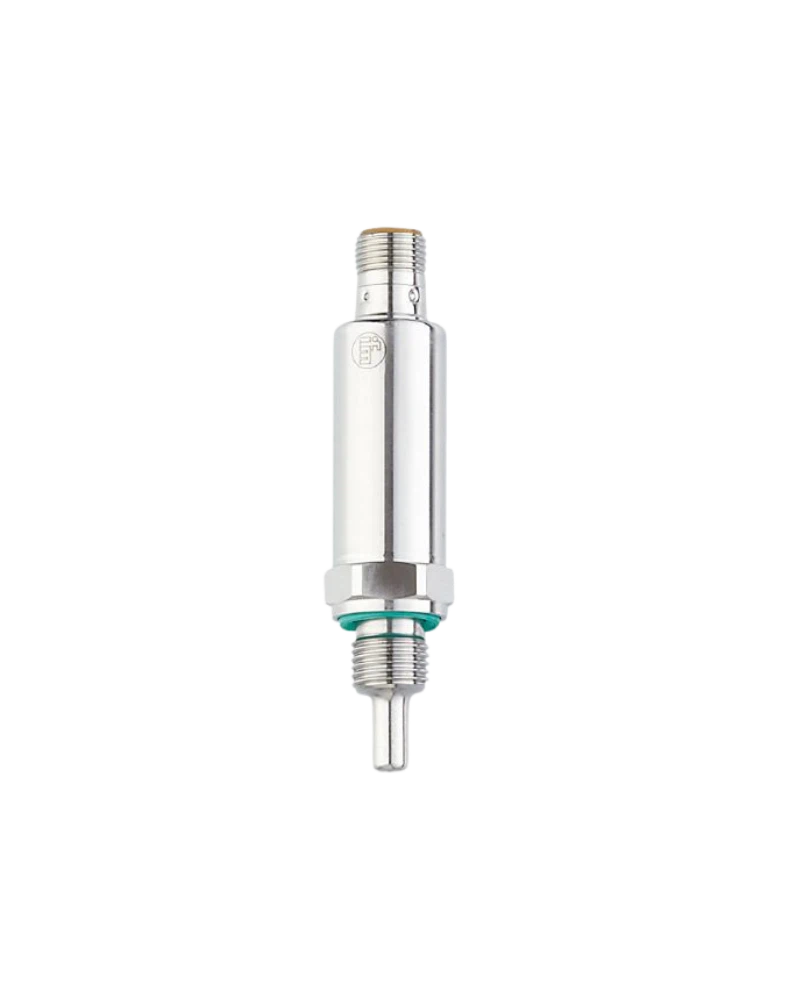

IFM TV7105 is a compact temperature sensor with IO-Link designed for accurate process temperature monitoring. It provides a -50 to 150 °C measuring range and supports two programmable switching outputs. The sensor uses a G 1/4 process connection and a compact 25 mm installation length. IO-Link enables parameter setting, diagnostics and digital communication with automation systems. Its IP69K protection and stainless-steel wetted parts make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TV7105 is an IFM compact temperature sensor designed for industrial process applications. It combines temperature measurement with IO-Link communication for convenient parameterisation and diagnostics. The sensor supports a measuring range of -50 to 150 °C. Its compact process connection allows installation in a variety of industrial systems. The product is designed for reliable temperature monitoring in automated processes.
The sensor uses a G 1/4 process connection with a 25 mm installation length. It provides two programmable switching outputs and supports IO-Link 1.1 communication. The sensor can be parameterised and monitored through the digital communication interface. Its stainless-steel 316L wetted parts are suitable for process environments. The compact design supports integration into industrial temperature monitoring systems.
TV7105 provides a -50 to 150 °C measuring range with specified accuracy of ±0.3 K. Dynamic response values are listed as T05 of 1 second and T09 of 3 seconds. IP69K protection supports use in demanding industrial environments. Reverse-polarity and overload protection contribute to dependable operation. The sensor operates from 18 to 32 V DC.
IO-Link communication allows convenient parameter setting and analysis of the sensor. The two programmable outputs can be configured for temperature-related switching functions. Its compact process connection supports installation in industrial temperature measurement points. Stainless-steel wetted parts provide a suitable construction for process applications. The sensor can support automated temperature monitoring and machine control.
IO-Link 1.1 communication
Measuring range -50 to 150 °C
Accuracy ±0.3 K
Two programmable switching outputs
G 1/4 process connection
25 mm installation length
18 to 32 V DC operating voltage
IP69K protection rating
316L stainless-steel wetted parts
T05 response 1 second
T09 response 3 seconds
Reverse-polarity protection
Overload protection
Compact industrial design
Process temperature monitoring
Industrial automation
Machine temperature monitoring
Food and beverage equipment
Process machinery
Temperature control systems
Automated production lines
Hydraulic and pneumatic equipment
Industrial process control
Machine protection
Thermal monitoring
IO-Link automation systems
| Specification | Details |
|---|---|
| Product code | TV7105 |
| Product type | Temperature sensor |
| Model | TV7-025CLER14-QFRVG/US |
| Brand | IFM |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Measuring range | -50 to 150 °C |
| Accuracy | ±0.3 K |
| Process connection | G 1/4 |
| Installation length | 25 mm |
| Operating voltage | 18 to 32 V DC |
| Output function | 2 x programmable switching outputs |
| Output type | DC PNP/NPN |
| Dynamic response T05 | 1 s |
| Dynamic response T09 | 3 s |
| Protection rating | IP69K |
| Protection class | III |
| Wetted material | Stainless steel 316L / 1.4404 |
| Reverse polarity protection | Yes |
| Overload protection | Yes |
| Application | Industrial process measurement |
| Sensor family | TV7 |
| Installation | Process connection |
| Parameter setting | IO-Link |
| Manufacturer | IFM |
