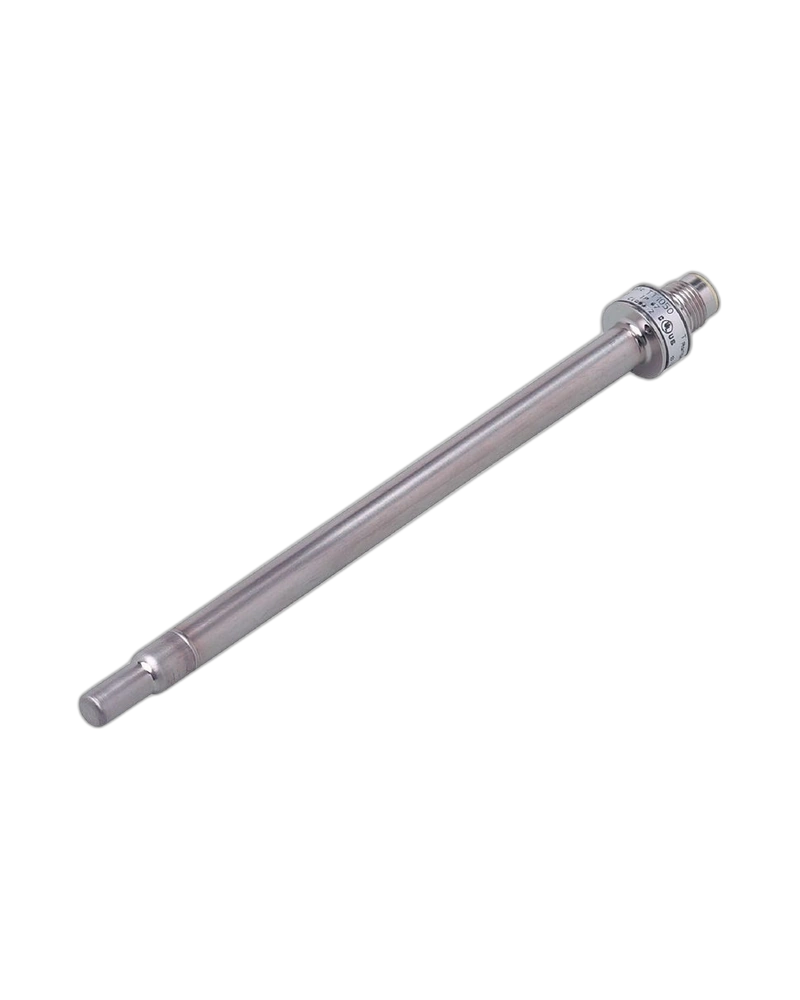

The IFM TT2081 temperature probe sensor is designed for dependable temperature measurement in industrial tanks, pipes, machinery and process systems. It features a long 260 mm probe configuration and is suitable for measuring liquids and gases. The sensor provides a measuring range of -40 to 150 °C with reliable RTD accuracy and fast response. Its IP68 and IP69K protection makes it suitable for demanding industrial environments requiring continuous temperature monitoring and process control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TT2081 is an IFM temperature probe sensor designed for applications requiring deeper insertion into process equipment. Its 260 mm probe length makes it suitable for larger tanks, vessels and process lines. The sensor uses an RTD measuring principle for reliable temperature detection. It can be integrated into automation systems to provide continuous process temperature information.
The TT2081 provides a -40 to 150 °C measuring range and an accuracy of ±(0.15 K + 0.002 × |t|). Its dynamic response is approximately 1 second for T05 and 3 seconds for T09. The probe is designed for liquids and gases and has a pressure rating of 160 bar. IP68/IP69K protection supports operation in demanding industrial environments.
The long probe construction makes TT2081 suitable for tanks and process vessels requiring deeper temperature measurement. It can be used for fluid processing, industrial machinery and process automation. Reliable RTD measurement helps maintain process conditions and identify temperature variations. Its robust protection supports demanding environments. The sensor is suitable for continuous monitoring where dependable temperature feedback is essential.
260 mm probe length
RTD temperature measurement
-40 to 150 °C measuring range
Suitable for liquids and gases
160 bar pressure rating
IP68 / IP69K protection
Fast dynamic response
Industrial probe construction
Reliable temperature measurement
Suitable for process automation
Process vessels
Large tanks
Pipeline systems
Liquid processing
Industrial machinery
Heating systems
Cooling systems
Process automation
Temperature control
Equipment protection
| Specification | Details |
|---|---|
| Product Code | TT2081 |
| Brand | IFM |
| Product Type | Temperature probe sensor |
| Model | TT-200KCED10-...../US//V |
| Sensor Principle | RTD |
| Probe Length | 260 mm |
| Measuring Range | -40 to 150 °C |
| Temperature Range | -40 to 302 °F |
| Accuracy | ±(0.15 K + 0.002 × |
| Media | Liquids and gases |
| Pressure Rating | 160 bar |
| Minimum Installation Depth | 15 mm |
| Dynamic Response T05 | 1 s |
| Dynamic Response T09 | 3 s |
| Ambient Temperature | -25 to 80 °C |
| Storage Temperature | -40 to 100 °C |
| Protection | IP68 / IP69K |
| Protection Class | III |
| Probe Construction | Cylindrical |
| Probe Diameter | Model-specific |
| Process Connection | Model-specific |
| Electrical Connection | Model-specific |
| Installation | Process equipment |
| Application | Industrial temperature measurement |
| Manufacturer | IFM electronic |
