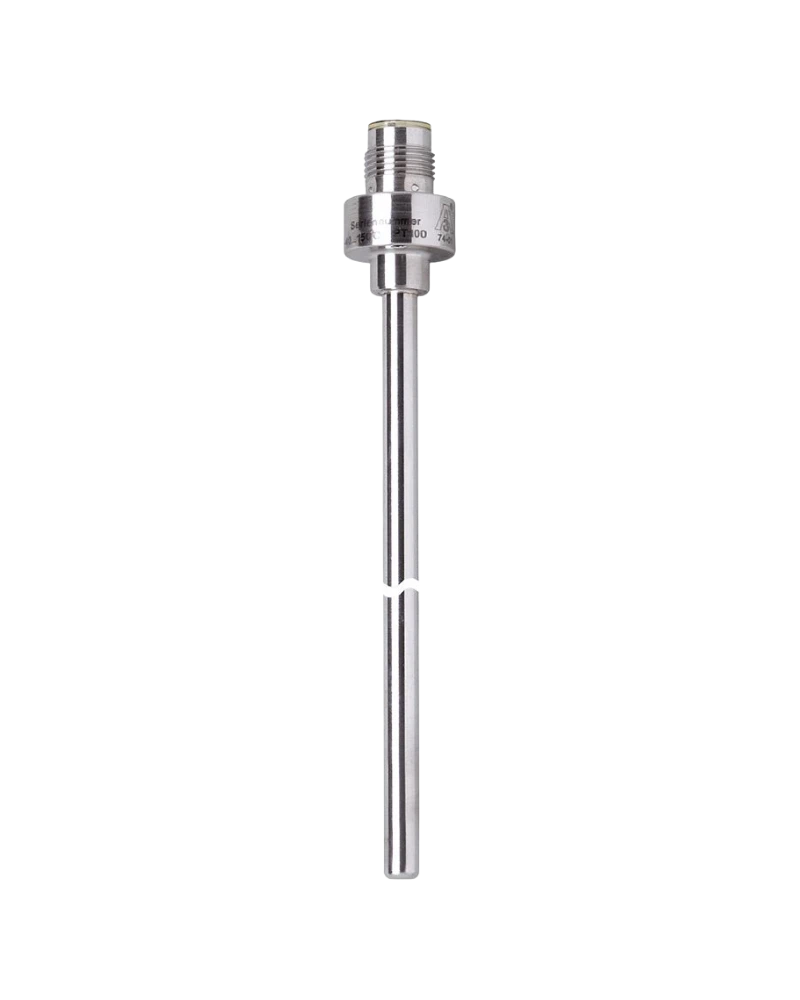

The IFM TT1250 temperature probe sensor is designed for reliable temperature measurement in industrial liquids and gases. It uses a Pt1000 Class A measuring element and provides a measuring range of -40 to 150 °C. The 160 mm stainless-steel probe offers stable process installation, while the M12 connector with gold-plated contacts supports dependable electrical connection. Its IP68/IP69K protection and fast response make it suitable for demanding industrial temperature-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TT1250 is an IFM temperature probe sensor designed for connection to suitable evaluation units. It uses a Pt1000 measuring element according to DIN EN 60751, Class A, for accurate resistance-based temperature measurement. The 160 mm probe provides extended insertion depth for tanks, pipes and process equipment. Its quick-disconnect M12 connection supports convenient installation and maintenance.
The sensor features a 6 mm stainless-steel probe with a 160 mm installation length. It measures temperatures from -40 to 150 °C and provides an accuracy of ±(0.15 K + 0.002 × |t|). Its dynamic response is approximately 1 second for T05 and 3 seconds for T09. The sensor is designed for liquids and gases and has a pressure rating of 160 bar.
TT1250 is suitable for temperature monitoring in industrial machinery, tanks, pipelines and fluid-handling equipment. Its longer probe allows temperature measurement at suitable insertion depths within process equipment. The Pt1000 element provides dependable temperature feedback for control and monitoring systems. IP68/IP69K protection supports use in demanding environments. The sensor is suitable for applications where reliable temperature information is required for process control and equipment protection.
Pt1000 Class A measuring element
-40 to 150 °C measuring range
160 mm probe length
6 mm probe diameter
160 bar pressure rating
M12 quick-disconnect connection
Gold-plated contacts
IP68 / IP69K protection
Fast T05 / T09 response
Stainless-steel construction
Industrial temperature monitoring
Tank temperature measurement
Pipeline temperature monitoring
Liquid processing systems
Gas temperature measurement
Industrial machinery
Process automation
Heating systems
Cooling systems
Equipment temperature protection
| Specification | Details |
|---|---|
| Product Code | TT1250 |
| Brand | IFM |
| Product Type | Temperature probe sensor |
| Model | TT-100KBBD06-/US//V |
| Sensor Element | 1 x Pt1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40 to 150 °C |
| Temperature Range | -40 to 302 °F |
| Probe Length | 160 mm |
| Installation Length | 160 mm |
| Probe Diameter | 6 mm |
| Process Application | Liquids and gases |
| Pressure Rating | 160 bar |
| Minimum Installation Depth | 15 mm |
| Measurement Principle | RTD |
| Accuracy | ±(0.15 K + 0.002 × |t|) |
| Dynamic Response T05 | 1 s |
| Dynamic Response T09 | 3 s |
| Ambient Temperature | -25 to 80 °C |
| Storage Temperature | -40 to 100 °C |
| Protection Rating | IP68 / IP69K |
| Protection Class | III |
| Process Connection | Probe / suitable installation system |
| Electrical Connection | M12 connector |
| Connector Contacts | Gold-plated |
| Connection | TP / TR evaluation unit |
| Wetted Material | Stainless steel 316L / 1.4404 |
| Housing Material | Stainless steel 316L / 1.4404 |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 10 g, 10–2000 Hz |
| MTTF | 22,831 years |
| Weight | Approx. 40.4 g |
| Manufacturer | IFM electronic |
