IFM TS5951 is a temperature cable sensor with a screw-in sensing element designed for precise temperature measurement on machine surfaces. The TS-500KLKM... configuration uses a compact cylindrical stainless-steel sensor with an M12 × 1.5 external thread. It provides a -30...150 °C measuring range, IP67 protection and a Pt100 Class A measuring element for reliable industrial temperature monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TS5951 is designed for precise temperature measurement on solid machine surfaces. Its screw-in construction provides secure mechanical installation, while the Pt100 Class A element provides accurate resistance-based temperature measurement. The sensor is intended for connection to a suitable evaluation unit.
The sensor contains one Pt100 measuring element according to DIN EN 60751 Class A. This RTD technology enables accurate temperature measurement by detecting changes in electrical resistance. The Class A element is suitable for applications where reliable measurement accuracy is important.

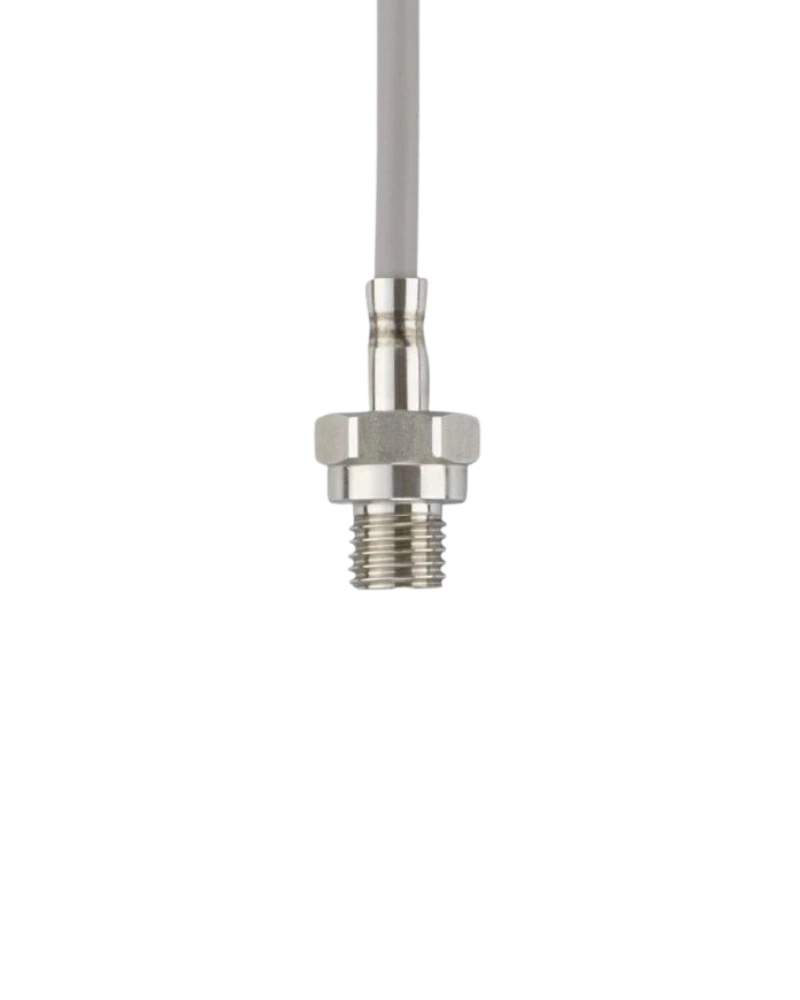

TS5951 uses a cylindrical stainless-steel sensor with an M12 × 1.5 external thread. The compact housing is designed for installation where space may be restricted. The screw-in arrangement provides stable positioning on machine surfaces and equipment.
The sensor provides a -30...150 °C measuring range, accuracy of ±(0.15 K + 0.002 × |t|), T05/T09 response times of 4/12 seconds and IP67 protection. IFM documentation lists a weight of 214.2 g and stainless-steel construction.
Machine surface temperature measurement
Industrial machinery
Equipment monitoring
Motor temperature monitoring
Machine maintenance
Automation systems
Production equipment
Industrial temperature control
IFM TS5951
TS-500KLKM...
Pt100 Class A
M12 × 1.5 external thread
-30...150 °C measuring range
IP67 protection
Stainless-steel construction
Compact cylindrical design
Accuracy ±(0.15 K + 0.002 × |t|)
T05/T09 4/12 seconds
| Specification | Details |
|---|---|
| Product Code | TS5951 |
| Product Type | Temperature cable sensor |
| Manufacturer | IFM |
| Model | TS-500KLKM... |
| Category | Temperature Sensor |
| Measuring Element | 1 x Pt100 |
| Sensor Class | Class A |
| Standard | DIN EN 60751 |
| Application | Solid-body temperature measurement |
| Measuring Range | -30...150 °C |
| Accuracy | ±(0.15 K + 0.002 × |
| T05 Response | 4 s |
| T09 Response | 12 s |
| Protection | IP67 |
| Protection Class | III |
| Process Connection | M12 × 1.5 external thread |
| Sensor Design | Cylindrical |
| Material | Stainless steel 1.4301 / 304 |
| Weight | 214.2 g |
| Pack Quantity | 1 pc |
| Measurement Principle | RTD |
| Installation | Screw-in |
| Evaluation | External evaluation unit |
| Cable | Cable-connected |
| MTTF | 12683.9 years |
