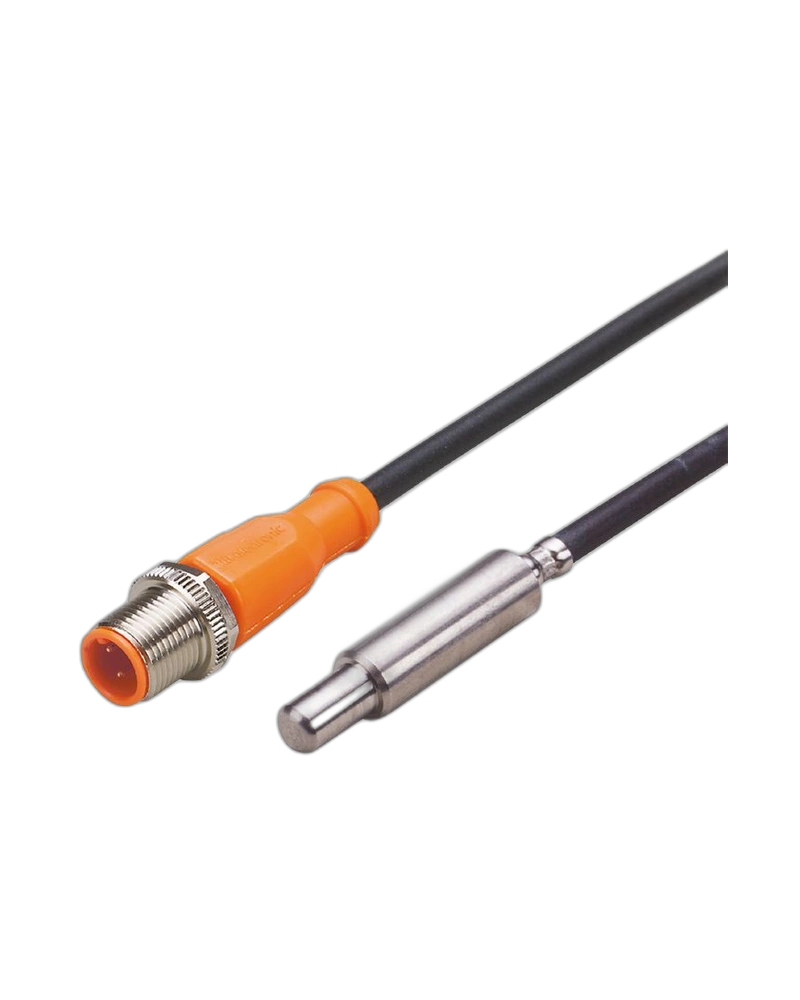

IFM TS5089 is a temperature cable sensor with process connection designed for industrial temperature measurement. The TS-500KLKD10-............./US/ configuration uses a process-connected probe arrangement suitable for demanding temperature monitoring applications. It is intended for integration with compatible evaluation equipment and can be used in machinery, process systems, production equipment and industrial automation where dependable temperature measurement is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TS5089 provides a process-connected temperature sensing solution for industrial applications. The sensor is designed to position the measurement element at the required process location while providing a cable connection to the evaluation system. This allows practical integration into industrial monitoring and control systems.
The sensor is intended for direct temperature measurement in industrial process environments. Its process connection supports secure installation into compatible equipment. The configuration is suitable for applications where temperature must be measured continuously and reliably.
The cabled construction provides flexibility between the sensing point and evaluation equipment. The sensor can be installed into suitable machinery, piping or process equipment. This makes it useful for temperature monitoring systems where the evaluation electronics are installed separately.
IFM’s selection guide identifies TS5089 as an industrial Ø10 mm temperature sensor with PUR cable, M12 connection and 5 m cable. The listed configuration has a -40...90 °C measuring range.
Process temperature monitoring
Industrial machinery
Pipelines
Production equipment
Tanks and vessels
Temperature control
Automation systems
Machine monitoring
IFM TS5089
TS-500KLKD10-............./US/
Process connection
10 mm sensor configuration
5 m PUR cable
M12 connection
-40...90 °C listed configuration
Industrial temperature measurement
External evaluation connection
Suitable for process automation
| Specification | Details |
|---|---|
| Product Code | TS5089 |
| Product Type | Temperature cable sensor |
| Manufacturer | IFM |
| Model | TS-500KLKD10-............./US/ |
| Category | Temperature Sensor |
| Sensor Type | Process-connected temperature sensor |
| Sensor Diameter | 10 mm configuration |
| Cable Length | 5 m |
| Cable Material | PUR |
| Connector | M12 |
| Measuring Range | -40...90 °C |
| Application | Industrial temperature measurement |
| Process Connection | Process connection |
| Measurement Technology | RTD |
| Evaluation | External evaluation unit |
| Installation | Process installation |
| Protection | IP67 common TS-series data |
| Protection Class | III |
| Accuracy | Not specified |
| Response Time | Not specified |
| Sensor Material | Not specified |
| Cable Shielding | Not specified |
| Electrical Data | Not specified |
| Mounting | Process connection |
| Pack Quantity | Not specified |
