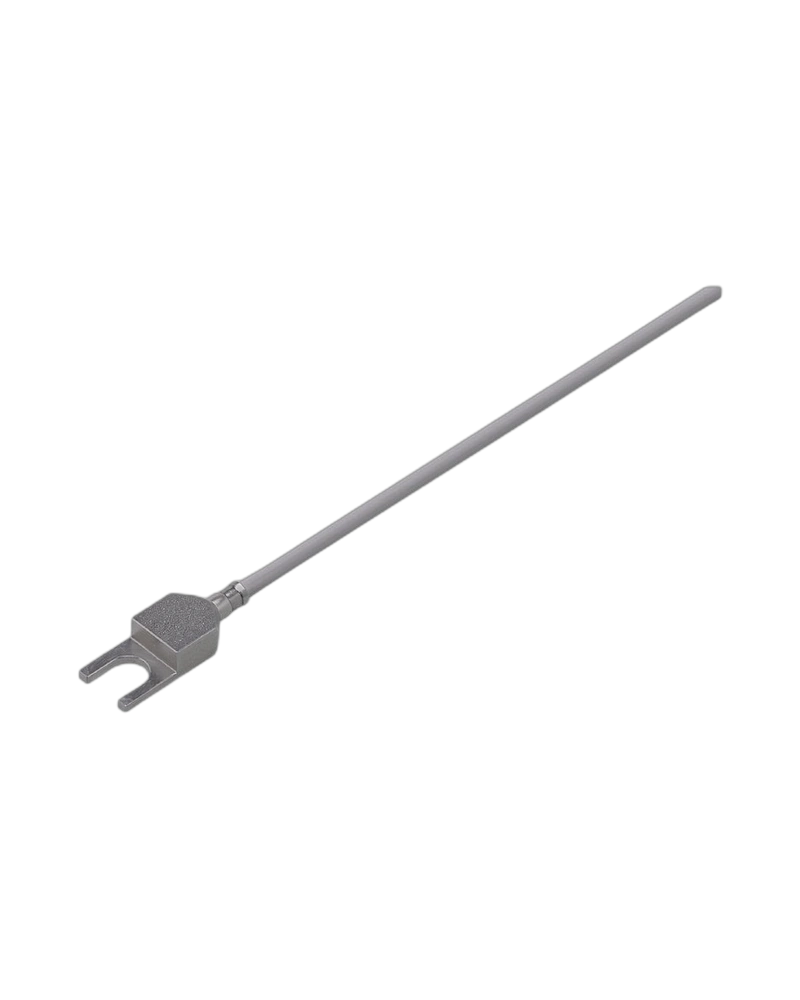

IFM TS502A is a temperature cable sensor with a bolt-on sensing element designed for industrial temperature measurement. The TS-500KEKD06...../5M/3D/3G configuration uses a 5 m cable and is intended for applications requiring surface-mounted temperature monitoring. Its bolt-on construction supports convenient installation, while the specialized 3D/3G configuration is suitable for appropriately certified hazardous-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TS502A provides a bolt-on temperature sensing solution for industrial equipment. Instead of using a conventional threaded probe, the sensing element is mounted directly onto the required surface. This makes it useful for applications where surface contact measurement is preferred.
The bolt-on sensor configuration provides a compact mechanical arrangement for mounting on machine surfaces. The design can simplify installation on equipment where threaded process connections are unavailable or undesirable. It is particularly useful for monitoring accessible machine surfaces.
The TS502A uses a 5 m cable, allowing flexible routing between the sensing point and evaluation equipment. The longer cable is useful for large machinery or installations where the evaluation unit is positioned some distance from the measurement location.
The TS502A is identified in IFM selection information as an ATEX bolt-on sensor configuration with a -20...115 °C measuring range and 5 m silicone cable.
Machine surface temperature monitoring
Hazardous-area machinery
Industrial equipment
Motor housings
Production machinery
Temperature monitoring
Condition monitoring
Process automation
IFM TS502A
TS-500KEKD06...../5M/3D/3G
Bolt-on temperature sensor
5 m cable
Silicone cable configuration
ATEX configuration
Surface temperature measurement
Compact mounting design
Industrial temperature monitoring
Suitable for evaluation systems
| Specification | Details |
|---|---|
| Product Code | TS502A |
| Product Type | Temperature cable sensor |
| Manufacturer | IFM |
| Model | TS-500KEKD06...../5M/3D/3G |
| Category | Temperature Sensor |
| Sensor Type | Bolt-on sensor |
| Cable Length | 5 m |
| Cable Material | Silicone |
| Measuring Range | -20...115 °C |
| Application | Machine surface measurement |
| Hazardous Area | ATEX configuration |
| Installation | Bolt-on |
| Sensor Element | RTD configuration |
| Connection | Cable |
| Evaluation | External evaluation unit |
| Housing Design | Bolt-on |
| Protection | Not specified |
| Protection Class | Not specified |
| Accuracy | Not specified |
| Response Time | Not specified |
| Sensor Material | Not specified |
| Cable Shielding | Not specified |
| Electrical Data | Not specified |
| Mounting Method | Surface bolt-on |
| Pack Quantity | Not specified |
