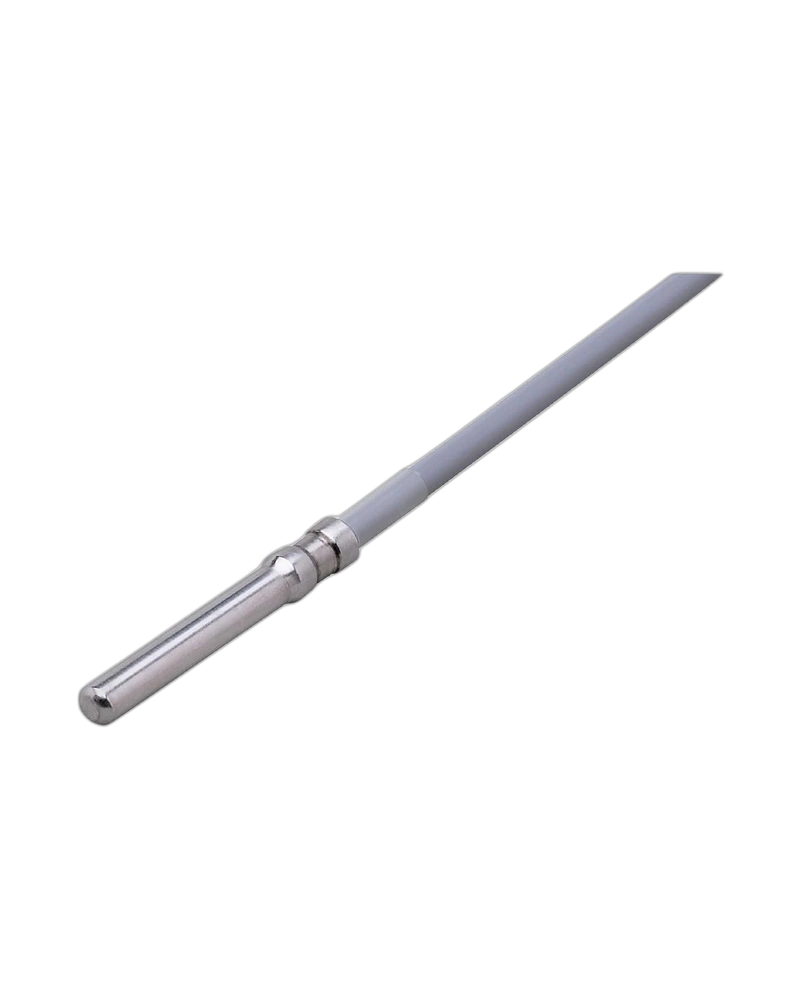

IFM TS325A is a temperature cable sensor with process connection designed for industrial temperature measurement. The TS-300KEKD06...../3M/3D/3G configuration uses a compact 5 mm probe and a 3 m shielded silicone cable. It is designed for applications requiring process temperature measurement and hazardous-area suitability. The stainless-steel wetted construction and process connection support reliable installation in demanding industrial systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TS325A provides a process-connected temperature measurement solution for industrial equipment. Its compact probe is designed for insertion into the measurement location, while the cable provides connection to suitable evaluation equipment. The sensor is intended for demanding applications where reliable temperature monitoring is required.
The sensor uses a 5 mm probe and a process connection suitable for industrial installation. IFM documentation identifies a Ø5 mm clamping adapter and stainless-steel 316L material for parts contacting the medium. This construction supports hygienic and demanding process environments where robust materials are required.
TS325A is supplied with a 3 m shielded silicone cable. The shield is not connected to the housing according to IFM documentation. The three conductors are identified as WH, BK and RD.
The sensor is suitable for industrial process temperature monitoring and specialized hazardous-area applications. IFM selection information identifies the TS325A as an ATEX configuration with a -20...80 °C range and 3 m silicone cable.
Process temperature measurement
Industrial machinery
Tanks and vessels
Piping systems
Hazardous-area applications
Production equipment
Process automation
Temperature monitoring
IFM TS325A
TS-300KEKD06...../3M/3D/3G
5 mm probe diameter
3 m shielded silicone cable
Process connection
Stainless steel 316L wetted material
Clamping adapter
ATEX-oriented configuration
Three-wire cable
Industrial process temperature monitoring
| Specification | Details |
|---|---|
| Product Code | TS325A |
| Product Type | Temperature cable sensor |
| Manufacturer | IFM |
| Model | TS-300KEKD06...../3M/3D/3G |
| Category | Temperature Sensor |
| Probe Diameter | 5 mm |
| Cable Length | 3 m |
| Cable Material | Silicone |
| Cable Type | Shielded |
| Process Connection | Clamping adapter Ø5 mm |
| Wetted Material | Stainless steel 1.4404 / 316L |
| Application | Industrial process temperature measurement |
| Hazardous Area | ATEX configuration |
| Measuring Range | -20...80 °C according to selection guide |
| Sensor Element | RTD configuration |
| Conductors | WH, BK, RD |
| Shield Connection | Shield not connected to housing |
| Protection | Not specified here |
| Protection Class | Not specified here |
| Accuracy | Accuracy applies to flowing water |
| Evaluation | External evaluation unit |
| Installation | Process connection |
| Sensor Construction | Cylindrical probe |
| Electrical Connection | 3-wire cable |
| Pack Quantity | 1 pc |
| Approval | 3D/3G configuration |
