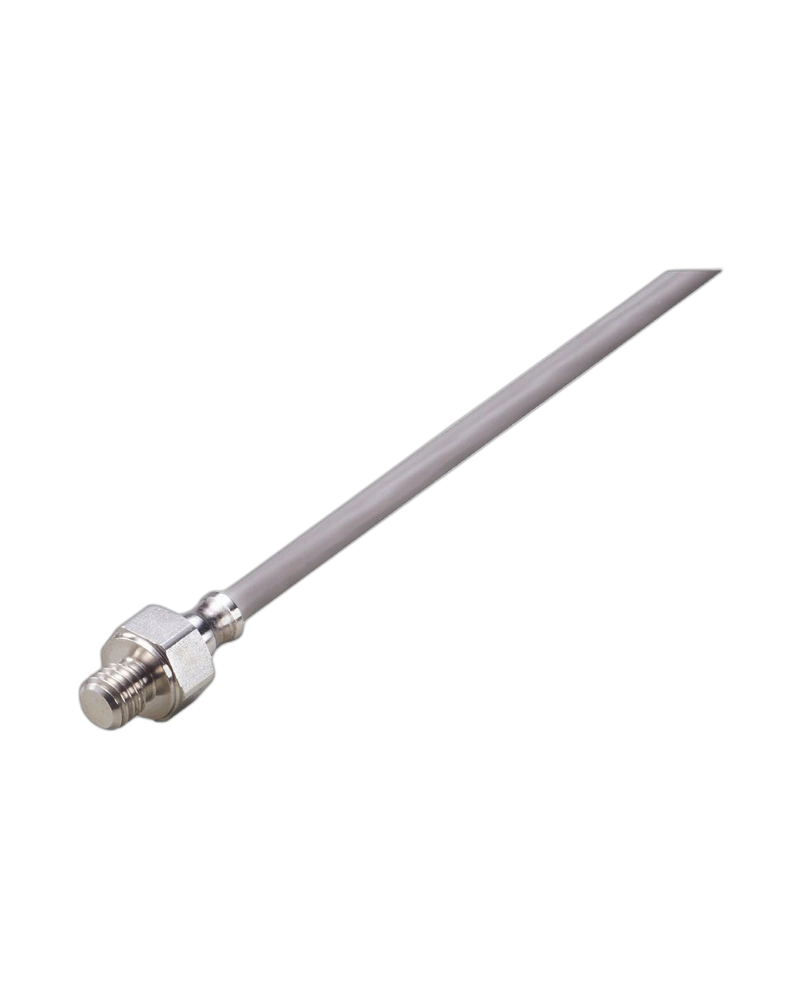

IFM TS285A is a temperature cable sensor with an M8 screw-in sensor designed for precise temperature measurement on machine surfaces. The TS-200KLKM08..../3D/3G version is intended for applications in potentially explosive areas and provides a compact housing for restricted installation spaces. It is designed for high accuracy across the measuring range and is suitable for demanding industrial temperature monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TS285A is designed for industrial temperature measurement where compact installation and hazardous-area suitability are required. The screw-in sensor can be mounted directly on compatible machine surfaces. Its configuration is intended to provide accurate temperature measurement while supporting integration into suitable evaluation systems.
The TS285A is specifically identified by IFM as suitable for applications in areas with explosion hazards. This makes it suitable for appropriately certified industrial installations where temperature monitoring must be performed under hazardous-area requirements.
The M8 screw-in design provides direct mounting on machine surfaces. Its compact housing is useful where installation space is limited. The construction allows the sensor to be positioned close to the measurement point for accurate surface temperature monitoring.
TS285A is designed for high measurement accuracy throughout its measuring range. The sensor provides a practical combination of compact mechanical construction and hazardous-area suitability, making it useful for specialized industrial machinery and process environments.
Hazardous-area temperature monitoring
Industrial machinery
Machine surface measurement
Process equipment
Explosion-risk industrial areas
Automation equipment
Condition monitoring
Industrial maintenance
IFM TS285A
TS-200KLKM08..../3D/3G
M8 screw-in sensor
Temperature cable sensor
Hazardous-area suitability
Compact housing
Precise temperature measurement
Machine surface monitoring
Restricted-space installation
Industrial temperature monitoring
| Specification | Details |
|---|---|
| Product Code | TS285A |
| Product Type | Temperature cable sensor |
| Manufacturer | IFM |
| Model | TS-200KLKM08..../3D/3G |
| Category | Temperature Sensor |
| Sensor Type | Screw-in sensor |
| Screw-In Size | M8 |
| Measuring Element | Pt1000 configuration indicated by IFM selection guide |
| Application | Machine surface measurement |
| Hazardous Area | Designed for hazardous-area applications |
| Temperature Range | -20...115 °C according to IFM selection guide |
| Cable Type | Silicone |
| Cable Length | 2 m |
| Connection | Configuration-dependent |
| Protection | Not specified here |
| Installation | Screw-in |
| Housing | Compact |
| Sensor Material | Not specified |
| Measurement Principle | RTD |
| Accuracy | High accuracy across measuring range |
| Evaluation | External evaluation system |
| Electrical Data | Not specified |
| Response Time | Not specified |
| Probe Diameter | M8 configuration |
| Pack Quantity | Not specified |
| Approval Details | 3D/3G configuration |
