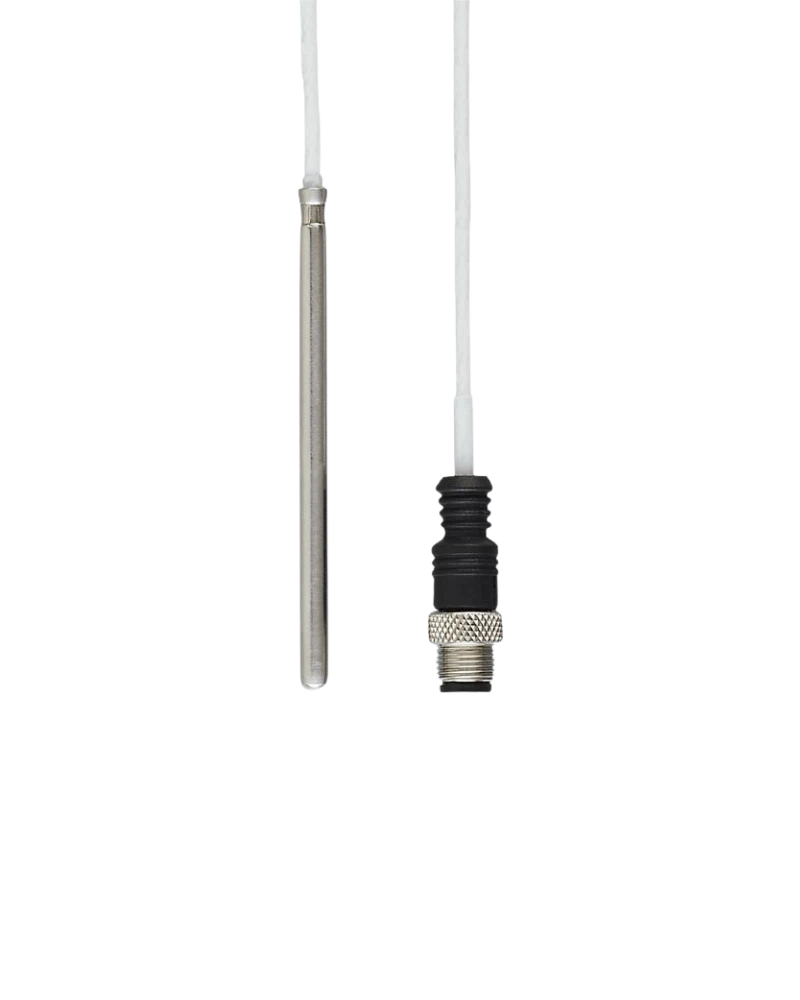

The TS2452 is a long-probe Pt 100 temperature sensor designed for high-temperature process measurement. It supports an exceptionally broad -100...600 °C measuring range. Its Ø6 mm clamp adapter and 150 mm probe provide deeper immersion into tanks, vessels and pipelines. The Pt 100 Class A sensing element provides stable and accurate temperature measurement. A 2 m PTFE cable rated up to 250 °C and M12 connector provide reliable process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 150 mm probe length allows deeper positioning of the sensing element inside process media. The sensor supports liquid and gas temperature measurement. Its Pt 100 Class A element provides repeatable resistance-based measurement. The specified accuracy is ±(0.15 K + 0.002 × |t|). T05/T09 dynamic response is specified at 12/34 seconds.
The TS2452 supports temperatures from -100 to 600 °C. Stainless-steel 316Ti provides robust wetted-part construction. PFA/PTFE materials are used in the specified sensor construction. The Ø6 mm probe provides a compact sensing profile. This combination supports demanding industrial thermal processes.
The Ø6 mm clamp adapter provides flexible process installation. The installation length is 100 mm, or 150 mm for medium temperatures below 200 °C according to the specified conditions. The 2 m PTFE cable is temperature resistant up to 250 °C. The M12 connector supports industrial wiring. IP67 protection is specified.
Pt 100 Class A
-100...600 °C measuring range
150 mm probe length
Ø6 mm clamp adapter
100/150 mm installation length
15 mm minimum installation depth
2 m PTFE cable
250 °C cable temperature resistance
M12 connector
Stainless steel 316Ti
IP67 protection
Protection Class III
High-temperature design
Deep immersion
External evaluation
Process vessels
Storage tanks
High-temperature pipelines
Heating systems
Thermal process equipment
Industrial machinery
Chemical processing
Process skids
Liquid monitoring
Gas monitoring
Temperature control
PLC monitoring
Industrial automation
Equipment protection
Thermal management
| Specification | Details |
|---|---|
| Product Model | TS2452 |
| Type Code | TS-200KLKD06 .../US |
| Measuring Element | Pt 100 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -100...600 °C |
| Probe Length | 150 mm |
| Process Connection | Clamp adapter Ø6 mm |
| Probe Diameter | 6 mm |
| Installation Length | 100 mm |
| High-Temperature Installation | 150 mm below 200 °C |
| Minimum Installation Depth | 15 mm |
| Media | Liquids and gases |
| Accuracy | ±(0.15 K + 0.002 × |
| T05 | 12 s |
| T09 | 34 s |
| Cable Length | 2 m |
| Cable Material | PTFE |
| Cable Temperature Rating | Up to 250 °C |
| Connector | M12 |
| Housing Material | Stainless steel 316Ti |
| Wetted Material | Stainless steel 316Ti |
| Protection | IP67 |
| Pack Quantity | 1 pcs |
