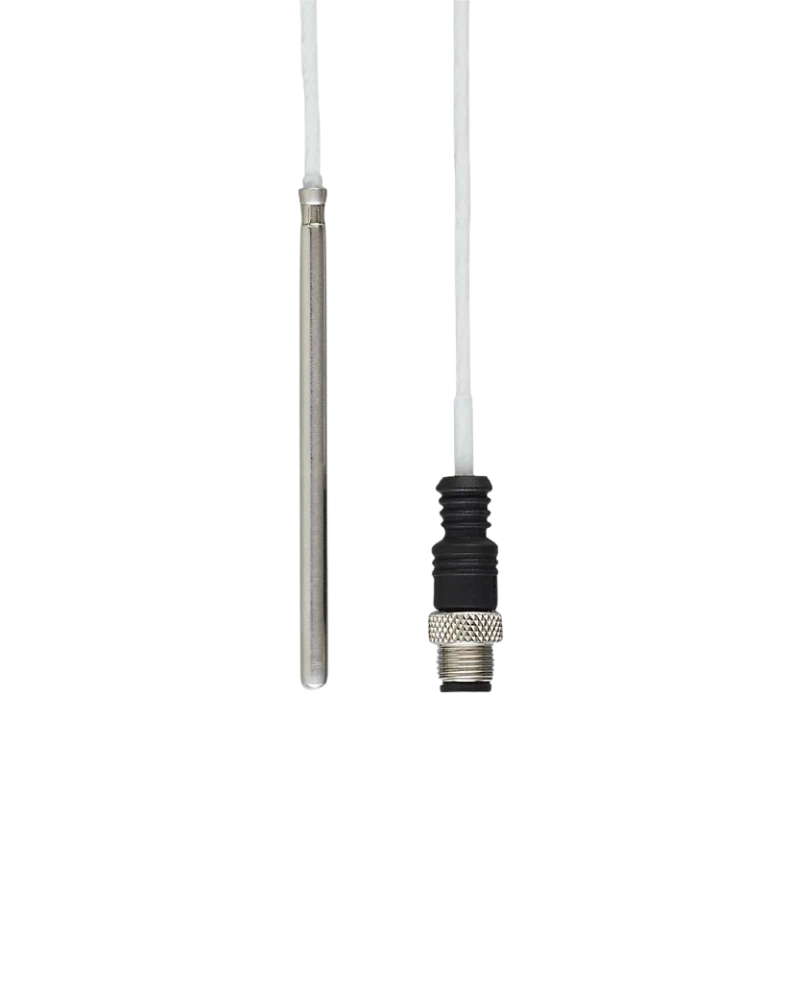

The TS2451 is a high-temperature cabled Pt 100 sensor designed for demanding industrial process applications. It provides a very wide -100...600 °C measuring range for liquids and gases. The Ø6 mm clamp adapter and 100 mm probe provide flexible installation into process equipment. Its Pt 100 Class A sensing element delivers accurate and repeatable temperature measurement. A 2 m PTFE cable rated up to 250 °C and M12 connector support reliable industrial integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TS2451 supports measurement from -100 to 600 °C. Its Pt 100 Class A element follows DIN EN 60751. The specified accuracy is ±(0.15 K + 0.002 × |t|). Dynamic response is specified at T05/T09 of 12/34 seconds. The wide measuring range makes it suitable for high-temperature industrial processes.
The sensor uses a Ø6 mm clamp adapter for flexible process installation. Its probe length is 100 mm. The installation length is 50 mm, or 100 mm for medium temperatures below 200 °C according to the specified conditions. The sensor has a minimum installation depth of 15 mm. Stainless-steel 316Ti wetted construction provides robust process contact.
The TS2451 uses a 2 m PTFE cable with temperature resistance up to 250 °C. The M12 connector provides reliable industrial electrical integration. IP67 protection supports suitable industrial installations. Protection Class III is specified. The sensor is intended for use with an external evaluation unit.
Pt 100 Class A
DIN EN 60751
-100...600 °C range
Ø6 mm clamp adapter
100 mm probe length
50/100 mm installation length depending on medium temperature
15 mm minimum depth
2 m PTFE cable
Cable temperature resistance up to 250 °C
M12 connector
Stainless steel 316Ti
IP67 protection
High-temperature measurement
External evaluation
Industrial process design
High-temperature pipelines
Process vessels
Heating systems
Industrial furnaces
Thermal process equipment
Process skids
Chemical equipment
Industrial machinery
Liquid temperature monitoring
Gas temperature monitoring
Process automation
PLC monitoring
Thermal control
Equipment protection
Industrial temperature measurement
| Specification | Details |
|---|---|
| Product Model | TS2451 |
| Type Code | TS-200KLKD06 .../US |
| Measuring Element | Pt 100 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -100...600 °C |
| Probe Length | 100 mm |
| Process Connection | Clamp adapter Ø6 mm |
| Probe Diameter | 6 mm |
| Installation Length | 50 mm |
| High-Temperature Installation | 100 mm below 200 °C |
| Minimum Installation Depth | 15 mm |
| Media | Liquids and gases |
| Accuracy | ±(0.15 K + 0.002 × |
| T05 | 12 s |
| T09 | 34 s |
| Cable Length | 2 m |
| Cable Material | PTFE |
| Cable Temperature Rating | Up to 250 °C |
| Connector | M12 |
| Housing Material | Stainless steel 316Ti |
| Wetted Material | Stainless steel 316Ti |
| Protection | IP67 |
| Pack Quantity | 1 pcs |
