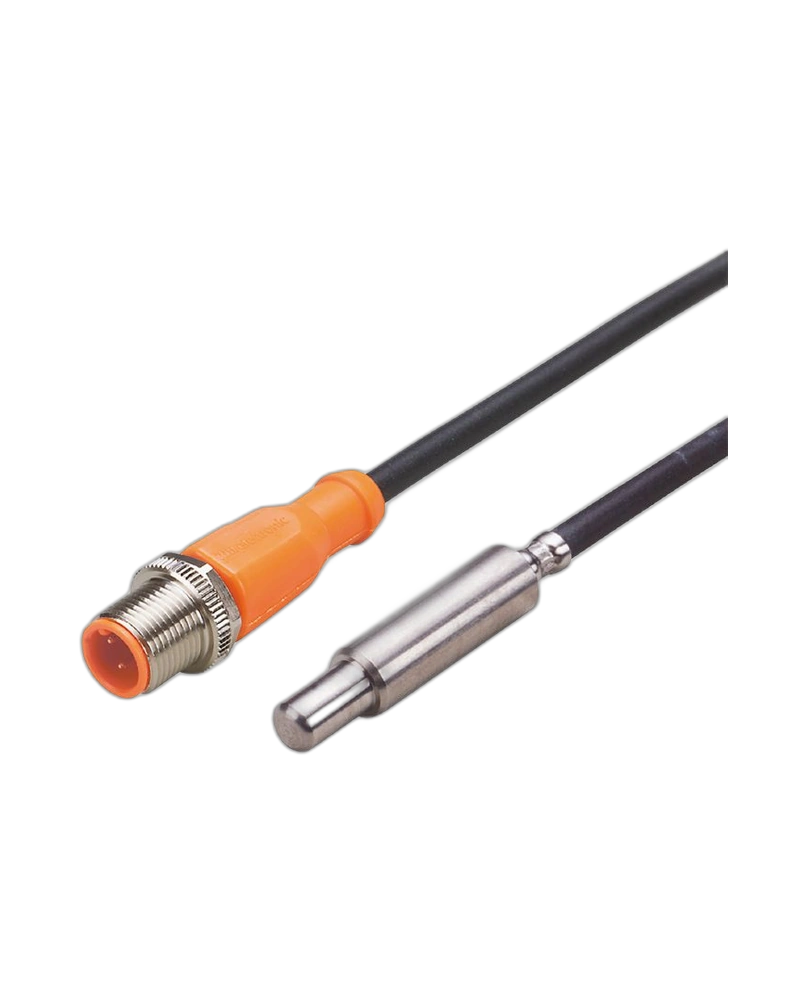

The TS2089 is a cabled Pt 100 temperature sensor designed for accurate process-temperature measurement. It uses a Class A RTD element according to DIN EN 60751. The Ø10 mm clamp adapter provides convenient installation into compatible process systems. Its 42 mm installation length and -40...90 °C measuring range make it suitable for many industrial temperature applications. The 2 m PUR cable and gold-plated M12 contacts provide reliable connection to external evaluation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 100 Class A element provides reliable resistance-based temperature measurement. Its specified accuracy is ±(0.15 K + 0.002 × |t|). The sensor provides repeatable temperature data for process monitoring. T05/T09 dynamic response is specified at 6/25 seconds. A compatible evaluation unit can convert the sensor signal into analogue or digital process information.
The Ø10 mm clamp adapter provides flexible mounting into process equipment. The 42 mm installation length provides practical immersion into the measured medium. The sensor is designed for liquids and gases. Stainless-steel wetted parts provide durability in industrial applications. A minimum installation depth of 15 mm is specified.
The sensor uses a 2 m PUR cable for flexible routing around machinery and process equipment. The M12 connector provides a standard industrial interface. Gold-plated contacts help provide reliable electrical connectivity. IP67 protection supports appropriate industrial installations. The sensor can be connected to suitable external evaluation units.
Pt 100 Class A
-40...90 °C
Ø10 mm clamp adapter
42 mm installation length
15 mm minimum installation depth
2 m PUR cable
M12 connector
Gold-plated contacts
Stainless-steel construction
IP67 protection
Protection Class III
External evaluation
6 s T05 response
25 s T09 response
Industrial RTD sensing
Process piping
Liquid temperature monitoring
Gas temperature monitoring
Cooling systems
Heating systems
Hydraulic equipment
Pumps
Compressors
Machine tools
Industrial machinery
Process automation
Temperature alarms
PLC monitoring
Equipment protection
Thermal management
| Specification | Details |
|---|---|
| Product Model | TS2089 |
| Type Code | TS-200KLKDI10-............/US/ |
| Sensor Type | Cabled RTD |
| Measuring Element | Pt 100 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...90 °C |
| Process Connection | Clamp adapter Ø10 mm |
| Probe Diameter | 10 mm |
| Installation Length | 42 mm |
| Probe Length | 50 mm |
| Minimum Installation Depth | 15 mm |
| Media | Liquids and gases |
| Accuracy | ±(0.15 K + 0.002 × |
| T05 | 6 s |
| T09 | 25 s |
| Cable Length | 2 m |
| Cable Material | PUR |
| Connector | M12 |
| Contacts | Gold-plated |
| Housing | Cylindrical |
| Housing Material | Stainless steel |
| Protection | IP67 |
| Pack Quantity | 1 pcs |
