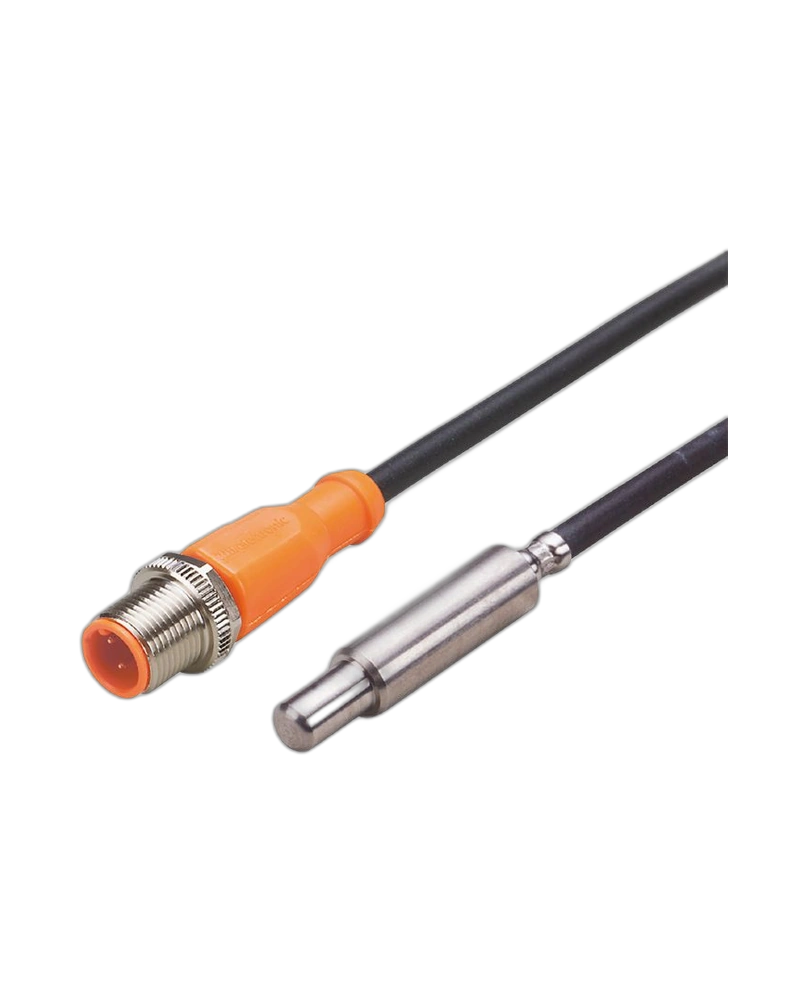

The TS2069 is a robust cable temperature sensor designed for process-temperature measurement in liquids and gases. It uses a Pt 1000 Class A sensing element according to DIN EN 60751. The Ø10 mm clamp adapter and 42 mm installation length provide secure and flexible process installation. The sensor supports a -40...90 °C measuring range and a 160 bar pressure rating. Its 2 m PUR cable and gold-plated M12 contacts provide reliable industrial connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A sensing element provides stable and repeatable temperature measurement. The sensor is designed for applications requiring reliable process-temperature monitoring. Its accuracy specification is ±(0.15 K + 0.002 × |t|). The dynamic response is specified at T05/T09 values of 6/25 seconds. The measurement signal can be processed by a suitable external evaluation unit.
The Ø10 mm clamp adapter provides a practical process connection for compatible mounting arrangements. The 42 mm installation length allows the sensing element to reach the required measurement position. The sensor is suitable for liquids and gases. Its pressure rating reaches 160 bar within specified conditions. Stainless-steel construction supports demanding industrial installations.
The 2 m PUR cable provides flexibility for machine and process installation. The M12 connector uses gold-plated contacts for dependable electrical connection. IP67 protection supports use in suitable industrial environments. Protection Class III provides the specified electrical safety classification. The sensor is suitable for connection to compatible IFM evaluation electronics.
Pt 1000 Class A
DIN EN 60751
-40...90 °C measuring range
160 bar pressure rating
Ø10 mm clamp adapter
42 mm installation length
2 m PUR cable
M12 connector
Gold-plated contacts
Stainless-steel construction
IP67 protection
Protection Class III
External evaluation
High measurement accuracy
Liquid and gas compatibility
Hydraulic systems
Process piping
Cooling circuits
Heating equipment
Pumps
Compressors
Industrial machinery
Process vessels
Liquid monitoring
Gas monitoring
Temperature alarms
PLC temperature control
Process automation
Machine protection
Industrial monitoring
The Pt 1000 Class A sensing element provides stable and repeatable temperature measurement. The sensor is designed for applications requiring reliable process-temperature monitoring. Its accuracy specification is ±(0.15 K + 0.002 × |t|). The dynamic response is specified at T05/T09 values of 6/25 seconds. The measurement signal can be processed by a suitable external evaluation unit.
The Ø10 mm clamp adapter provides a practical process connection for compatible mounting arrangements. The 42 mm installation length allows the sensing element to reach the required measurement position. The sensor is suitable for liquids and gases. Its pressure rating reaches 160 bar within specified conditions. Stainless-steel construction supports demanding industrial installations.
The 2 m PUR cable provides flexibility for machine and process installation. The M12 connector uses gold-plated contacts for dependable electrical connection. IP67 protection supports use in suitable industrial environments. Protection Class III provides the specified electrical safety classification. The sensor is suitable for connection to compatible IFM evaluation electronics.
Pt 1000 Class A
DIN EN 60751
-40...90 °C measuring range
160 bar pressure rating
Ø10 mm clamp adapter
42 mm installation length
2 m PUR cable
M12 connector
Gold-plated contacts
Stainless-steel construction
IP67 protection
Protection Class III
External evaluation
High measurement accuracy
Liquid and gas compatibility
Hydraulic systems
Process piping
Cooling circuits
Heating equipment
Pumps
Compressors
Industrial machinery
Process vessels
Liquid monitoring
Gas monitoring
Temperature alarms
PLC temperature control
Process automation
Machine protection
Industrial monitoring
