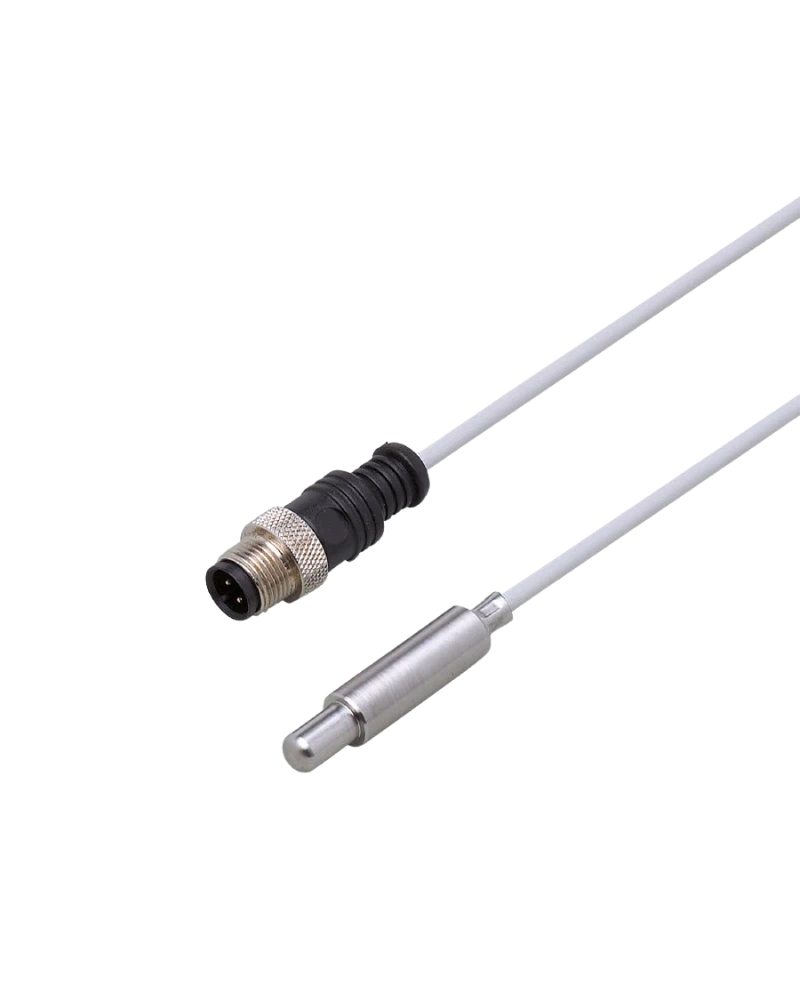

The TS2056 is a precision cable temperature sensor designed for accurate measurement of liquids and gases in industrial process applications. It uses a Pt 100 Class A sensing element for stable and repeatable temperature measurement. The Ø10 mm clamp-style process connection allows flexible installation with compatible mounting arrangements. Its PTFE cable provides reliable performance in temperature-sensitive environments. The sensor is intended for connection to a compatible external evaluation unit.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TS2056 uses a Pt 100 Class A RTD element according to DIN EN 60751 for dependable temperature measurement. The resistance-based sensing principle provides stable measurement performance over the specified operating range. The sensor is suitable for continuous temperature monitoring in industrial processes. Its precision design helps maintain consistent measurement results. A compatible evaluation unit can convert the RTD signal into useful automation data.
The sensor uses a clamp adapter with a 10 mm diameter for convenient process integration. Its 42 mm installation length allows practical immersion into process media. Stainless-steel wetted construction provides good mechanical and chemical durability. The design can be adapted using suitable mounting accessories or protective arrangements. This makes the sensor suitable for tanks, pipes and process machinery.
The TS2056 is supplied with a 2 m PTFE cable and M12 connector arrangement. The cable provides flexibility when routing the sensor away from the evaluation electronics. M12 connectivity supports reliable industrial electrical integration. The sensor can be connected to compatible IFM temperature evaluation units. Its IP67 protection supports use in suitable industrial environments.
Pt 100 Class A sensing element
DIN EN 60751 compliant
-40...250 °C measuring range
Ø10 mm clamp adapter
42 mm installation length
2 m PTFE cable
M12 connector
Stainless-steel sensing construction
IP67 protection
Protection Class III
External evaluation unit compatible
Liquid and gas measurement
Industrial process installation
Compact sensing design
Reliable RTD measurement
Process pipelines
Tanks and vessels
Cooling systems
Heating systems
Hydraulic equipment
Industrial machinery
Pumps
Compressors
Process skids
Liquid temperature monitoring
Gas temperature monitoring
PLC temperature systems
Industrial automation
Equipment protection
Thermal process monitoring
| Specification | Details |
|---|---|
| Product Model | TS2056 |
| Type Code | TS-200KCID10-...../US/ |
| Product Type | Cabled temperature sensor |
| Measuring Element | Pt 100 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...250 °C |
| Process Connection | Clamp adapter Ø10 mm |
| Probe Diameter | 10 mm |
| Installation Length | 42 mm |
| Media | Liquids and gases |
| Minimum Installation Depth | Model-specific |
| Cable Length | 2 m |
| Cable Material | PTFE |
| Connector | M12 |
| Connector Coding | A |
| Housing Material | Stainless steel |
| Wetted Material | Stainless steel |
| Output Principle | Passive RTD |
| Evaluation | External |
| Protection | IP67 |
| Protection Class | III |
| Installation Type | Process mounted |
| Pack Quantity | 1 pcs |
| Application | Industrial temperature measurement |
