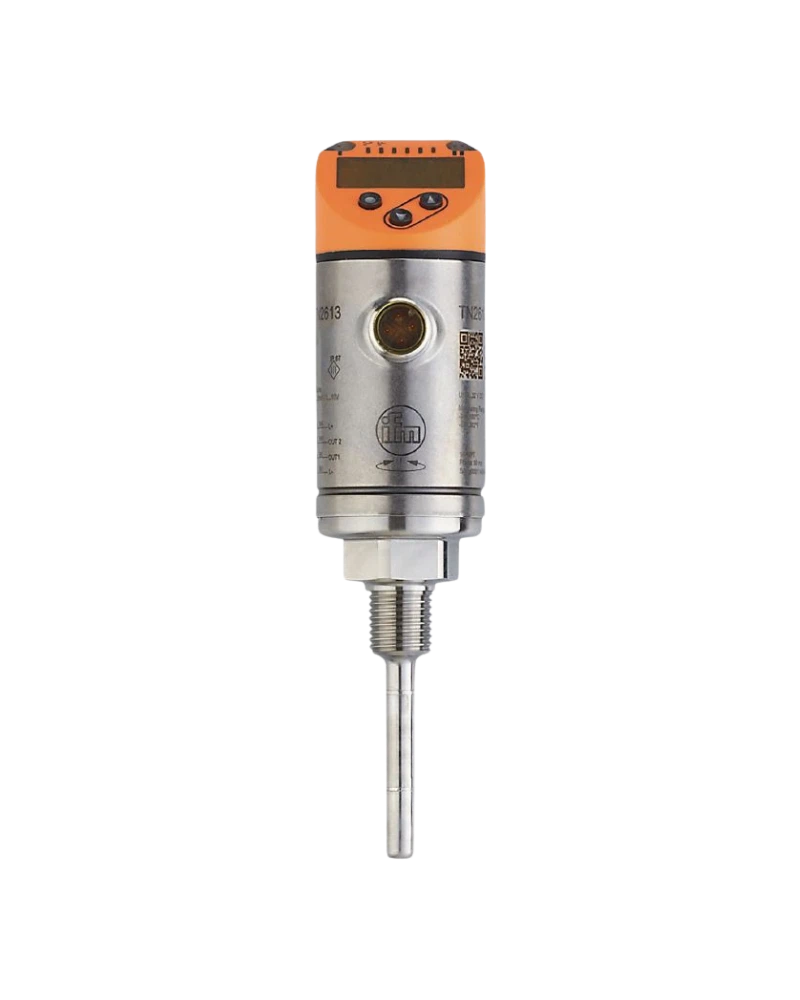

The TN2613 is a high-pressure temperature sensor with integrated display and a 50 mm installation length. It uses a Pt 1000 Class A sensing element for accurate industrial temperature measurement. The 1/4-inch NPT external thread provides secure process installation. Two digital outputs, one analogue output and IO-Link offer flexible automation and monitoring functions. The sensor is rated for liquids and gases and provides a 400 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides stable and repeatable temperature measurement. The -50...150 °C measuring range covers many industrial applications. The 50 mm installation length allows deeper process immersion. Two digital outputs support temperature-limit switching. The analogue and IO-Link interfaces provide additional process-data options.
The four-digit red/green display provides clear process-value visibility. LEDs show switching status for rapid diagnostics. Three buttons provide local configuration. The upper housing can rotate through 345 degrees. IO-Link allows remote configuration and device diagnostics.
The 1/4-inch NPT external thread provides a robust process connection. The sensor supports up to 400 bar pressure within specified operating conditions. The 50 mm installation length provides practical immersion into process media. M12 connectivity provides reliable electrical integration. The sensor is suitable for demanding hydraulic and industrial systems.
Pt 1000 Class A
50 mm installation length
1/4" NPT external thread
-50...150 °C
400 bar pressure rating
Two digital outputs
One analogue output
IO-Link
4-digit red/green display
M12 connector
Gold-plated contacts
18...32 V DC
Integrated watchdog
PNP/NPN outputs
High-pressure design
Hydraulic equipment
High-pressure fluid systems
Cooling systems
Heating systems
Pumps
Compressors
Machine tools
Process piping
Liquid temperature monitoring
Gas monitoring
PLC temperature control
Process alarms
Machine protection
Industrial automation
Equipment monitoring
| Specification | Details |
|---|---|
| Product Model | TN2613 |
| Type Code | TN-050KLBN14-MFRKG/US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 50 mm |
| Process Connection | 1/4" NPT external thread |
| Probe Diameter | Approx. 6 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Output Design | PNP/NPN |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Resolution | 0.1 °C |
| Programming | 3 buttons |
| Housing Rotation | 345° |
| Connector | M12 |
| Contacts | Gold-plated |
| Protection Class | III |
| Reverse Polarity | Yes |
| Watchdog | Integrated |
