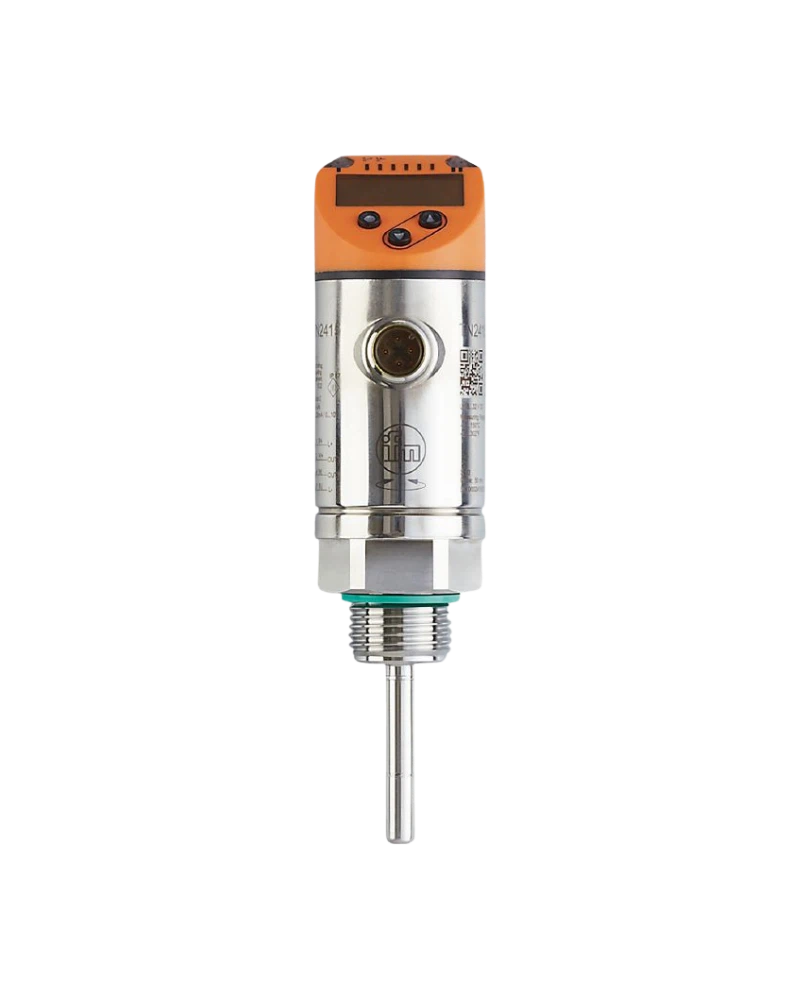

The TN2435 is an extended 100 mm temperature sensor with an integrated display for industrial process monitoring. Its Pt 1000 Class A sensing element provides accurate and repeatable temperature measurement. The G 1/2 external thread provides secure process installation. The longer probe provides deeper immersion into process pipes and vessels. Integrated switching, analogue and IO-Link functions provide flexible process automation capabilities.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 100 mm installation length provides useful immersion in larger process systems. It allows the sensing element to be positioned deeper within tanks and pipelines. The stainless process connection supports secure mechanical installation. The compact electronics housing provides convenient local display access. The design is suitable for continuous industrial temperature measurement.
The Pt 1000 Class A element provides stable resistance-based temperature measurement. The -50...150 °C range covers a broad industrial temperature spectrum. Digital outputs can be configured for process alarms and control. The analogue output provides continuous temperature information. IO-Link enables remote setup and diagnostics.
The four-digit red/green display provides clear process-value indication. LEDs provide visual switching-status feedback. Three buttons support local programming. The display housing can be rotated for better visibility. M12 connectivity provides reliable PLC and automation integration.
Pt 1000 Class A
100 mm installation length
G 1/2 external thread
-50...150 °C
Two digital outputs
One analogue output
IO-Link
4-digit display
Red/green indication
M12 connector
Gold-plated contacts
300 bar pressure capability
Three-button operation
345° rotatable housing
Deep immersion
Process vessels
Storage tanks
Process pipelines
Cooling systems
Heating systems
Hydraulic equipment
Pumps
Compressors
Liquid monitoring
Gas monitoring
PLC control
Temperature alarms
Process automation
Thermal process control
Equipment protection
| Specification | Details |
|---|---|
| Product Model | TN2435 |
| Type Code | TN-100KLBM12-MFRKG/US/ /V |
| Measuring Element | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 100 mm |
| Process Connection | G 1/2 external thread |
| Probe Diameter | Approx. 6 mm |
| Media | Liquids and gases |
| Pressure Rating | 300 bar |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Resolution | 0.1 °C |
| Programming | 3 buttons |
| Housing Rotation | 345° |
| Connector | M12 |
| Contacts | Gold-plated |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 1 s |
