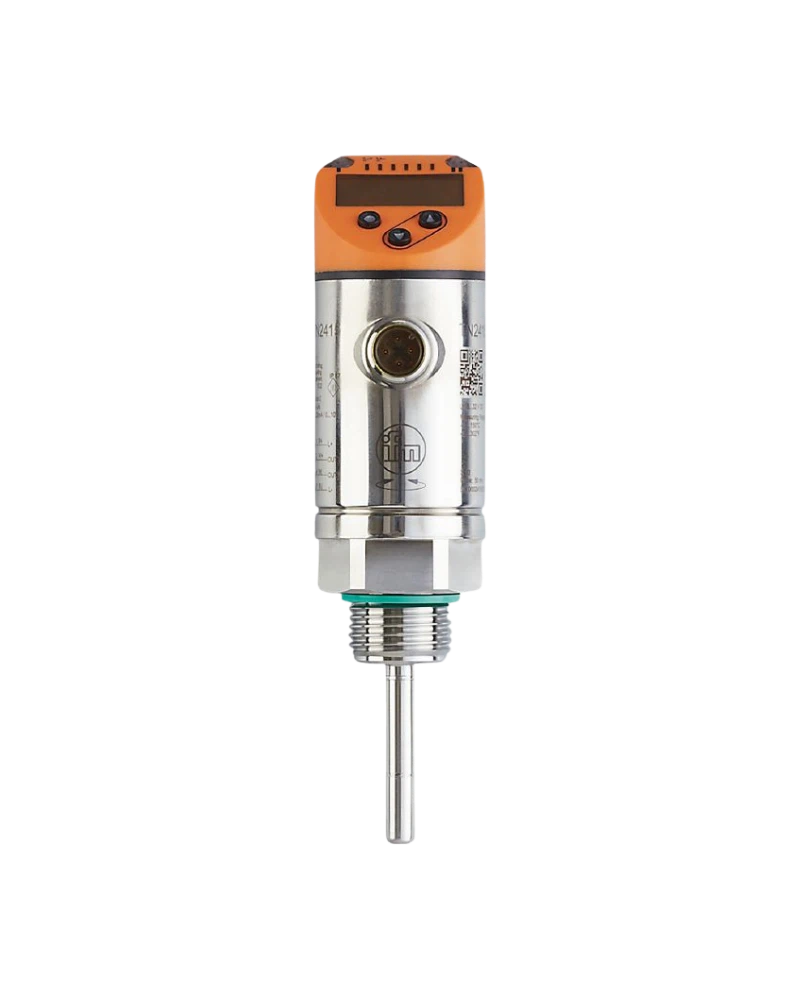

The TN2415 is a temperature sensor with display designed for industrial process monitoring. It uses a Pt 1000 Class A sensing element and provides a -50...150 °C measuring range. Its 50 mm installation length and G 1/2 external thread provide practical process integration. Two digital outputs, one analogue output and IO-Link support flexible control and communication. The integrated display provides clear local indication of process temperature and switching status.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides stable and repeatable temperature measurement. The 50 mm insertion length allows the sensing element to reach effectively into process media. The sensor is designed for liquids and gases. Its programmable outputs support temperature-limit monitoring. IO-Link provides remote access to measured values and parameters.
The four-digit red/green display makes the process temperature easy to read. LEDs indicate switching status for quick local diagnostics. Three buttons provide direct parameter adjustment. The display head can be rotated through 345 degrees. The combination of local operation and IO-Link provides flexible commissioning.
The G 1/2 external thread provides secure process installation. The 50 mm installation length suits piping and machinery applications. M12 connectivity supports reliable industrial wiring. Gold-plated contacts improve connection reliability. The sensor can be integrated into PLC and automation systems.
Pt 1000 Class A
50 mm installation length
G 1/2 external thread
-50...150 °C
Two digital outputs
One analogue output
IO-Link
4-digit red/green display
M12 connector
Gold-plated contacts
300 bar pressure rating
Three-button programming
345° rotatable housing
PNP/NPN outputs
Industrial automation ready
Hydraulic systems
Cooling systems
Heating systems
Process pipelines
Pumps
Compressors
Machine tools
Industrial machinery
Liquid monitoring
Gas monitoring
PLC temperature control
Temperature alarms
Process automation
Machine protection
Industrial monitoring
| Specification | Details |
|---|---|
| Product Model | TN2415 |
| Type Code | TN-050KLBM12-MFRKG/US/ /V |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 50 mm |
| Process Connection | G 1/2 external thread |
| Media | Liquids and gases |
| Pressure Rating | 300 bar |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Display Resolution | 0.1 °C |
| Programming | 3 buttons |
| Housing Rotation | 345° |
| Electrical Connection | M12 |
| Contacts | Gold-plated |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 1 s |
| Output Configuration | PNP/NPN |
