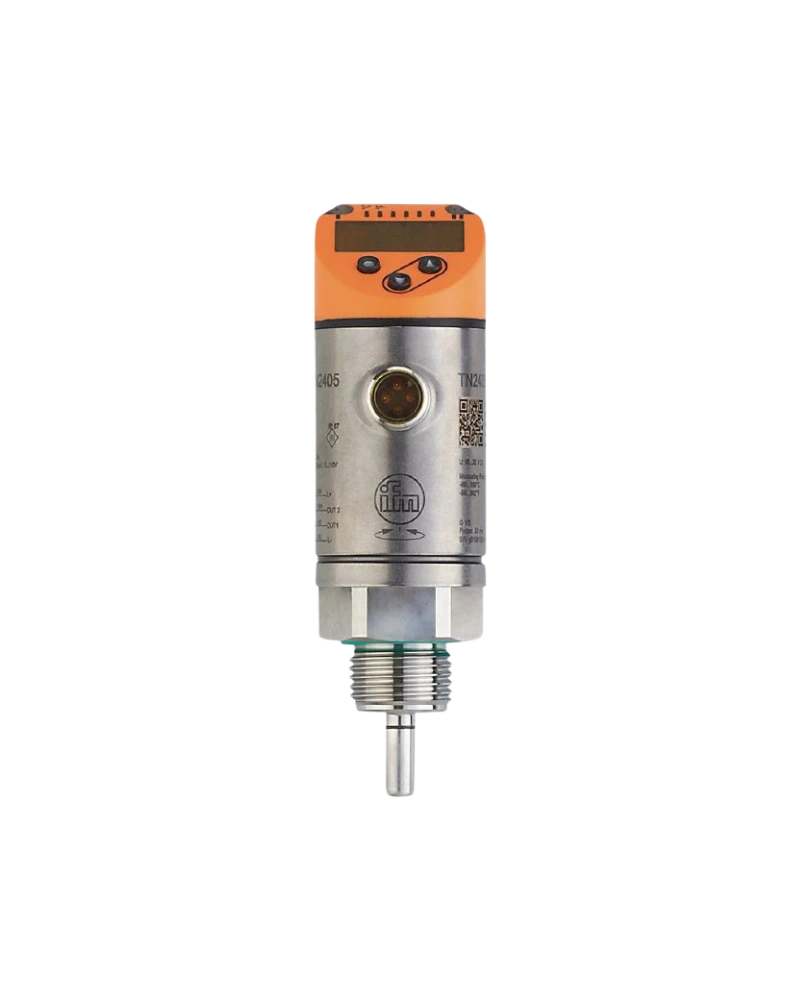

The TN2405 is a compact temperature sensor with integrated display and G 1/2 process connection. It uses a Pt 1000 Class A element for accurate industrial temperature measurement. The 30 mm installation length provides compact process immersion. Two digital outputs, one analogue output and IO-Link provide flexible automation functions. Its display and programmable parameters allow convenient local temperature monitoring and process control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The four-digit red/green display provides clear local temperature indication. LED indicators show switching status for quick process diagnostics. Three programming buttons simplify parameter adjustment. The upper housing can be rotated for improved viewing. IO-Link provides remote configuration and data access.
The Pt 1000 Class A sensing element provides reliable temperature measurement. The -50...150 °C range covers a broad selection of industrial processes. Two digital outputs support programmable switching functions. The analogue output supports continuous temperature transmission. IO-Link enables process-data communication and parameterisation.
The G 1/2 external thread provides secure installation in compatible process equipment. The 30 mm installation length is suitable for compact process systems. The M12 connector provides reliable industrial electrical connection. Gold-plated contacts support dependable signal transmission. The sensor is suitable for liquids and gases.
Pt 1000 Class A
30 mm installation length
G 1/2 external thread
-50...150 °C
Two digital outputs
One analogue output
IO-Link
Four-digit display
Red/green display
M12 connector
Gold-plated contacts
High pressure resistance
Three-button control
345° rotatable housing
PNP/NPN switching
Cooling circuits
Heating systems
Hydraulic machinery
Process pipelines
Pumps
Compressors
Machine tools
Industrial equipment
Liquid monitoring
Gas monitoring
Temperature control
PLC automation
Alarm systems
Process protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TN2405 |
| Type Code | TN-030KLBM12-MFRKG/US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 30 mm |
| Process Connection | G 1/2 external thread |
| Media | Liquids and gases |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Display Resolution | 0.1 °C |
| Programming | 3 buttons |
| Housing Rotation | 345° |
| Electrical Connection | M12 |
| Contacts | Gold-plated |
| Output Type | PNP/NPN configurable |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 1 s |
| Installation | Process mounted |
