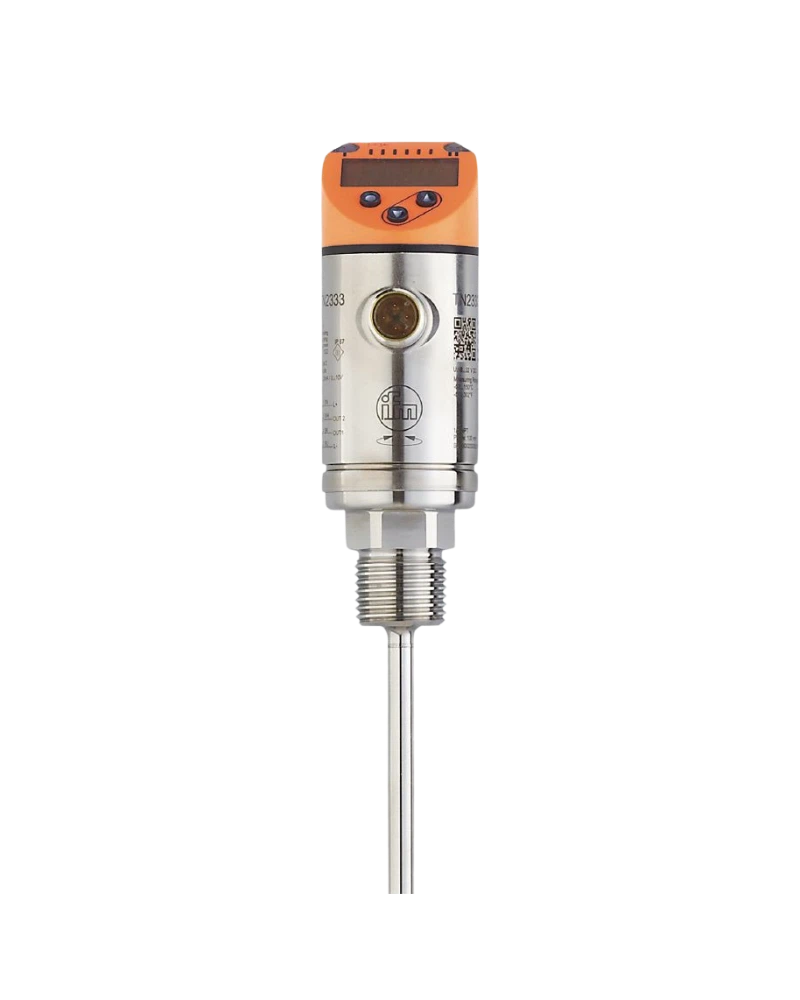

The TN2333 is an industrial temperature sensor with display and extended 100 mm installation length. It uses a Pt 1000 Class A measuring element for accurate process-temperature measurement. Its 1/2-inch NPT external thread provides secure installation in compatible process equipment. The integrated display, switching outputs, analogue output and IO-Link support both local and remote process monitoring. The extended probe is suitable for deeper immersion in tanks, vessels and pipelines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 100 mm installation length allows the sensing element to reach deeper into process media. This makes the TN2333 suitable for larger pipes and vessels. The 6 mm-class probe construction provides practical process installation. The threaded connection supports secure mounting. The robust housing is designed for industrial operating environments.
The Pt 1000 Class A element provides stable and repeatable temperature measurement. Its -50...150 °C range covers many industrial temperature processes. Two digital outputs provide programmable temperature-limit switching. The analogue output can transmit temperature to compatible control equipment. IO-Link enables remote parameterisation and process-data communication.
The four-digit red/green display provides direct process-value indication. LEDs provide clear output-status information. Three buttons allow local parameter adjustment. The display head can be rotated for better visibility. M12 connectivity supports integration into industrial automation systems.
Pt 1000 Class A
100 mm installation length
1/2" NPT external thread
-50...150 °C
Two digital outputs
One analogue output
IO-Link
4-digit red/green display
M12 connection
Gold-plated contacts
High-pressure construction
Three-button operation
Rotatable housing
PNP/NPN outputs
Process monitoring
Process vessels
Storage tanks
Process pipelines
Hydraulic systems
Cooling systems
Heating systems
Pumps
Compressors
Machine tools
Liquid monitoring
Gas monitoring
PLC temperature control
Temperature alarms
Process automation
Equipment protection
| Specification | Details |
|---|---|
| Product Model | TN2333 |
| Type Code | TN-100KLBN12-MFRKG/US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 100 mm |
| Process Connection | 1/2" NPT external thread |
| Probe Diameter | Approx. 6 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Display Resolution | 0.1 °C |
| Buttons | 3 |
| Housing Rotation | 345° |
| Electrical Connection | M12 |
| Contacts | Gold-plated |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 1 s |
