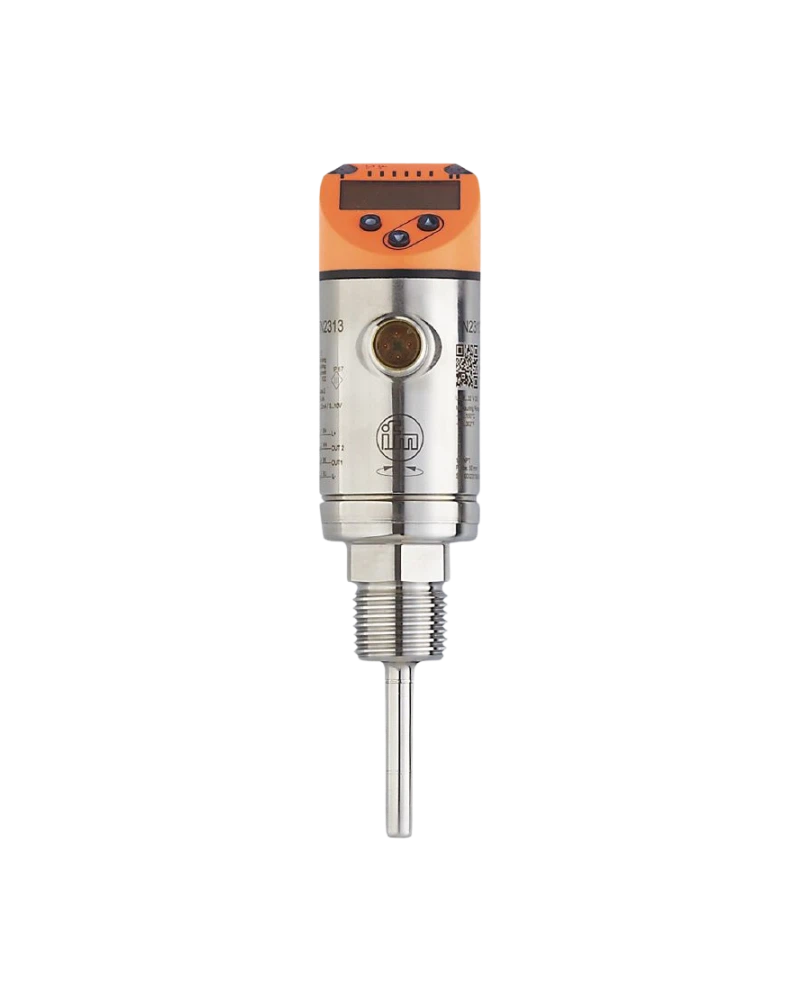

The TN2313 is a display-equipped temperature sensor designed for industrial process measurement. Its Pt 1000 Class A element provides accurate and repeatable temperature sensing. The 50 mm installation length provides deeper immersion while the 1/2-inch NPT connection supports secure process installation. Two digital outputs, one analogue output and IO-Link allow flexible process control. Its high-pressure construction makes it suitable for demanding liquid and gas applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The four-digit red/green display provides clear temperature indication directly at the process point. LED indicators provide visual switching-status feedback. Three programming buttons allow local setup without additional equipment. The display housing can be rotated for convenient viewing. IO-Link provides remote parameterisation and diagnostic access.
The Pt 1000 Class A element supports reliable measurement from -50 to 150 °C. The 50 mm probe provides useful immersion into pipes and process equipment. Digital outputs can be configured for temperature-limit switching. The analogue output supports continuous process-temperature transmission. IO-Link adds communication and configuration flexibility.
The 1/2-inch NPT external thread provides a robust threaded process connection. The 50 mm installation length suits a wide range of process equipment. M12 electrical connectivity simplifies automation integration. Gold-plated contacts support reliable electrical connection. The sensor is suitable for PLC-based temperature monitoring and machine control.
Pt 1000 Class A
50 mm probe length
1/2" NPT connection
-50...150 °C range
Two digital outputs
One analogue output
IO-Link
Red/green display
M12 connector
Gold-plated contacts
400 bar pressure capability
Three-button programming
Rotatable housing
PNP/NPN outputs
Industrial design
Hydraulic systems
Cooling equipment
Heating equipment
Process piping
Pumps
Compressors
Machine tools
Industrial machinery
Liquid temperature monitoring
Gas temperature monitoring
PLC control
Temperature alarms
Process automation
Equipment protection
Industrial monitoring
| Specification | Details |
|---|---|
| Product Model | TN2313 |
| Type Code | TN-050KLBN12-MFRKG/US/ |
| Sensor | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Installation Length | 50 mm |
| Process Connection | 1/2" NPT external thread |
| Probe Diameter | Approx. 6 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Display Type | Alphanumeric |
| Electrical Connection | M12 |
| Contacts | Gold-plated |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 1 s |
| Housing | Rotatable display housing |
