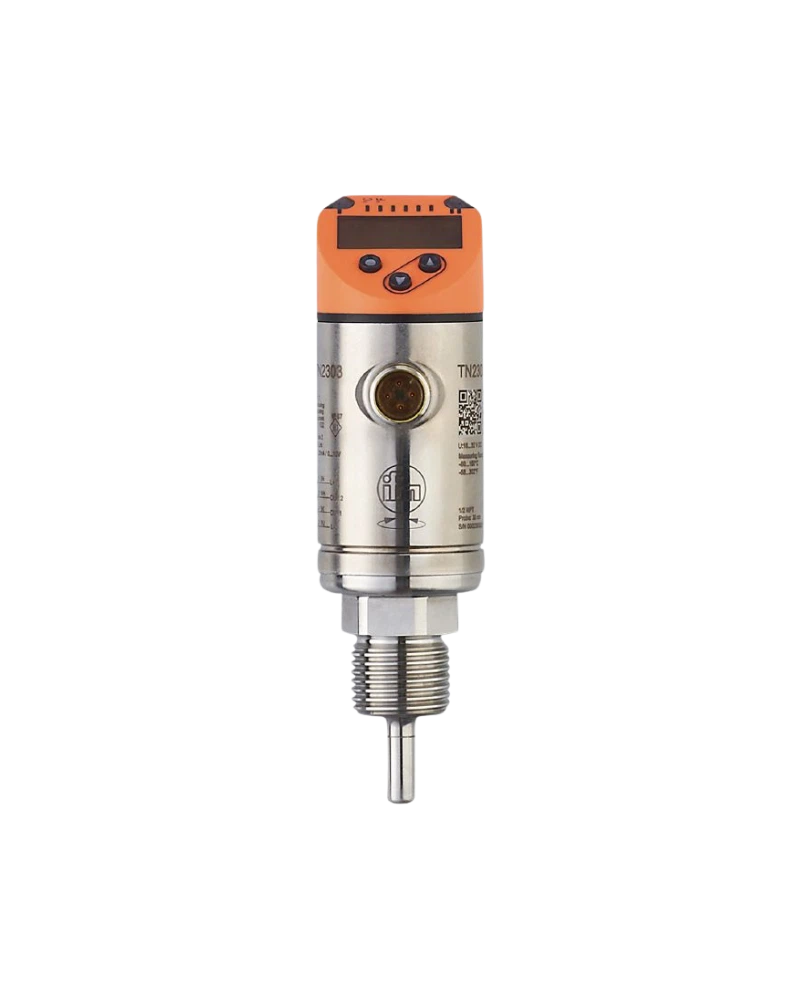

The TN2303 is an industrial temperature sensor with an integrated four-digit display for direct process monitoring. It uses a Pt 1000 Class A sensing element and supports a -50...150 °C measurement range. Its 30 mm installation length and 1/2-inch NPT external thread provide a practical solution for industrial piping and machinery. Two digital outputs, one analogue output and IO-Link provide flexible control and communication options. The sensor is designed for liquids and gases and offers high pressure resistance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The red/green four-digit display provides clear local indication of process temperature. LED indicators show switching status for quick identification of active outputs. Three programming buttons allow direct configuration at the sensor. The upper housing can be rotated to improve readability after installation. IO-Link provides remote configuration and diagnostics.
The Pt 1000 Class A element provides stable temperature measurement according to DIN EN 60751. The sensor supports a wide -50...150 °C measurement range. Two digital outputs can be configured for temperature-limit monitoring. An analogue output can provide a continuous temperature signal. IO-Link allows process-data access and parameter management.
The 1/2-inch NPT external thread provides a robust process connection for compatible US-style threaded installations. The 30 mm installation length provides compact process immersion. The M12 connector provides reliable electrical connection. Gold-plated contacts improve connection reliability in industrial environments. The high-pressure construction makes the sensor suitable for demanding fluid systems.
Pt 1000 Class A
30 mm installation length
1/2" NPT external thread
-50...150 °C
Two digital outputs
One analogue output
IO-Link
Four-digit red/green display
M12 connector
Gold-plated contacts
High pressure resistance
Three-button operation
Rotatable display head
PNP/NPN switching
Industrial process construction
Hydraulic machinery
Process piping
Cooling circuits
Heating systems
Pumps
Compressors
Machine tools
Industrial automation
Liquid monitoring
Gas monitoring
Temperature control
Alarm systems
PLC integration
Process protection
Machine monitoring
| Specification | Details |
|---|---|
| Product Model | TN2303 |
| Type Code | TN-030KLBN12-MFRKG/US/ |
| Product Type | Temperature sensor with display |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Fahrenheit Range | -58...302 °F |
| Installation Length | 30 mm |
| Process Connection | 1/2" NPT external thread |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Digital Outputs | 2 |
| Analogue Outputs | 1 |
| Communication | IO-Link |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Display | 4-digit red/green |
| Display Resolution | 0.1 °C |
| Electrical Connection | M12 |
| Contacts | Gold-plated |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 1 s |
| Installation | Process mounted |
