The TM5601 is a compact IFM Pt 1000 Class A temperature sensor designed for high-pressure industrial temperature measurement. Its 25 mm installation length is suitable for compact process installations. The 1/4-inch NPT external thread provides secure mounting in compatible process equipment. The passive RTD signal is designed for connection to an external temperature evaluation unit. Its stainless-steel construction and 400 bar pressure rating make it suitable for demanding hydraulic and process applications. IFM lists the model with a 25 mm installation length, -40...150 °C range and 400 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

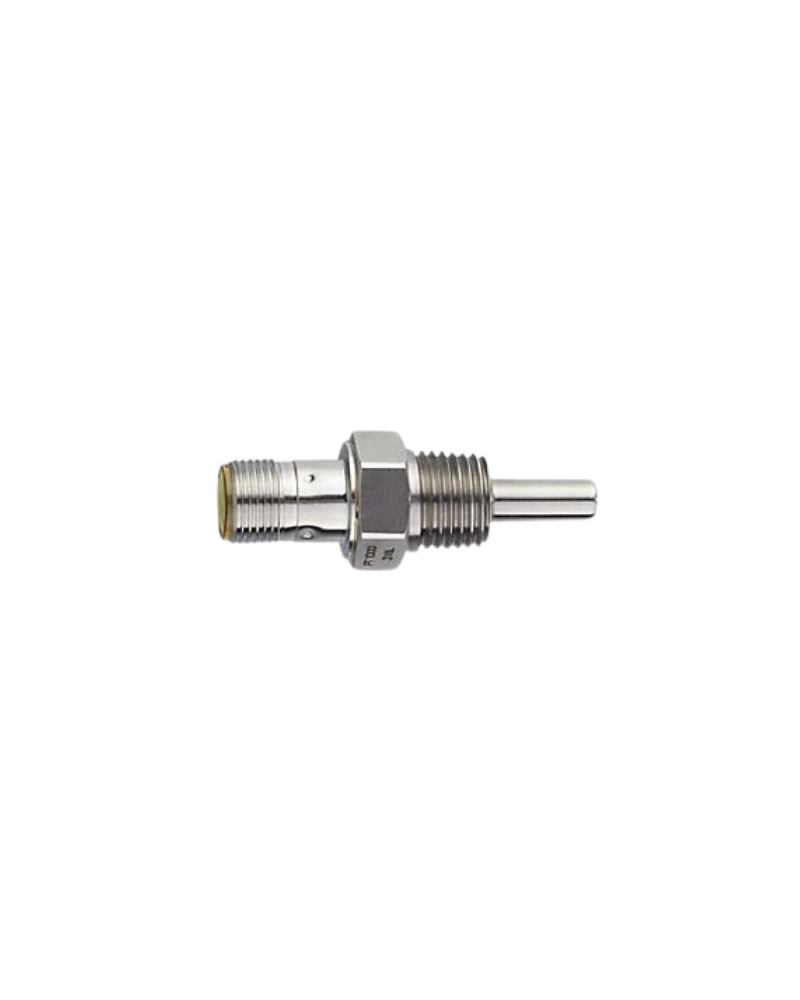

The TM5601 uses a compact cylindrical stainless-steel design. Its 25 mm sensing length is useful where available installation depth is limited. The 1/4-inch NPT thread supports robust threaded process installation. The M12 connector provides reliable electrical connection. Its compact design is suitable for machinery and hydraulic equipment.
The Pt 1000 Class A element provides stable resistance-based temperature measurement. The -40...150 °C range supports many industrial applications. The short sensing length enables compact installation. The sensor provides a passive RTD signal to external evaluation electronics. Its high-pressure construction supports demanding fluid systems.
The 1/4-inch NPT external thread provides a secure connection to compatible process equipment. The M12 connector simplifies connection to RTD evaluation electronics. Gold-plated contacts support reliable electrical transmission. The sensor can be integrated with PLC temperature modules and controllers. Its passive design allows centralised signal processing.
Pt 1000 Class A
25 mm installation length
1/4" NPT external thread
-40...150 °C
400 bar pressure rating
Passive RTD output
Stainless-steel construction
M12 A-coded connector
Gold-plated contacts
Compact probe
High pressure capability
IP68 / IP69K
External evaluation
Liquid and gas measurement
Industrial design
Hydraulic systems
Cooling equipment
Heating equipment
Pumps
Compressors
Machine tools
Process skids
Industrial machinery
Fluid temperature monitoring
Liquid measurement
Gas measurement
PLC RTD inputs
Temperature controllers
Machine protection
Industrial automation
| Specification | Details |
|---|---|
| Product Model | TM5601 |
| Type Code | TM-025KCBN14- /US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 25 mm |
| Process Connection | 1/4" NPT external thread |
| Output | Passive RTD |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Probe Diameter | Approx. 6 mm |
| Accuracy | Model-specific |
| Response | Model-specific |
| Housing | Cylindrical |
| Material | Stainless steel |
| Wetted Material | Stainless steel |
| Connector | M12 A-coded |
| Contacts | Gold-plated |
| Protection Class | III |
| Protection | IP68 / IP69K |
| Evaluation | External |
| Sensor Principle | RTD |
| Installation | Process mounted |
| Application | High-pressure industrial sensing |
| Electrical Interface | M12 |
