The TM5411 is an IFM Pt 1000 Class A temperature sensor designed for reliable process-temperature measurement. Its 50 mm installation length provides practical immersion for industrial equipment and piping. The G 1/2 external thread enables secure process installation. The sensor provides a passive RTD output for connection to an external evaluation unit. Its 160 bar pressure rating, IP68/IP69K protection and stainless-steel construction make it suitable for demanding industrial applications. IFM specifies -40...150 °C, 160 bar pressure rating and 1/3 second T05/T09 response for this model.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

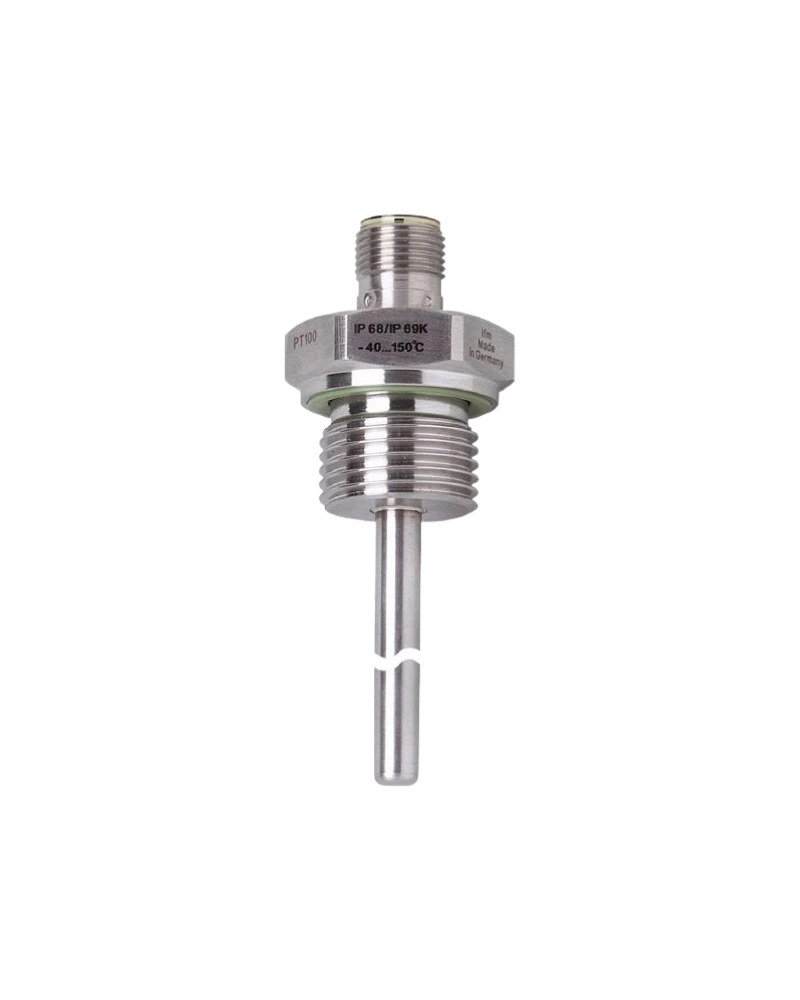

The TM5411 uses a cylindrical stainless-steel housing with a 50 mm probe. Its 6 mm probe diameter provides practical installation flexibility. The G 1/2 external thread supports secure mounting. Wetted stainless-steel materials with suitable sealing support process applications. The M12 connector uses gold-plated contacts.
The Pt 1000 Class A element provides reliable resistance-based measurement. The -40...150 °C range supports many industrial processes. The 50 mm installation length provides practical immersion. Its dynamic response is approximately 1/3 seconds for T05/T09. The sensor connects to an external evaluation unit for temperature conversion.
The G 1/2 external thread provides a robust process connection. The M12 A-coded interface supports connection to evaluation electronics. Gold-plated contacts help maintain electrical reliability. The passive sensor design allows the evaluation electronics to be installed remotely. This makes the TM5411 suitable for PLC and temperature-control applications.
Pt 1000 Class A
50 mm installation length
G 1/2 external thread
-40...150 °C
160 bar pressure rating
6 mm probe
Passive RTD output
Stainless steel 316L
M12 connector
Gold-plated contacts
IP68 / IP69K
1 / 3 s response
Liquid and gas applications
External evaluation
Industrial design
Hydraulic systems
Cooling circuits
Heating systems
Pumps
Compressors
Process piping
Machine tools
Process skids
Liquid temperature monitoring
Gas temperature monitoring
PLC temperature inputs
Temperature controllers
Machine protection
Thermal monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product Model | TM5411 |
| Type Code | TM-050KCBR12- /US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 50 mm |
| Probe Length | 36 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/2 external thread |
| Output | Passive RTD |
| Media | Liquids and gases |
| Pressure Rating | 160 bar |
| Minimum Installation Depth | 15 mm |
| Accuracy | ±(0.15 K + 0.002 × |
| Response T05/T09 | 1 / 3 s |
| Housing | Cylindrical |
| Material | 316L / 1.4404 |
| Wetted Material | Stainless steel / sealing material |
| Electrical Connection | M12 A-coded |
| Contacts | Gold-plated |
| Protection Class | III |
| Protection | IP68 / IP69K |
| Ambient Temperature | -25...80 °C |
| Storage Temperature | -40...100 °C |
| Evaluation | External |
