The TM5331 is an IFM Pt 1000 Class A temperature sensor designed for reliable process-temperature monitoring. Its 100 mm installation length provides useful immersion in process piping and equipment. The 1/2-inch NPT external thread supports installation in compatible industrial systems. The sensor provides a passive RTD signal for external evaluation and control. Stainless-steel construction, high pressure resistance and M12 connectivity support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

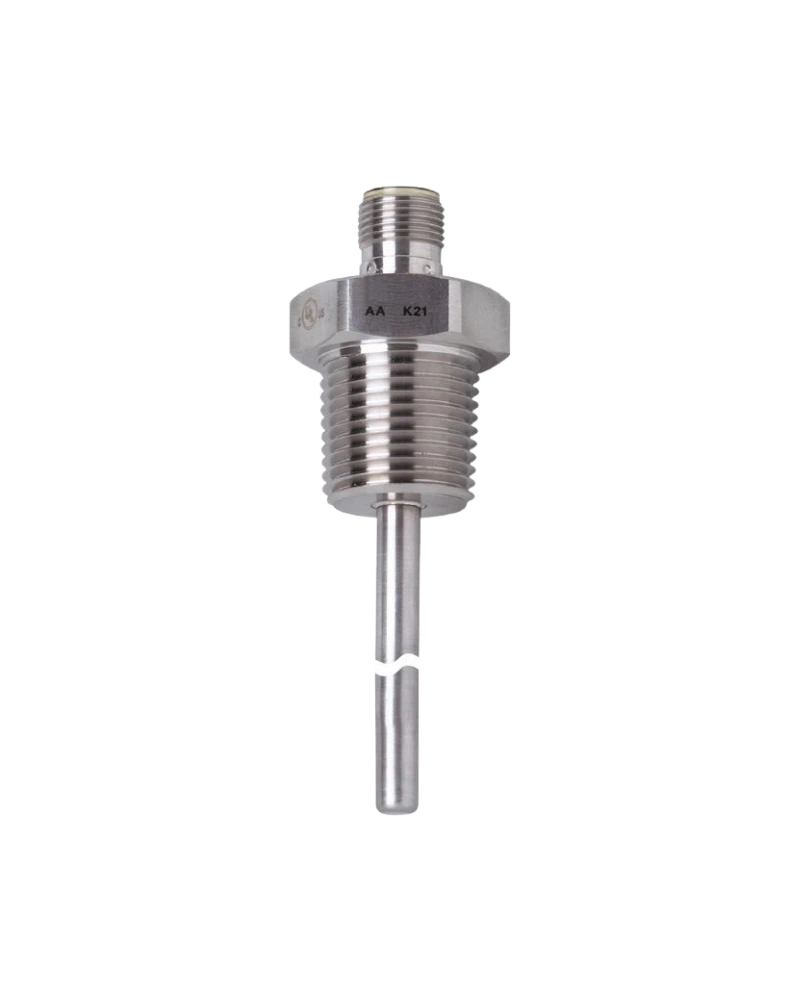

The TM5331 features a cylindrical stainless-steel housing with a 100 mm sensing length. The 6 mm probe provides practical process immersion. The 1/2-inch NPT connection supports secure threaded installation. The M12 connector provides reliable electrical integration. Gold-plated contacts support stable signal transmission.
The Pt 1000 Class A element provides stable and repeatable temperature measurement. Its -40...150 °C range covers many industrial applications. The 100 mm installation length supports deeper process sensing. The passive RTD signal can be evaluated by compatible PLC modules or controllers. Fast response helps monitor process-temperature changes.
The 1/2-inch NPT external thread provides a robust process connection. Suitable adapters can be used where different installation arrangements are required. The M12 connector provides convenient connection to evaluation electronics. The passive architecture enables centralised signal processing. The sensor can be integrated into industrial temperature-monitoring systems.
Pt 1000 Class A
100 mm installation length
1/2" NPT external thread
6 mm probe
-40...150 °C
High pressure capability
Passive RTD output
Stainless steel
M12 A-coded connector
Gold-plated contacts
IP68 / IP69K
Fast response
External evaluation
Liquid and gas measurement
Industrial construction
Hydraulic systems
Process piping
Cooling systems
Heating systems
Pumps
Compressors
Process skids
Industrial machinery
Liquid temperature measurement
Gas temperature measurement
PLC RTD systems
Temperature controllers
Machine monitoring
Thermal process control
Industrial automation
| Specification | Details |
|---|---|
| Product Model | TM5331 |
| Type Code | TM-100KCBN12- /US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 100 mm |
| Probe Diameter | 6 mm |
| Process Connection | 1/2" NPT external thread |
| Output | Passive RTD |
| Media | Liquids and gases |
| Pressure Rating | Model-specific high-pressure design |
| Minimum Installation Depth | Model-specific |
| Accuracy | ±(0.15 K + 0.002 × |
| Response | Model-dependent |
| Housing | Cylindrical |
| Material | Stainless steel |
| Wetted Material | Stainless steel |
| Electrical Connection | M12 A-coded |
| Contacts | Gold-plated |
| Protection Class | III |
| Protection | IP68 / IP69K |
| Evaluation | External |
| Sensor Principle | RTD |
| Installation | Process mounted |
| Application | Industrial temperature measurement |
