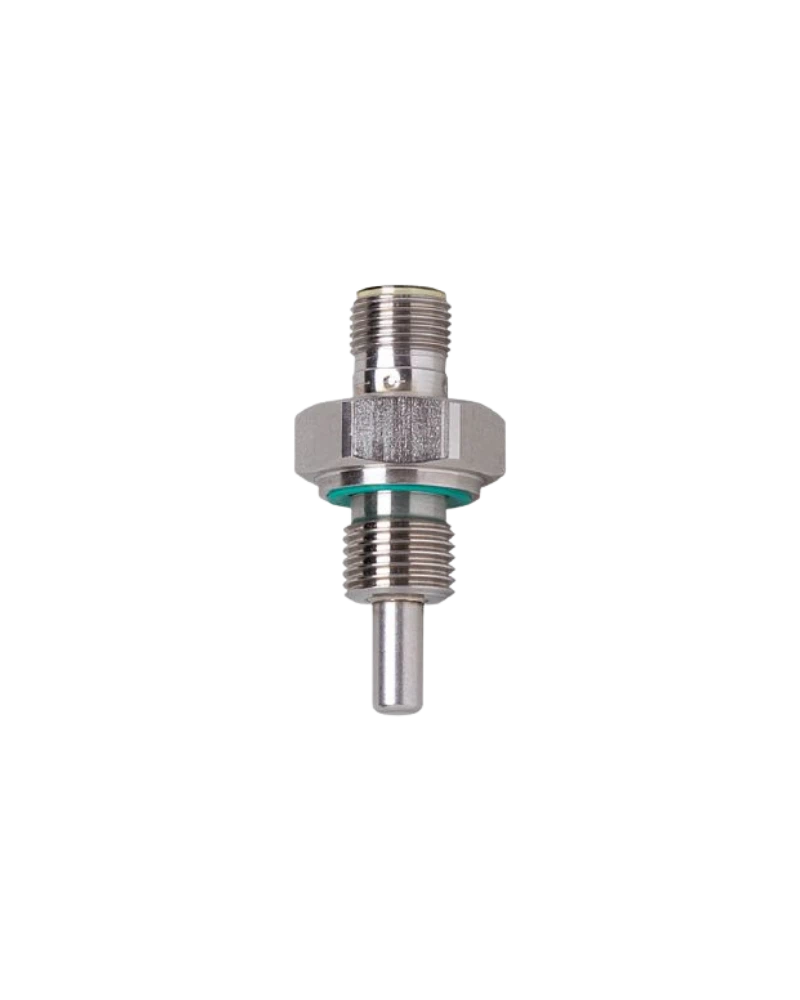

The TM5101 is a compact Pt1000 temperature sensor designed for industrial temperature measurement. It uses a G 1/4 external threaded process connection and a 25 mm installation length. The Class A Pt1000 element provides accurate measurement from -40 to 150 °C. Its stainless-steel construction, FKM wetted sealing material and IP68/IP69K protection support demanding applications. The M12 connector provides convenient electrical integration with compatible control and evaluation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM5101 is designed for compact temperature sensing in industrial equipment. Its Pt1000 element provides high-resolution resistance-based temperature measurement. The 25 mm installation length is suitable for compact process connections. The G 1/4 thread supports direct installation into compatible fittings. Its robust construction supports continuous industrial service.
The sensor provides a -40 to 150 °C measuring range. The Pt1000 Class A element follows DIN EN 60751. The short probe provides rapid response to process temperature changes. Its T05/T09 response is approximately 1/3 seconds. The sensor is suitable for liquids and gases.
The G 1/4 external thread provides a compact process connection. The 25 mm installation length is suitable for limited installation spaces. The M12 connector simplifies electrical installation. Gold-plated contacts support reliable signal transmission. Compatible evaluation equipment can be used for temperature monitoring.
The sensor has a pressure rating of 400 bar. Stainless-steel 316L construction provides strong mechanical durability. FKM is used in the wetted sealing construction. IP68/IP69K protection supports demanding industrial environments. Shock and vibration resistance support use in machinery and process equipment.
The M12 connection makes sensor replacement straightforward. The threaded process connection should be inspected for correct tightening and sealing. The FKM sealing component should be checked during scheduled maintenance. Electrical contacts should remain clean and secure. Correct process mounting supports stable temperature measurement.
Pt1000 Class A
-40...150 °C range
25 mm installation length
G 1/4 external thread
400 bar pressure rating
6 mm probe
316L stainless steel
FKM wetted sealing material
IP68/IP69K
M12 connector
Gold-plated contacts
T05/T09 response 1/3 seconds
Industrial machinery
Factory automation
Hydraulic systems
Process equipment
Pumps and compressors
Liquid temperature monitoring
Gas temperature monitoring
Mobile machinery
Thermal control
Equipment monitoring
Machine automation
Process instrumentation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TM5101 |
| 2 | Product Family | Industrial RTD Sensors |
| 3 | Product Type | Screw-in temperature sensor |
| 4 | Model Designation | TM-025KCBR14- /US/ |
| 5 | Measuring Element | 1 x Pt1000 |
| 6 | Sensor Class | Class A |
| 7 | Measuring Range | -40...150 °C |
| 8 | Fahrenheit Range | -40...302 °F |
| 9 | Process Connection | G 1/4 external thread |
| 10 | Installation Length | 25 mm |
| 11 | Probe Length | 12 mm |
| 12 | Probe Diameter | 6 mm |
| 13 | Media | Liquids and gases |
| 14 | Pressure Rating | 400 bar |
| 15 | Minimum Installation Depth | 15 mm |
| 16 | Accuracy | ±(0.15 K + 0.002 × |
| 17 | Dynamic Response | 1 / 3 s |
| 18 | Ambient Temperature | -25...80 °C |
| 19 | Storage Temperature | -40...100 °C |
| 20 | Protection Rating | IP68 / IP69K |
| 21 | Protection Class | III |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Wetted Material | Stainless steel 316L / FKM |
| 24 | Electrical Connection | 1 x M12, A-coded |
| 25 | Connector Contacts | Gold-plated |
