The TM5101 is a compact IFM Pt 1000 Class A temperature sensor designed for industrial process measurement. Its 25 mm installation length provides a compact solution where insertion space is limited. The G 1/4 external thread enables direct installation into compatible process equipment. Its passive RTD signal is designed for connection to an external evaluation unit. The stainless-steel construction and high pressure capability make it suitable for demanding liquid and gas applications. IFM specifies -40...150 °C, 25 mm installation length and 400 bar pressure rating for this model.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

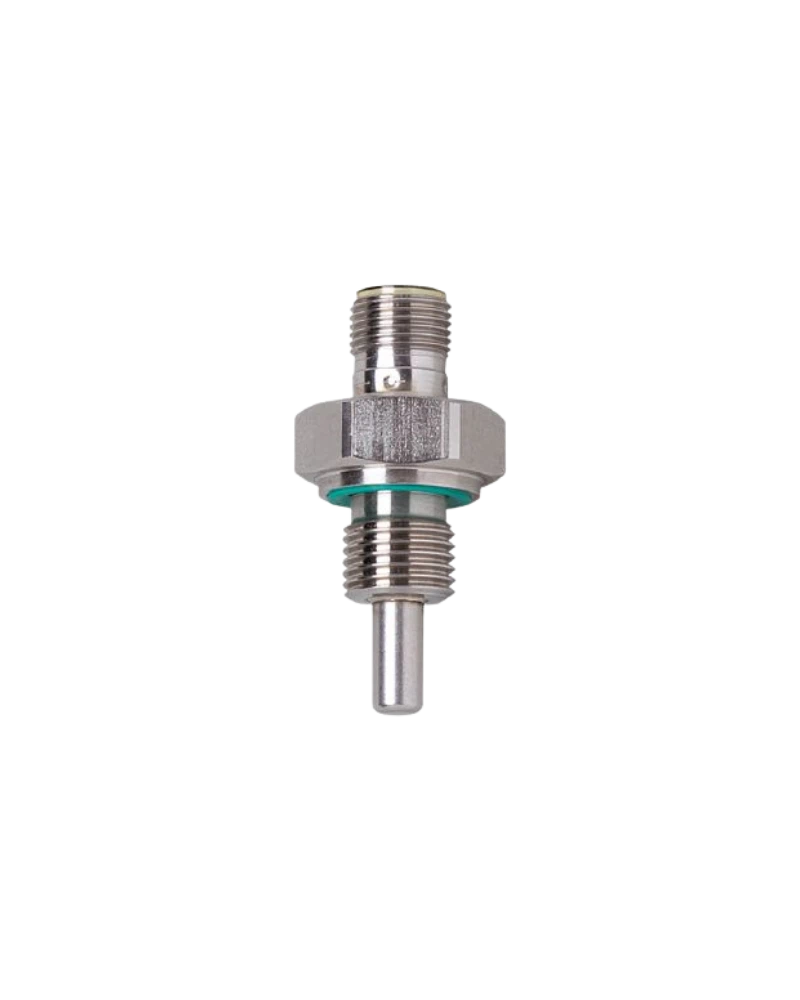

The TM5101 features a compact cylindrical stainless-steel construction. Its 25 mm sensing length is suitable for short-depth installations. The G 1/4 external thread provides a secure process connection. The M12 connector provides reliable connection to evaluation electronics. Gold-plated contacts support dependable electrical performance.
The Pt 1000 Class A element provides stable and repeatable temperature measurement. The -40...150 °C range supports many industrial processes. Its compact probe provides fast thermal response. The sensor is suitable for liquids and gases. External electronics are used to evaluate the resistance signal.
The G 1/4 connection provides compact process installation. Its high pressure capability makes it suitable for demanding fluid applications within specified limits. The M12 connector provides a practical interface to external RTD electronics. The passive design allows centralised temperature evaluation. It can be integrated into PLC and industrial monitoring systems.
Pt 1000 Class A
25 mm installation length
G 1/4 external thread
-40...150 °C
400 bar pressure rating
Passive RTD output
6 mm probe
M12 A-coded connector
Gold-plated contacts
Stainless-steel construction
Fast response
IP68 / IP69K
Liquid and gas measurement
External evaluation
Compact design
Hydraulic systems
Cooling systems
Heating systems
Pumps
Compressors
Machine tools
Process skids
Industrial machinery
Liquid temperature monitoring
Gas temperature monitoring
PLC RTD inputs
Temperature controllers
Machine protection
Thermal monitoring
Process automation
| Specification | Details |
|---|---|
| Product Model | TM5101 |
| Type Code | TM-025KCBR14- /US/ |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 25 mm |
| Probe Length | 12 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/4 external thread |
| Output | Passive RTD |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Accuracy | ±(0.15 K + 0.002 × |
| Response | Model-dependent |
| Housing | Cylindrical |
| Material | Stainless steel |
| Wetted Material | Stainless steel |
| Electrical Connection | M12 A-coded |
| Contacts | Gold-plated |
| Protection Class | III |
| Protection | IP68 / IP69K |
| Evaluation | External |
| Sensor Principle | RTD |
| Installation | Process mounted |
| Application | Industrial temperature sensing |
