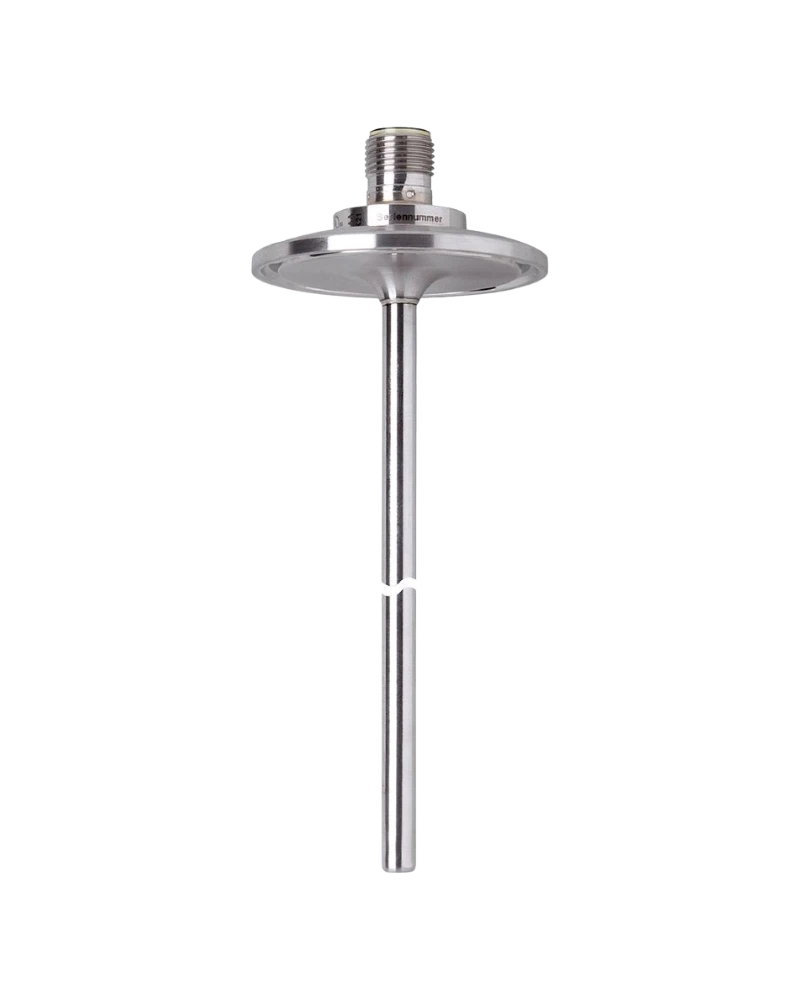

The TM4941 is an IFM hygienic temperature sensor designed for deeper process-temperature measurement. Its 150 mm installation length provides suitable immersion in larger tanks, vessels and sanitary process lines. The DN50 clamp connection supports hygienic installation in compatible process piping. A Pt 100 Class A sensing element provides stable and repeatable measurement. The passive RTD output connects to an external evaluation system for process monitoring and temperature control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TM4941 uses stainless-steel 316L construction for demanding hygienic applications. Its 150 mm probe provides deeper process immersion. The DN50 clamp connection supports secure sanitary installation. Electropolished wetted surfaces support cleanability. The M12 connector provides a reliable electrical interface to external evaluation equipment.
The Pt 100 Class A element provides reliable temperature measurement. The -40...150 °C range supports a broad range of process applications. Its 150 mm sensing length is useful for larger process vessels. The sensor provides a passive resistance signal to an evaluation unit. Fast response characteristics support monitoring of changing process temperatures.
The DN50 clamp connection supports practical hygienic process integration. Stainless-steel construction provides durability and cleanability. The M12 interface supports connection to RTD evaluation electronics. Gold-plated contacts help maintain electrical reliability. The sensor is suitable for PLC and industrial temperature-control systems.
Pt 100 Class A
150 mm installation length
DN50 clamp
316L stainless steel
Electropolished wetted surfaces
Ra <0.8 µm
-40...150 °C
Passive RTD output
M12 A-coded connector
Gold-plated contacts
25 bar pressure rating
IP68 / IP69K
Fast response
Hygienic construction
External evaluation
Food processing
Beverage production
Dairy plants
Brewing systems
Process tanks
Storage vessels
Sanitary pipelines
CIP systems
Filling machinery
Liquid monitoring
Temperature control
PLC RTD systems
Hygienic automation
Thermal processing
Industrial monitoring
| Specification | Details |
|---|---|
| Product Model | TM4941 |
| Type Code | TM-150KFEC02- /US/ |
| Sensor | Pt 100 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -40...150 °C |
| Installation Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp DN50 |
| Standard | DIN 32676 / ISO 2852 |
| Application | Hygienic systems |
| Media | Liquids and gases |
| Pressure Rating | 25 bar |
| Minimum Installation Depth | 15 mm |
| Accuracy | ±(0.15 K + 0.002 × |
| Response T05/T09 | 1 / 3 s |
| Output | Passive RTD |
| Housing | Cylindrical |
| Material | 316L / 1.4404 |
| Wetted Surface | Electropolished |
| Surface Roughness | Ra <0.8 µm |
| Connector | M12 A-coded |
| Contacts | Gold-plated |
| Protection | IP68 / IP69K |
| Protection Class | III |
| Evaluation | External |
